DMX to PWM Led Rgb Decoder

DMX to PWM Led Rgb Decoder thumbnail-1
DMX to PWM Led Rgb Decoder photo-1
US$ 28 - 32 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Input Voltage(V):
DC12V-24V
Lamp Power:
290W(12V)/580W(24V)
Working Temperature(℃):
-20, 45
Contact Supplier Request Quote Chat Now
Shenzhen G&G Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Input Voltage(V) DC12V-24V
Lamp Power 290W(12V)/580W(24V)
Working Temperature(℃) -20, 45
Working Lifetime(Hour) 50000
Certification CE, EMC
Place of Origin Guangdong, China
Brand Name YM
Model Number YM-BC804 RGBW

Specifications

DMX to PWM led rgb decoder,
Input siginal: DMX512,
Output: RGBW 6A/ch *4,
Power: 580W max,
CE & Rohs

DMX to PWM led rgb decoder ,



Introduction:

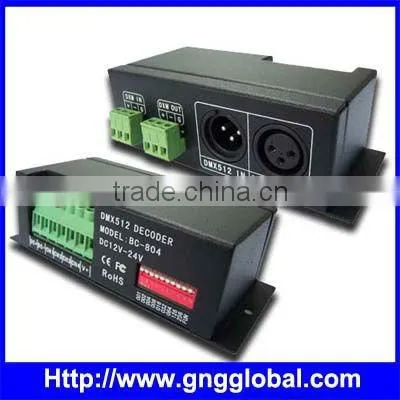

YM-BC804 RGBW DMX decoding driver works to convert universal DMX512/1990 digital signal to PWM signal, which controlled by DMX512 console, with 256 levels grey scale output per channel. Realize 0-100% brightness or various changing effect. And can control single color, RGB, RGBW LED lights. Adopting unique programming technology, Creating exclamatory, perfect color fade & smooth effect, simultaneously let LED color more affluent.



It can drive led module, led strip etc.

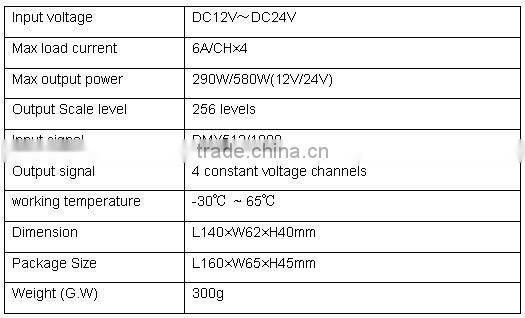

Specification and Parameters:



DMX to PWM led rgb decoder



Features:

1. 4 output channels, can control single color, RGB, RGBW led light

2. 0-100% brightness, 256-level brightness control;

3. Input standard DMX512 protocol, Address can be set by DIP.

4. Input voltage is DC12V~DC24V,

5. Decoder comes with manual dimming, 10 testing modes, 8 speeds;

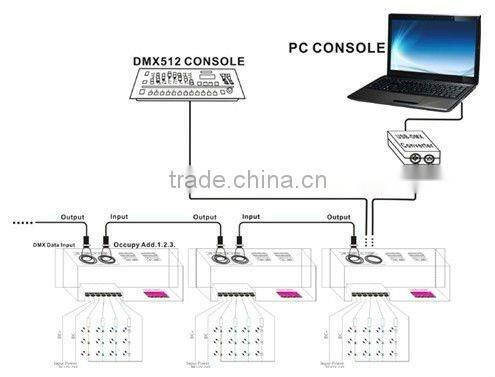

Conjunction:



DMX to PWM led rgb decoder
