Help CenterRGB 3channel Dmx 12V Led Driver 700mA
Related Products
-
RGB 3channel Dmx 12V Led Driver 350mAUS$ 1 - 11MOQ: 500 Pieces -
RGB 3channel Dmx Led Driver 350mAUS$ 1 - 11MOQ: 500 Pieces
-
Constant Current Dmx Decoder;dmx512 Led DecoderUS$ 1 - 6MOQ: 100 Pieces
-
RGB 3 Channel Dmx 512 Pwm Dimmable Led DriverUS$ 1 - 11MOQ: 500 Pieces
-
RGBW Led Dmx Decoder 4 ChannelsUS$ 1 - 6MOQ: 500 Pieces
Specifications
led driver 350mA,350 mA or 700mA
Input voltage: DC9V-24V
Output:constant current PWM*3Channels
dmx 512 decoder, RGB 3channel DMX512 decoder and constant current dmx dimmer, led driver 350mA,
Introduction:
YM-HDA18 is a Constant current address DMX512 Decoder for RGB high power led lights. By advantage of advanced coding technology, the unit is compatible with international DMX512/1990 standards, which decodes the international popular digital control signals into a PWM signal to drive RGB LED lights. Each channel can be controlled with 256 level gray-scales.
Specification and Parameter:
Grey Scale 256 levels
Input voltage DC9V-24V
Output Current 350 mA or 700mA/Channel*3(all positive)
Output Power 36W max
Signal input DMX512/1990
Signal Output constant current PWM*3Channels
Driving LED number 1-12pcs /channel
Consumption <1W
PCB Size 80*25mm
Features:
1. Perfectly compatible with international DMX512/1990 standards.
2. Differential signal transmission, support 3 mode of data transmission:
3.Display effects:
If connected to DMX512 led controller or DMX512 console, the effects will follow the DMX512 led controller or DMX512 console, and change color per their commands.
If not connected to DMX512 led controller or DMX512 console, the effects will for pre-load program in side of the decoder.
4.Connection in Parallel
Each decoder is connected on DMX512 signal bus in parallel. It is recommended that signal amplifiers should be used for every 32 pcs of decoders in case of signal drop(Attenuation).
5.Strong anti-interference ability, anti-static and prevent lightening design.
Application:
LED project light, LED Wall washer, LED ground light, LED Ceiling light, Channel light, full color RGB lights and LED point source lights.

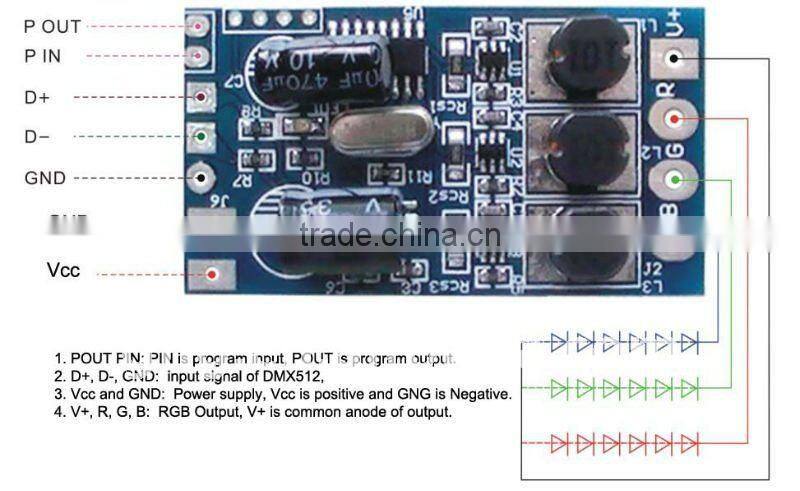

Input & Output:
Typical Connection:
G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products.
1.Manufacturer with our competitive price
2.Excellent management and technology QC Depa.aftersale team,we can do high technology
aftersale service.good quality products.
3.Prompt response to your request,
4.Short delivery,
5.Reliable warranty
6.OEM/ODM
7.GG and YM brand get the good repulation from all over the world
1.Payment methods:T/T,Western Union
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Lead time:3-5 working days,subject to the order quantity
3.Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc
4.MOQ:No quantity limit for the trial order
