Specifications

led dmx decoder led driver
Input: DMX512 signal,
Output: LPD6803,UCS1903,TM1803,74HC595
Voltage: DC12-DC24V,
Support 510 ch





dmx decoder 8806 , DMX512 Decoder for LPD6803, Output Capacity 510 channel,  led dmx decoder led driver,



Introduction:

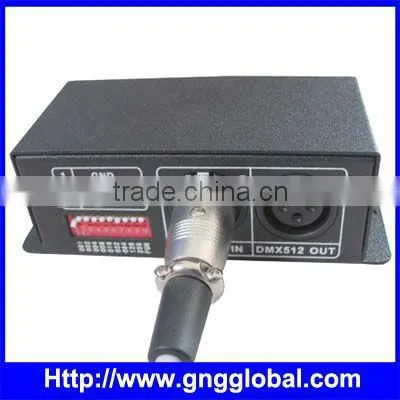

YM-BC802-6803(DMX-SPI) signal decoder is to convert the DMX512 digital signal into SPI(TTL) digital signal. It can work on the DMX console to control the LED lights with compatible driving ICs. DMX console can control every channel of the LED Lights, realizing 0-100% dimming and various changing effect.

Our DMX decoder can control LED lights based on following driving ICs:

LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, TLS3001, TLS3002, WS2801, WS2803, P9813, 74CH595, MB5026, DM134, DM135, ZQ9712.

The grey scales of DMX decoder depends on the driving IC , the above driving ICs are with a built-in grey scale processor and occupy 70-80% of LED digital lighting market, use our DMX-SPI decoder can simply turn normal LED digital light to DMX512 LED light with international standard  communication protocol, which is easy to promote in the international market.

DMX-SPI decoders are widely used in the LED string light, LED dot light, SMD flexible strip, LED digital tube, wall light, pixel screen, high power spot light, wall washer and kinds of LED digital lights .

Note: Signal DMX Decoder merely output the signal to the LED lights which can be controlled in spite of the working voltage.



Parameters:
Input voltage DC12V~DC24V
Input signal DMX512/1990
Output signal  LPD6803, LPD1101, D705,8806,1809,1903
UCS6909, UCS6912 driving IC
Decoder channels 512 DMX CH/unit
Grey Scale  32 levels/CH (5bit/CH)
DMX512 socket: Standard XLR-3 connector
working temperature -30°C~65°C
Dimension L125×W52×H40mm
Package Size L135×W70×H50mm
