Technical Features |
1.Tank is bilayer structure, the inner tube and tubing are made of austenitic stainless steel ,outer cylinder are made of Q235-B / Q345R .
2.Two shell with pearlife as filling stuff,and pumped into vacuum, and Set through special processing of the adsorbent, to extend storage t the life of the vacuum.
3. Imported paint is the guarantee for good appearance and long life span.
4. Operating easy and safe, easy maintenance for it’s compact structure, low issuance date, small footprint,advanced pipe line and procedure designing.
5.we can manufacture horizontal and vertical standardized liquid gas storage tank, also can design and manufacture the non-standardized storage tank.
Cryogenic Storage Liquid Tank Technical Parameters |
Item |
Effective Volume (m3) |
Max Working Pressure (Mpa) |
Size (mm) |
Static Evaporation Rate ( % per day) |
||
LO2 |
LN2 |
LAr |
||||
CFL-5/0.8 |
5 |
0.8 |
Φ2000×5130 |
0.43 |
0.65 |
0.46 |
CFL-5/1.6 |
1.6 |
|||||
CFL-5/0.2 |
|
0.2 |
||||
CFL-10/0.8 |
10 |
0.8 |
Φ2100×7130 |
0.36 |
0.55 |
0.38 |
CFL-10/1.6 |
1.6 |
|||||
CFL-10/0.2 |
0.2 |
|||||
CFL-15/0.8 |
15 |
0.8 |
Φ2500×6950 |
0.35 |
0.53 |
0.37 |
CFL-15/1.6 |
1.6 |
|||||
CFL-15/0.2 |
0.2 |
|||||
CFL-20/0.8 |
20 |
0.8 |
Φ2500×8760 |
0.33 |
0.5 |
0.35 |
CFL-20/1.6 |
1.6 |
|||||
CFL-20/0.2 |
0.2 |
|||||
CFL-30/0.8 |
30 |
0.8 |
Φ2900×8960 |
0.29 |
0.44 |
0.31 |
CFL-30/1.6 |
1.6 |
|||||
CFL-30/0.2 |
0.2 |
|||||
CFL-50/0.8 |
50 |
0.8 |
Φ3100×12060 |
0.23 |
0.35 |
0.24 |
CFL-50/1.6 |
1.6 |
|||||
CFL-50/0.2 |
0.2 |
|||||
CFL-100/0.8 |
100 |
0.8 |
Φ3600×17250 |
0.16 |
0.25 |
0.17 |
CFL-100/1.6 |
1.6 |
|||||
CFL-100/0.2 |
0.2 |
|||||

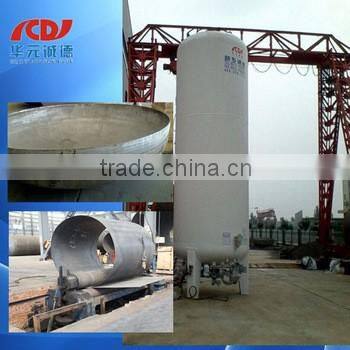

Product Photo Show |
|

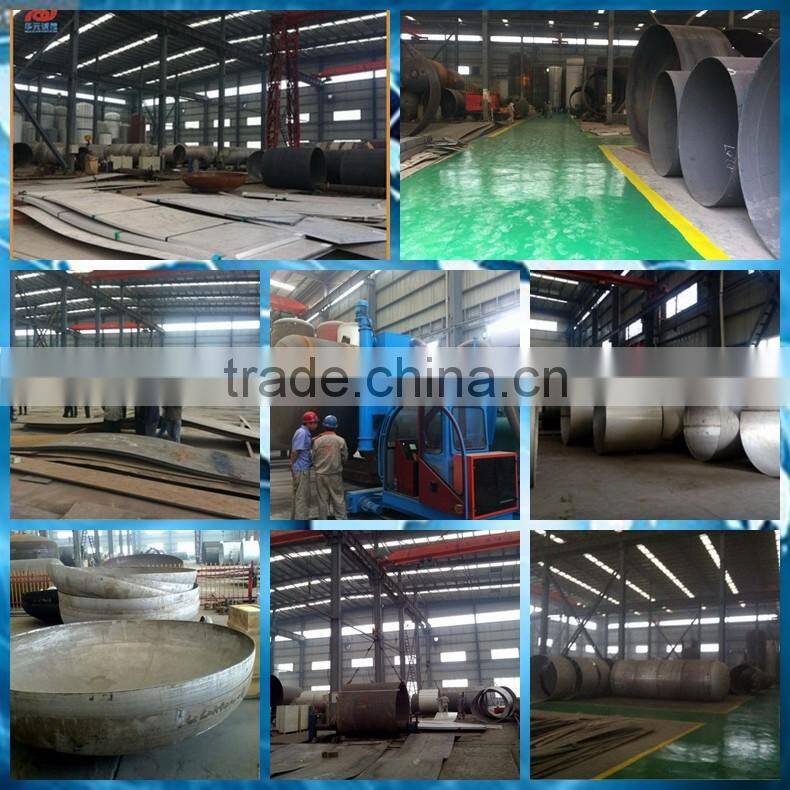

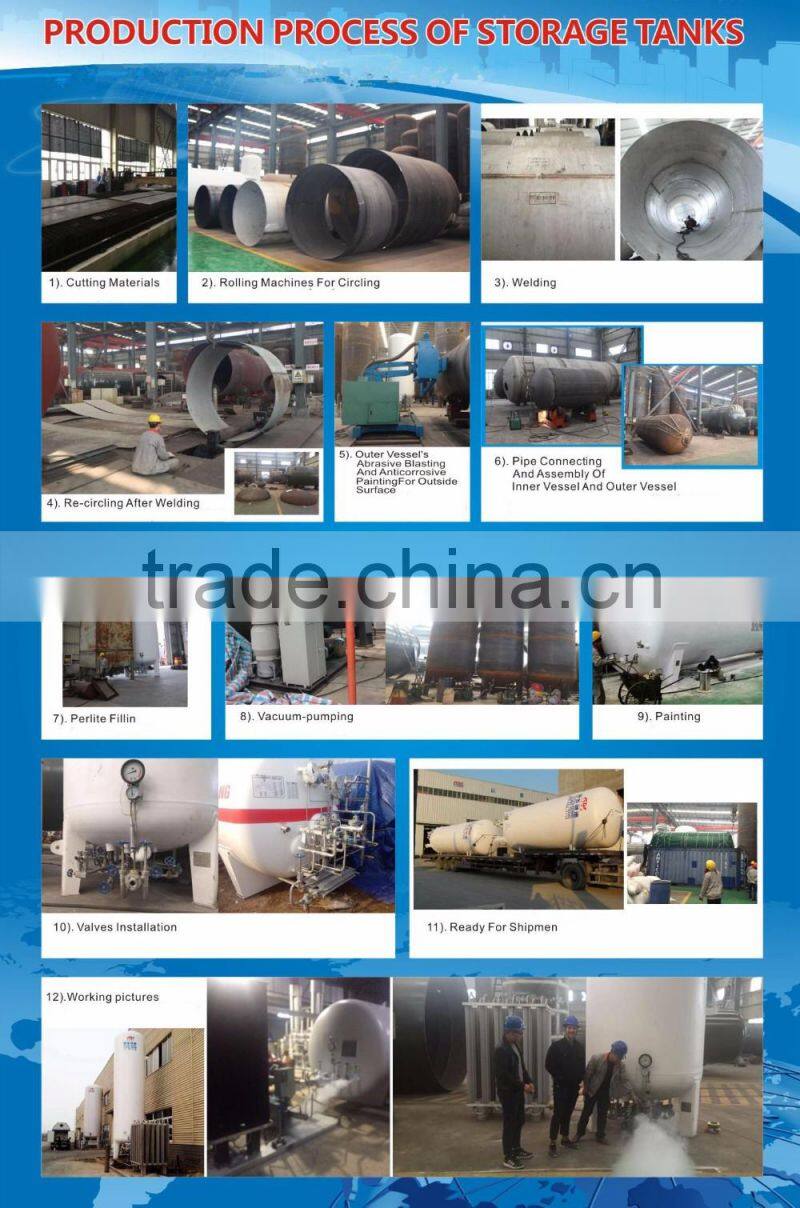

Product production process
|

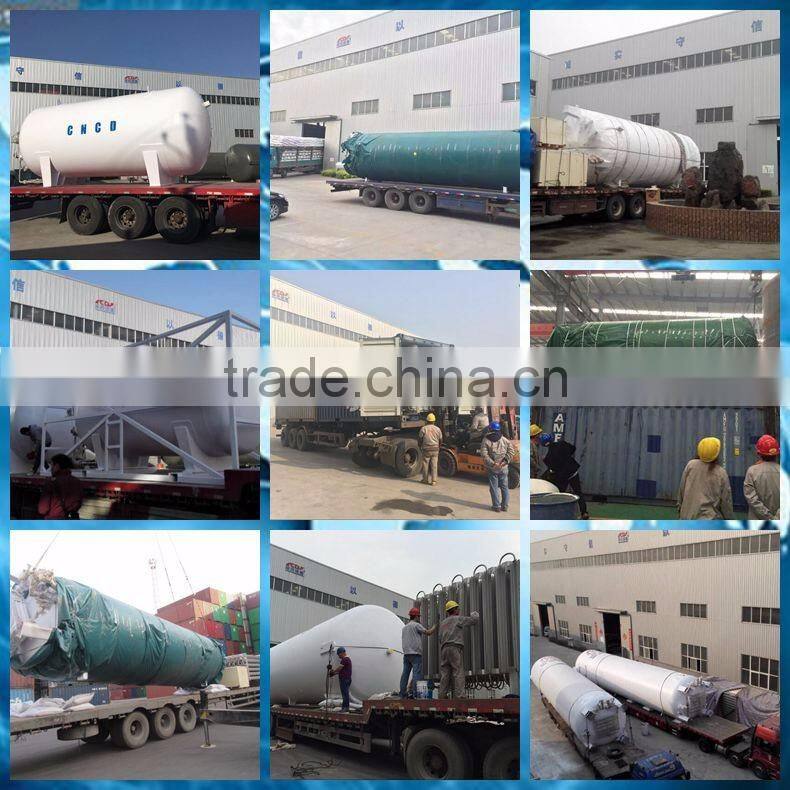

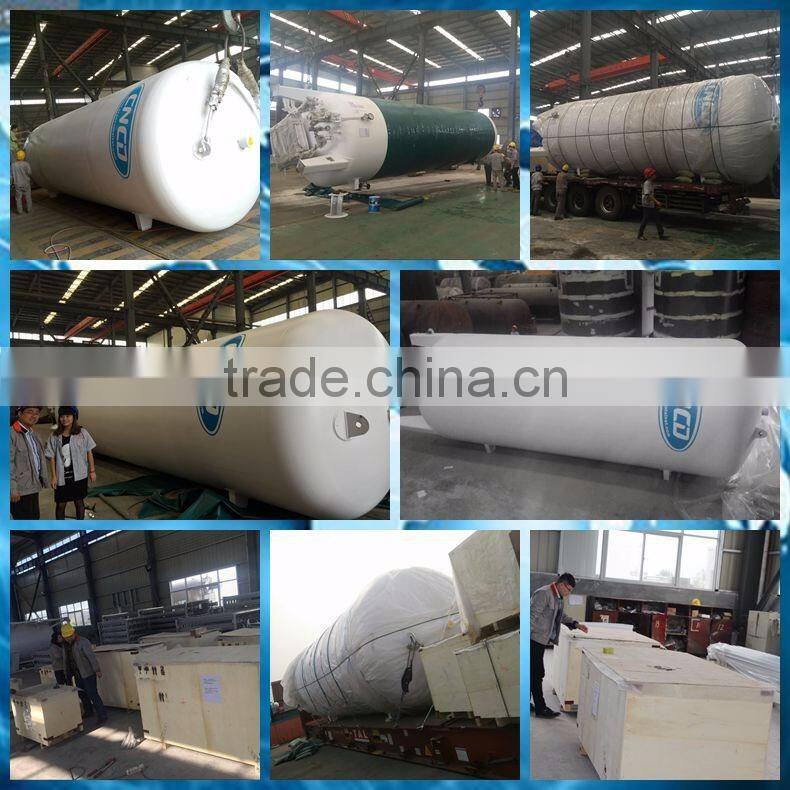

Packing & Shipment |

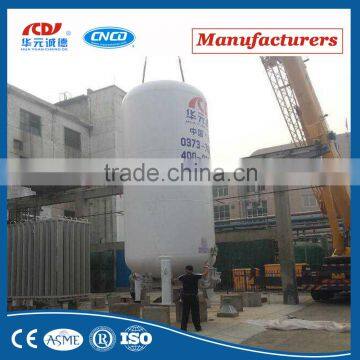

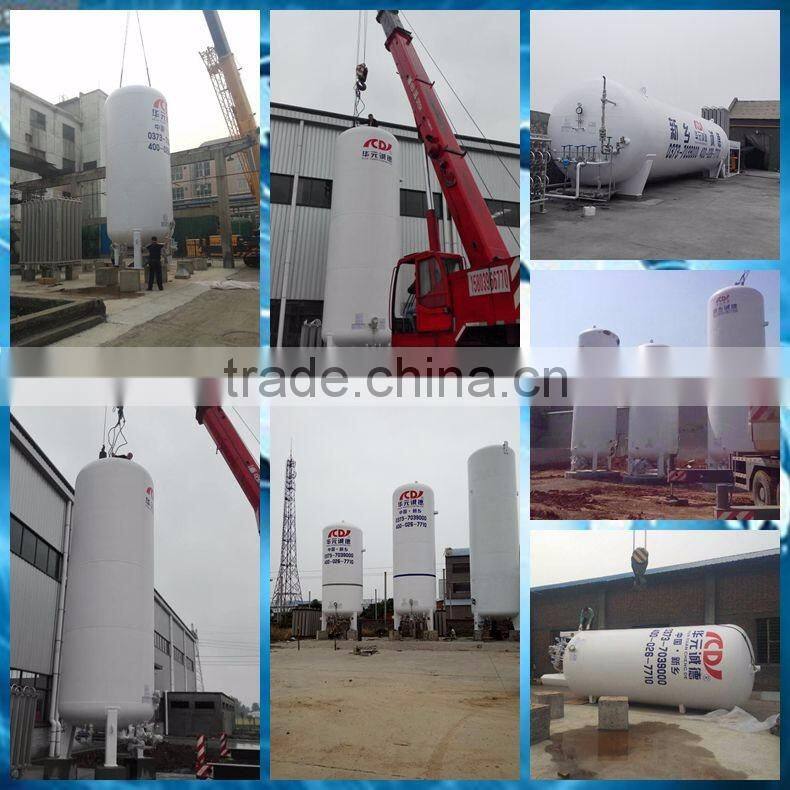

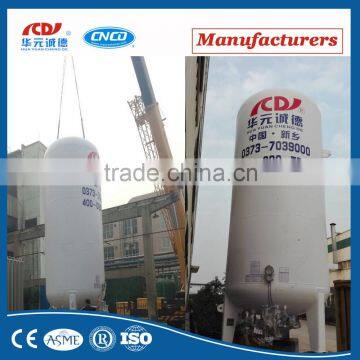

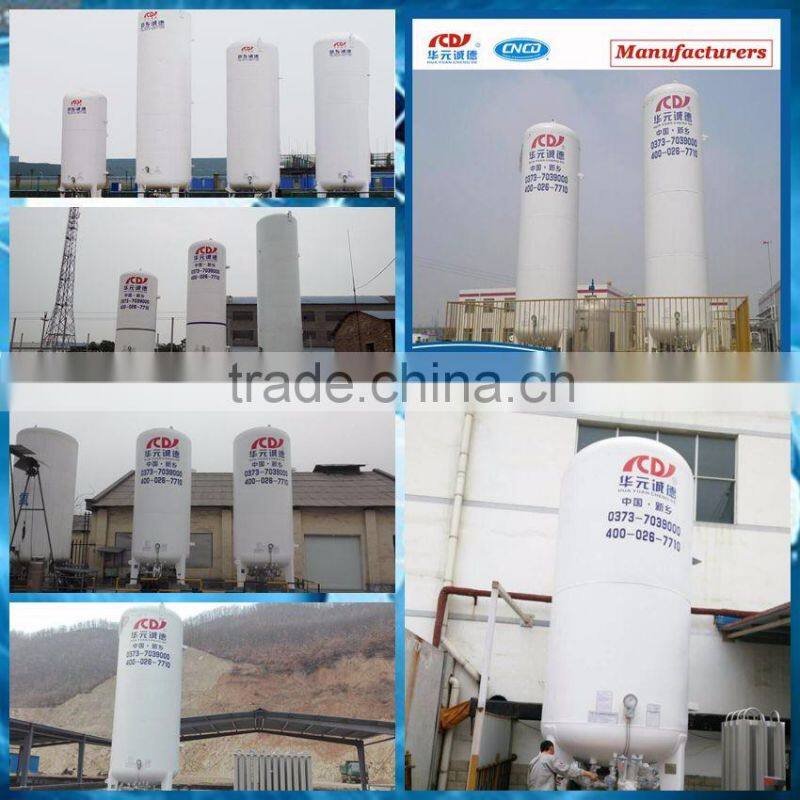

Tank Working |
Our Company |
Xinxiang Chengde Energy Technology Equipment Co., Ltd. (original Chengde Gas Equipment
Co., Ltd.) was Founded in 2002, Under administered :Xinxiang Chengde Global Trading Co., Ltd. and Xinxiang Jin Cheng Technology Co., Ltd; company is located in Industrial Park,Fengquan district,Xinxiang city,Henan province.with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation. The company has been committed to the pressure vessels, Low-temperature cryogenic equipment and gas equipment in the field of research and development, design, manufacture and installation.

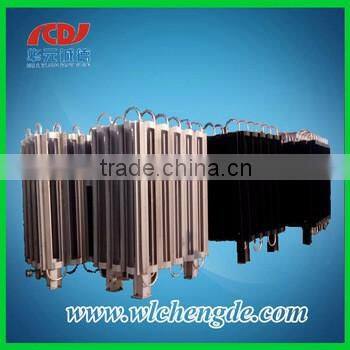

My company's main products are: cryogenic liquid storage tank, flat large cryogenic liquid storage tank, cryogenic liquid pump, air bath type vaporizer, water bath vaporizer, the gas pressure regulating device and non-standard pressure vessel etc.
