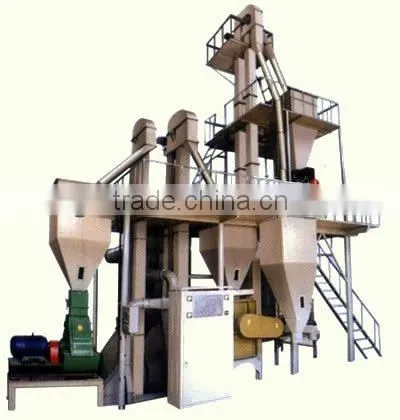

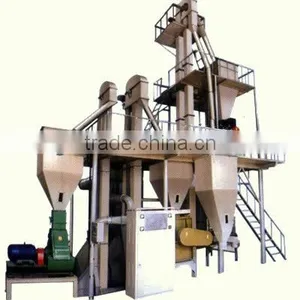

Help CenterFish Feed Pellets Extruder Machine With CE& ISO
Related Products
-
Small Home Cotton Seed Oil Press Machine for SaleUS$ 100 - 3,000MOQ: 1 Set -
Best Sale Palm Oil Refinery Plants in MalaysiaUS$ 1,000,000 - 20,000,000MOQ: 1 Unit
-
Edible Oil Refinery for Sale in United StatesUS$ 1,000,000 - 20,000,000MOQ: 1 Unit
-
Small Scale 1 to 5ton per Day Palm Oil Refining MachineUS$ 1,000,000 - 20,000,000MOQ: 1 Unit
-
Macchine per Pellet Usate PrezziUS$ 500 - 5,000MOQ: 1 Set
Specifications
1.capacity for feed pellet :100-10000kg/h2.power :4-30kw
3.pellet dia:3-10mm
4.application:Floating Feed, Sunk Feed,etc.
GEMCO --Biomass Feed Pellet Mill with CE&ISO
--High Effciency, Low Power, Stable Performance
Biomass pellet is a kind of high efficient clean renewable energy with the advantages of saving
energy and reducing carbon emissions. It is widely used in house-warming and power generation.
Structure and main parts of model ZLSP-D
Moisture Content
The requirement of moisture depends on different kinds of raw materials.
The moisture content of sawdust for the die-driving Pellet Mill ZLSP-D is specified to 10%-18%;
and roller-driving Pellet Mill ZLSP-R is 10%-14%. The materials should be mixed evenly.
Requested size
The maximum size of the materials cannot exceed the diameter of the pelletizing hole.
For example, if the diameter of the hole is 6mm, the length of the saw dust cannot be more than 6mm.
Please ensure the proper size of raw material according to the diameter of the hole.
Composition
This mill can process both single kind material and mixture with different materials.
Pieces of stone and iron or other hard impurities cannot be mixed into the material;
otherwise they will damage the die and roller.
Binder
Our mills are designed to pelletize without any additive. However we recommend using a binder,
which can increase capacity and extend service life of die, roller and other wearing parts.
Technical parameters
| Machine Mode |
Power (KW) |
Capacity for Wood Pellets (kg/h) |
Dimension (mm) |
Weight (kg) |
| ZLSP120A D-Type | 8HP Diesel Engine | 30-50 | 870x440x730 | 140 |
| ZLSP200A D-Type | 15HP Diesel Engine | 80-120 | 1180x560x950 | 310 |
| ZLPS200B D-Type | 3-phase 7.5KW Motor | 80-120 | 1000x430x950 | 230 |
| ZLSP230A D-Type | 22HP Diesel | 150-200 | 1180x560x950 | 310 |
| ZLSP230B D-Type | 3-phase 7.5KW Motor | 150-200 | 1140x470x970 | 320 |
| ZLSP260B D-Type | 3-phase 15 KW Motor | 160-220 | 1200x500x1070 | 360 |
| ZLSP300B D-Type | 3-phase 22KW Motor | 200-250 | 1270x520x1070 | 450 |
| ZLSP360C D-Type | 3-pahse 22KW Motor | 250-300 | 1270x520x1070 | 500 |
| ZLSP400C D-Type | 3-phase 22KW Motor | 300-350 | 1520x600x1150 | 660 |
| ZLSP200 R-Type | 3-phase 7.5KW Motor | 100-120 | 1150x560x750 | 300 |
| ZLSP300 R-Type | 3-phase 22KW Motor | 250-350 | 1350x650x800 | 420 |
| ZLSP350 R-Type | 3-phase 30KW Motor | 450-500 | 1650X1000X1200 | 800 |
ZLSP450 R-Type |
3-phase 37KW | 600-700 | 1800x1100x1350 | 1100 |
About GEMCO
Anyang GEMCO Energy Machinery Co., Ltd, which boasts the earliest enterprise engaging in manufacturing
biomass processing equipment (including biomass pellet mills and complete plants) and renewable
energy machines, possesses certificates of ISO9001 and CE. As one of the key renewable machinery
manufacturers, GEMCO also enjoys the national encouragement policies. Remarkably, our products have
been serving clients overseas across more than 100 countries and regions. Having state of the art manufacturing
equipment, we dedicate to R&D, manufacturing, installing, and debugging biomass energy machines as a whole.
Our products have enjoyed a good reputation at home and abroad.
