Specifications

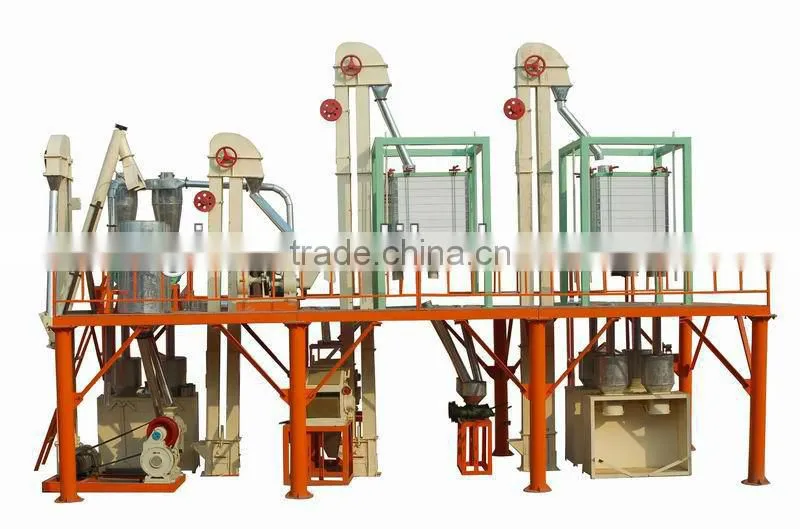

This combined type of flour mill is used in the Mid-small size flour processed factory to process the grain like wheat,corn,etc.
Scope of application
This series machines have regulate design and compact structure, lift and grade material by roundhandle. Skin and flour are milled separately. Material storehouse is on ground and receiving the flourand bran on ground too. The character of this machine is stability, standing wear & tear, high output.
Working principle
This series s flour mills adopt the pneumatic transmission, the raw material is elevated by negativepressure and use the cyclone to separate the raw material and the pressure. The machine are made up by aspiration system, separation system, stock bin and OS. Easy to operate and structure is compact.
Outstanding points
1. Improving mechanization and lowering labor.
2. Adopting Pneumatic transmission which is sealed and proving flour running out.
3. Lower flour temperature and more than once processing keep the end flour quality.
Quotation of Models
Model |
Capacity(Kg/h) |
Power (kw) |
flour quality |
LXWXH(mm) |
|
M6FY-35 |
300-400 |
7.5 |
total extraction flour is over 75% |
1100*670*1260 |
|
M6FY-40 |
400-450 |
11 |
1300*750*1430 |
||
M6FY-50 |
500 |
15 |
1300*750*1430 |
||
M6FY-60 |
600 |
18.5 |
1400*800*1500 |
||
10 TPD co-production line for corn grits
The 10 TPD co-production line for corn grits consists mainly of cleaning machine, machine for coarse crushing and de-embryo, corn grits granulator, milling machine, single cabin sieve and elevator so that a perfect production
line can serve the user in a higher automatic way and only 1-2 workers can handle the complete unit.
Output(t/d) |
Corn starch |
Corn hominy |
Fodder power |
Power(kw) |
Plant area(m) |
10 |
25-30% |
45-50% |
20-30% |
40 |
12*5*4.5 |

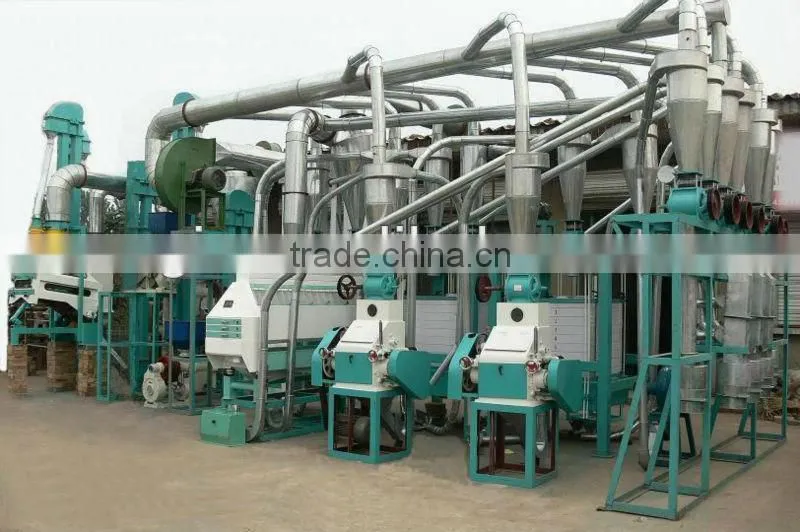

20 TPD co-production line for corn grits
It is mainly comprised of vibrating sieve, stoning machine, refined hominy granulator, machine for cleaning and separating,
milling machine, double cabin sieve and elevator so that a perfect production line can serve the user in a higher efficient
way with 3 kinds of corn hominy and 2 kinds of corn starch and 6 kinds of fodder.
Output(t/d) |
Corn starch |
Corn hominy |
Fodder power |
Power(kw) |
Plant area(m) |
20 |
25-30% |
45-50% |
20%-30% |
95 |
6*6*4.5 |
