China Supplier Fully Automatic Flour Mill Machinery
keywords:fully automatic flour mill,automatic flour mill,flour mill machinery
We offer a turn key project 10T~500T/24H. Our main products include sigle flour mill, small flour mill machinery from 10TPD to 30TPD, complete set of full automatic flour mill machinery 30-160TPD.
The Main Technical Parameters of flour milling machine:
1. Output: 50T per day.
2. The quality of the flour: Conform the stipulation of China GB 1355-864'
3. The total power: 157.95KW
4. Power consumption per ton wheat: 60.65KW*h
5. The voltage: 380V*50HZ.
6. Weight: about 50 ton
7. Bulk: 160M3
The Main Equipment list
The part of cleaning |
The part of Marking flour |
||||
No |
The name and specification of equipment |
QTY |
No |
The name and specification of equipment |
QTY |
1 |
PH-50 grain separator |
3 |
1 |
6F-35 flour milling machine |
3 |
2 |
DMW-30*60 style scourer |
2 |
2 |
GFY-200 style air-lock |
2 |
3 |
QSX-56 style sucking stoner |
2 |
3 |
150 style auger |
2 |
4 |
Magnetic separator |
1 |
4 |
FSFJ2*13*83 plansifter with two nest of sieve |
1 |
5 |
FZSH damper |
1 |
5 |
6-30-7# style high pressure fan |
1 |
6 |
4-72-11 style low pressure fan |
2 |
6 |
Bagging-box |
2 |
7 |
150 style auger |
4 |
7 |
Pneumatic system of making flour |
4 |
8 |
Four-cyclone |
1 |
8 |
30 style bran sieve |
1 |
9 |
Bucket elevator |
4 |
9 |
TBCM-39b pulse cloth pot dust filter |
4 |
1. The total area of the workshop is about 435.2 square meters, (27.2*8*2 two storeys).
2. The total length of the rollers is: 35*12=420cm.
3. The volume of adding the water: depending upon the moisture content of raw wheat, usually temper to 3% moisture, it needs 1.5T water in 24 hours.
The layout of the flour milling plant workshop
For flour mill machinery, our equipments are ideal for customer to get all purpose of wheat flour (standard flour, grade 1 flour, grade 2 flour which obey the people's republic China's GB1355-88 standards)with tailor made design as required.
Equipments Details

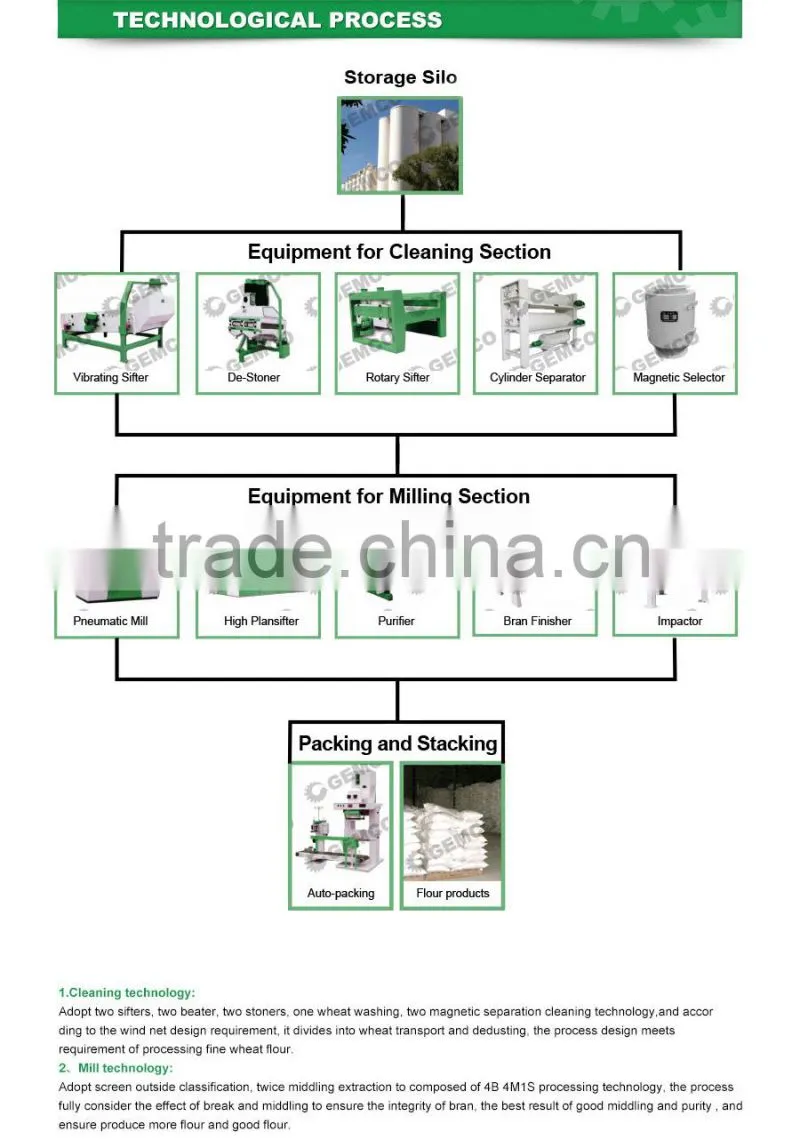

How to get products by our full automatic flour mill machinery?
- Storage Section
The grain silo is widely used in storing grain such as wheat, corn, maize, rice, paddy, malt, barley, soybean,etc.
(This part is optional if there is no need to store.)
- Cleaning Section
To ensure the flour Quality and the working life of the mill by removing the impurities in the wheat before go to mill.
This part includes:
Vibrating Separator | Gravity Grading Destoner | Rotary Flat Sifter | Horizontal Wheat Scourer| Magnetic Separator.
- Milling Section
To mill the wheat and separate the flour and bran until get the finished wheat flour.
This part includes:
Pneumatic Roller Mill | Purifier | Plansifter (Single bin or double bin or high square) | Bran Finisher | Impact Detacher.
1.Roller mill: Key machine in flour mill production line, to mill the wheat to break the integrity by the roller;
2. Purifier: To reduce the ash content in flour, applied for purifying and grading milled flour;
3. Plansifter: Main equipment in flour mill, grading the flour , to ensure layout qualified finished flour.
(Should know that different capacity has different type and different number of roller mills,plansifter and purifiers.)
- Packing Section -----(Flour packing machine | stacking )
It is well designed for packing various kinds of powdery materials such as grain flour,starch,chemical materials,etc.It has a great precision as low as 0.2% in weighting.
Offering a turnkey project,our wheat flour mill capacity varies from 10T/Day for workshop use; 20T/Day, 30T/Day, 50T/Day, 80T/Day,100T/Day, 120T/Day, 150T/Day, 200T/Day, 250T/Day,300T/Day, 350T/Day, 500T/Day for factory plant.
QUALITY & SERVICE COMMITMENT k
ey
We put customers’interests, product quality and service as first ,and always adhere to the"no best, only better" as our purpose. We will be commitment to provide high quality products with perfect site services and after-sales service. Now the specific commitments are as follows:
1. Ensure provide complete sets of equipment and accessories timely.
2. Ensure that one-time installation debugging acceptance.
3. To provide high quality material with preferential price.
4. Priority to provide customer our new craftworks and products.
5. Free training technological operator to ensure the trained staff can operation independently.
6. In the installation process,we will appoint an installation supervision staff on the spot.
7. We will offer an experienced project manager, organize a good installation team for the work of field installation debugging.
PACKAGE
1. Fumigation-free strong wooden package.
2. Big parts like crane beans pack with water-proof cloth and wooden pallet.
3. Also offer steel-frame, wooden pallet etc as customize.
4. Offer relevant documents such as packing declaration.
AFTER-SALE SERVICE
1. Quality Gurantee: 1 year except spare parts.
2. Offer manual book and commissing solution.
3. 7*24 hours online service, pls contact our sales for guidance.
4. Engineers available to install machines for you
5. Offer spare parts at cost price.
Business Cases
So far, We have set up a good relationship with customers all over the world, the equipments have been exported to:
Asia---- India | Yemen | Pakistan | Tajikistan | Afghanistan | Vietnam | Israel | Kazakhstan
Oceania----Australia | New Zealand | Fiji
North America---- America | Canada | Mexico | Honduras
South America---- Brazil | Chile | Ecuador | Peru | Bolivia
Europe---- Belgium | Turkey | Slowenien
Africa---- Egypt | Algeria | Zambia | Congo | Kenya | Ethiopia | Uganda | Mozambique | Tanzania
With years professional experience and enterprising spirit in grain processing and full automatic flour mill machinery building, we are confident to help you settle any problems met in your working and ready offering a best and most economical solution for you.
