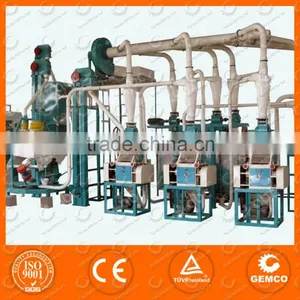

Low Price Wheat Flour Mill Milling Machine
The Main Technical Parameters of flour milling machine:
1. Output: 50T per day.
2. The quality of the flour: Conform the stipulation of China GB 1355-864'
3. The total power: 157.95KW
4. Power consumption per ton wheat: 60.65KW*h
5. The voltage: 380V*50HZ.
6. Weight: about 50 ton
7. Bulk: 160M3
The Main Equipment list
The part of cleaning |
The part of Marking flour |
||||
No |
The name and specification of equipment |
QTY |
No |
The name and specification of equipment |
QTY |
1 |
PH-50 grain separator |
3 |
1 |
6F-35 flour milling machine |
3 |
2 |
DMW-30*60 style scourer |
2 |
2 |
GFY-200 style air-lock |
2 |
3 |
QSX-56 style sucking stoner |
2 |
3 |
150 style auger |
2 |
4 |
Magnetic separator |
1 |
4 |
FSFJ2*13*83 plansifter with two nest of sieve |
1 |
5 |
FZSH damper |
1 |
5 |
6-30-7# style high pressure fan |
1 |
6 |
4-72-11 style low pressure fan |
2 |
6 |
Bagging-box |
2 |
7 |
150 style auger |
4 |
7 |
Pneumatic system of making flour |
4 |
8 |
Four-cyclone |
1 |
8 |
30 style bran sieve |
1 |
9 |
Bucket elevator |
4 |
9 |
TBCM-39b pulse cloth pot dust filter |
4 |
The layout of the flour milling plant workshop
1. The total area of the workshop is about 435.2 square meters, (27.2*8*2 two storeys).
2. The total length of the rollers is: 35*12=420cm.
3. The volume of adding the water: depending upon the moisture content of raw wheat, usually temper to 3% moisture, it needs 1.5T water in 24 hours.
If your business is simple and initial investment is limited, 40-60TPD flour mill plant is right for you, it is steel frame construction, low cost. But if you intend to large scale supply of flour, you would have to take care of 80-250TPD or 300-500TPD complete flour mill plant . It occupies larger land spaces to build the plant workshop.
This flour mill milling machine can process of turning grain such as wheat, corn etc. into flour is called flour milling. Find out this knowledge could help you start a business of flour mill plant.
- Single Flour Milling Machinery
- Small Flour Mill Machinery from 10TPD to 30TPD
- Complete Set of Flour Mill Machinery 30-160TPD
What is the process of wheat flour mill milling machine?
1.Storage section -----Grain silo (if need)
2.Cleaning section ------(Vibrating Separator | Gravity Grading Destoner | Rotary Flat Sifter | Horizontal Wheat Scourer| magnetic Separator, etc.)
3. Milling section -----(Pneumatic Roller Mill | Plansifter (Single bin or double bin or high square)| Purifier | Dampener | Impact Detacher, etc.)
4. Packing section -----(Flour packing machine | stacking )
Details of each section?
1.Storage section:
The grain silo is widely used in storing grain (such as wheat, corn, maize, rice, paddy, malt, barley, soybean, etc.)
2.Cleaning Section:
To ensure the flour quality and the working life of the mill by removing the impurities in the wheat before go to mill. Main machine includes:
1).Vibrating Separator:
2).Gravity Grading Destoner
3).Rotary Flat Sifter
4).Horizontal Wheat Scourer
5).Magnetic Separator
3.Milling Section:
Different capacity has different number of roller mills,plansifter and purifiers, this part is to mill the wheat and separate the flour and bran until get the finished wheat flour.
1). Pneumatic Roller Mill:
Mill the wheat to break the integrity by the roller moving
2). Single bin/Double bin/High square plansifter:
To separate the flour and bran, also separate large size and small size to enssure flour quality.
3). Purifier:
Aluminum sieve frames for longer lasting durability. Supplied with complete exhaust trunking system.
4).Bran Finisher:
?
4.Package Section:
This part can be manual one also can be auto one, this can be designed according to requirement and machine capacity.
With years professional experience and enterprising spirit in grain processing and flour mill plant building, we are confident to help you settle any problems met in your working and ready offering a best and most economical solution for you.
