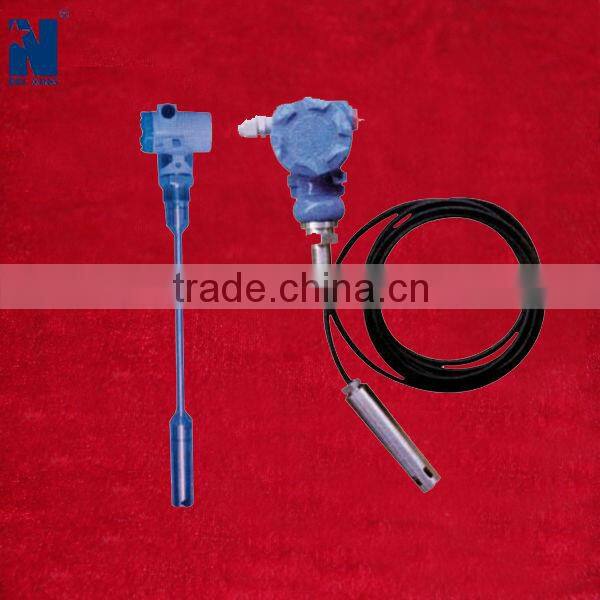

Input type liquid level gauge indicator transmitter hydrostatic level sensor

General information

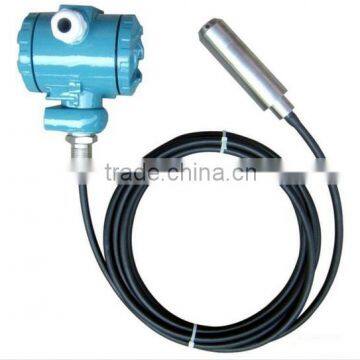

Input type hydrostatic level transmitter is a kind of modified product of pressure measurement right for the open vessels.

Features

1. Convenient to use, flexible

2. Widely used, easy to fit

3. Wide measurement range

4. High accuracy, good stability, high reliability

5. Good design for water-proof

Technical parameters

1. Errors: 0.5%F.S or 0.2%F.S

2. Measurement range: cable: min 0~0.35m

max: 0~100m

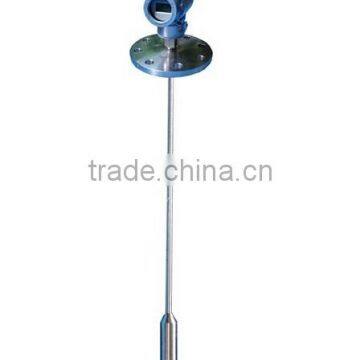

pole: (gas operated): min: 0~0.35m

max: 0~3m

Power supply: 24VDC

Output: 4-20mA(or 0~10mA, 1-5V, 0~10V),if voltage signal, the sampling resistance must be to 0.05% accuracy.

3. Load resistance: 250 Ω

4. Environment temperature: -20~+85°C

5. Medium temperature: -20~+85°C

6. Storage Temperature: -40~+125°C

7. Installation site: input the bottom of the liquid

8. Cover material of the sensor: 1Cr18Ni9Ti or polytetrafluoroethylene

9. The material of the sensing isolated patch: 316L stainless steel or ceramic

10. The material of the gas leading cable: polyethylene

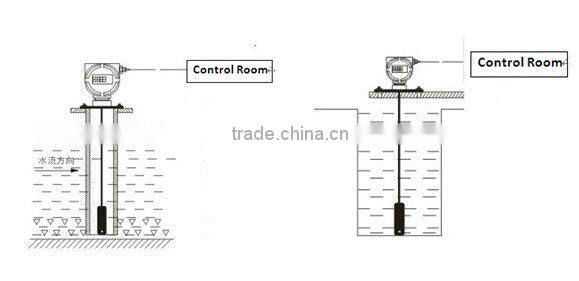

 Installation struction
