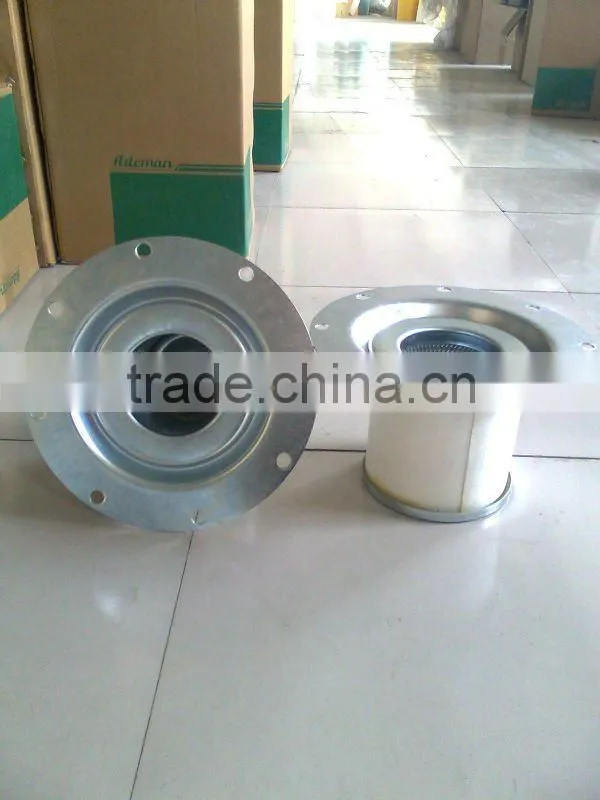

Help CenterSlurry Filter Press Oil Separator
Related Products
Specifications
1.Filtering precision:0.1aam.2.Filtration efficiency:99.99%.
3.Service life is approximately 3500h-6000h.
Product decription:
1.Filtering precision:0.1μm.
2.Oil contained in compressed is below 3ppM.
3.Filtration efficiency:99.99%.
4.Service life is approximately 3500h-6000h.
5. Initial pressure differential≤0.02Mpa.

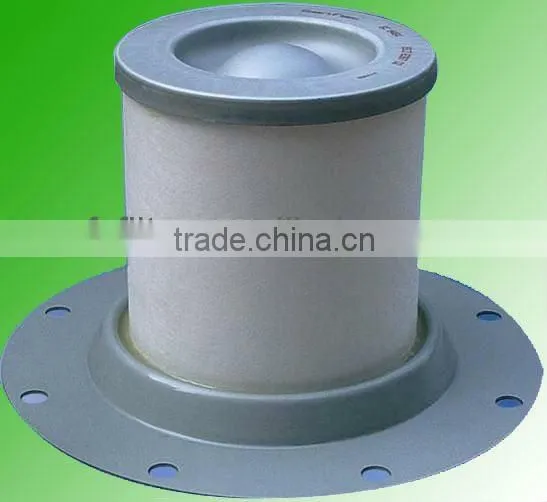

6.Filter element of air oil separator is made by the thin fiberglass,which imported from HV&Lydall company.
Quality system :
1.Our factory have very inner quanlity inpsection system for each procedure ,have QC operator check the products in each the production procedure ,make sure the parts is qualified flow into the next producdure .
2.finish products test in lab as OEM standard and national stanards .
3. pass ISO9001-2000 certificate .
Production application :
used in the oil separator compressor
P/N( not include all )
Model |
Flow rate m3/min/0.7mpa |
Orginal P/N |
D mm |
H mm |
Ademan model |
Ml-22 |
3 |
39831888 54955442 |
194 |
226 |
8262681694 8166082600 |
M-22 |
3 |
39751391 |
194 |
216 |
8261681694 |
30S |
3 |
42855486 |
194 |
216 |
8261681694 |
UPS22 |
3 |
54749247 |
135 |
305 |
8360581635 |
M-37 |
6 |
92754688 |
194 |
232 |
8263281694 |
ML37 |
6 |
39831888 |
194 |
232 |
8263281694 |
50S |
6 |
39831888 |
194 |
232 |
8263281694 |
EP100 |
10 |
42841239 39863857 36876472 |
336 335 |
356 356 |
8365683636 8365683635 |
M55 |
10 |
46501073 39737473 92871326 |
299
|
190 |
8169082699 92754696 |
P600SCU |
|
54601513 42862077 |
300 301 |
190 190 |
8169083600 8169083601 |
75S |
10 |
39894597 92722750 |
302 |
190 |
8169083602 |
EP200 |
20 |
42841247 |
375 |
457 |
8465783675 |
M90 |
20 |
54509427 |
374 |
455 |
8465583674 |
900 |
|
89285761 54509435 |
360 535 |
500 450 |
8560083660 8465085635 |
150S |
20 |
39863865 39863840 |
375 240 |
455 275 |
8465583675 8267582640 |
ML-250 |
40 |
39831920 39760590 |
431 432 |
412 412 |
8461284631 8461284632 |
|
M-250 P600 |
40 |
39890600 54509500 |
430 430 |
444 412 |
8464484630 8461284630 |
|
VEP400SCU VHE750
|
11 6 |
22219174 92699198 |
431 305 |
460 250 |
8466084631 8265083605 |
|
VHP700E P1050E EPE450 |
20 29 60 |
39863899 39863881 92062132 |
535 534 440 |
465 464 862 |
8466585635 8466485634 866284640
|
photo picture
Our company
Fangyuan Filter Co.,Ltd is a professional filter production company. We are a comprehensive company with the research, development, manufacture and sales of our filters. We introduce the whole set advanced production equipment from abroad, and we possess a design and manufacture team with exquisite technique, competitive managerial and administrative personnel, as well as the complete after-sales service system. The aim of our company is “ Quality first, Customer first ”. We are committed to provide the best quality products and service for customers. Welcome to contact us!
