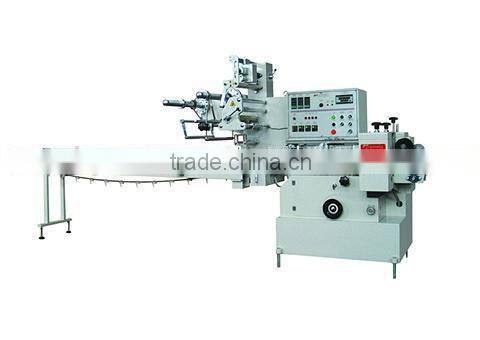

YQ-720 high speed pillow packing machine
Main configuration:
This machine adopts mainly imported electrical components, Japan Panasonic frequency converter, Omron PLC, packaging machine is welded by 12 thick steel plate , stainless steel working platform. With mechanical and photoelectric anti-cutting function, it is safe for the operator and the machine .
Machine features:
- When using programmable controller (PLC) , operation is more stable and reliable;
- The motor speed is controlled by frequency conversion. changing the packaging speed need only to rotate potentiometer knob which is connected with frequency converter ;
- The main body is made of 12 mm thick steel plate welding and after welding heat treatment eliminate internal stress. when working with high-speed,the machine don't shake, the body of machine is never deform , the machine life can be up to 10 years;
- Equipped with adjustable bag making machine, when packaging products with the different sizes , just only rotating the knob of bag making machine can complete transformation of products .
- The machine adopts gear chain stepless transmission, rotating the handle can change the length of the packaging bags;
- Because of digital display function,it can directly displayed the bag length, packing speed, sealing temperature, and productions etc.
- Two-way photoelectric tracking system can ensure that the film is cut in the location of the need and cutting point is accurate;
- Automatic positioning stop function can guarantee no scalding for the film and the products when stop machine.
- Equipped with protection switch of the electricity leakage , can ensure the safety of humans and machines,
- Equipped with urgent stopping switch and cover in front of the sealing knife ,it can prevent the operator from injury when wrong operation.
The main parameters: machine data, parameters are only for reference .
Model |
YQ-720 |
YQ-590 | YQ-450 |
Power supply |
220V 50Hz 15kw |
220V 50Hz 15kw | 220V 50Hz 15kw |
Packing film |
PE,POF |
PE,POF | PE,POF |
Max film width |
Max.720mm |
Max.590mm | Max.450 |
Bag length |
100~500mm |
100~500mm | 100~500mm |
Bag width |
80~350mm |
80~180mm | 60~100 |
Packing height |
Max.120mm |
Max.120mm | Max.120mm |
Film-rolling diameter |
Max.320mm |
Max.320mm | Max.320mm |
Packing speed |
40~120pieces/min |
40~120pieces/min | 40~120pieces/min |
Machine size |
L6000*W1085*H1650mm |
L6000*W1085*H1650mm | L6000*W1085*H1650mm |
Weight |
1200kg |
1200kg | 1200kg |
Suitable for packing all kinds of cubic products and stick,such as biscuits, snow cake, egg yolk pie, chocolate, bread, instant noodles, moon cakes, medicine, daily necessities, industrial parts, cartons or pallets and so on.
1, Packaging details: Free fumigate wood case or according to the customer's requirements.
2, Delivery detail:10~20 working days after receiving prepayment.
Pre-sale services:
1, Provide professional technical support according customer's requirments.
2, Send the machine catalog and instruction manual.
3, If you have any questions please contact us online or send us email,we promise to reply you as quickly as possible.
After-Sale services:
1, 12 months warranty.Lifelong maintenance.
2, Engineers available to service machinery overseas.
3, 24 hours telephone service online.
1,Communicate with customers
2,Our machine workshops:
1. How's your company?
Our company is a professional packaging machinery which is specialized in research and development,design,manufacturing,sale,
and service. Company also has a great number of professional technicians who have good skills and experiences in packaging machine.
we are able to customize all types of nonstandard packaging machine according to the requirement of buyer .We have set up a complete
system which integrates the production,sales,and post-sale services
2. How's your products?
Our good quality is built on superior material,all spare parts are well-known brand .
The main products include automatic sealing and cutting shrink packaging machine,carton opening machine ,carton sealing machine,
vertical and pillow packaging machine ,and more than 10 kinds of packaging machines .
3.How to order the machine?
First we need you to provide your details as many as possible about your requirements , such as packaged goods, the packing material,
the bag size, and sealing style etc. we'll give some suggestions for you,Then we can confirm the
type of the machine and draw the contact.
4. How's your price?
Our price is based on the quality, we give the reasonable price to every customer! Here could buy quality of Europe quality on Chinese price!
5. How's your after-sale service?
We can give you one years warranty after sales , we can also send our engineer to your factory to install this equipment and train your staff,
but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as
the means for Seller’s engineer. We will send a free set of spare parts for you change it.
Other: With English manual book, and operation steps videos/CD, to make sure you can easy to use the machine.
6. How to pay? What is the payment term?
We accept T/T, Western Union, Escrow
Payment term: 30% for deposit, 70% pay before shipping.
7.How do we test your machine?
When the machine already ready, we will send you video to check , you can also come to our factory to test and learn how to operate it.
8. How many days will the machine be ready ?
About 15~30 working days after we receive your prepayment,.
9. How do we get your machine after shipped ?
We will give you all documents to get the machine.
10.How to maintain ?
If the machine have any problem, Please send photo or video to us, then we will send you the spare parts or video to teach you how to fix it .
11.What else could your company do?
We are also able to customize the machines according to your demands , such as the packing speed , the bag length, the max product high, etc.
Hope to cooperate well with all domestic and overseas clients!
12. Contact us:
If you want to know more information about our machines, welcome to contact us and visit our factory any time!!!
