Hepa Filter Material
Titaium anode
Hepa Filter Material
Hepa Filter Material
Brief Introduction:
Item Name |
Hepa Filter Material |
|
Porosity |
40%(max) |
|
Aperture |
2.5-160μm |
|
Filtration precision |
0.2μm-80μm |
|
Filtration Efficiency |
98% filtration accuracy under:0.1 - 80um |
|
Compressive Strength |
3.0Mpa/cm2 |
|
Shape |
Tubular, Plate, Bar, Disc, Strip and so on. |
|
Specification(mm) |
Thickness |
0.5-20 |
Width |
Less than 250 |
|
Work environment |
Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, hydrogen, nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen, gas, carbon dioxide gas environment |
|
Hepa Filter Material Hepa Filter Material
Filtering level |
Filtering precision /μm |
Maximum Aperture /μm |
Permeability m3/h.m2.kpa |
Thickness mm |
Compressive strength Mpa/cm2 |
S9 |
0.2 |
2.5 |
1.5 |
3 |
3.0 |
S8 |
0.5 |
4 |
3 |
3 |
3.0 |
S7 |
1.0 |
6 |
5 |
3 |
3.0 |
S6 |
2.5 |
10 |
15 |
3 |
3.0 |
S5 |
5 |
15 |
40 |
3 |
3.0 |
8 |
20 |
80 |
3 |
3.0 |
|
S4 |
10 |
30 |
120 |
3 |
3.0 |
S3 |
20 |
60 |
250 |
3 |
3.0 |
S2 |
30 |
100 |
500 |
3 |
3.0 |
S1 |
50 |
160 |
800 |
3 |
3.0 |
| |||||
Hepa Filter Material Hepa Filter Material
PS: Sample are available for your testing.
QX Ti is always at your service. The quality and after-sale service are absolutely guaranteed.

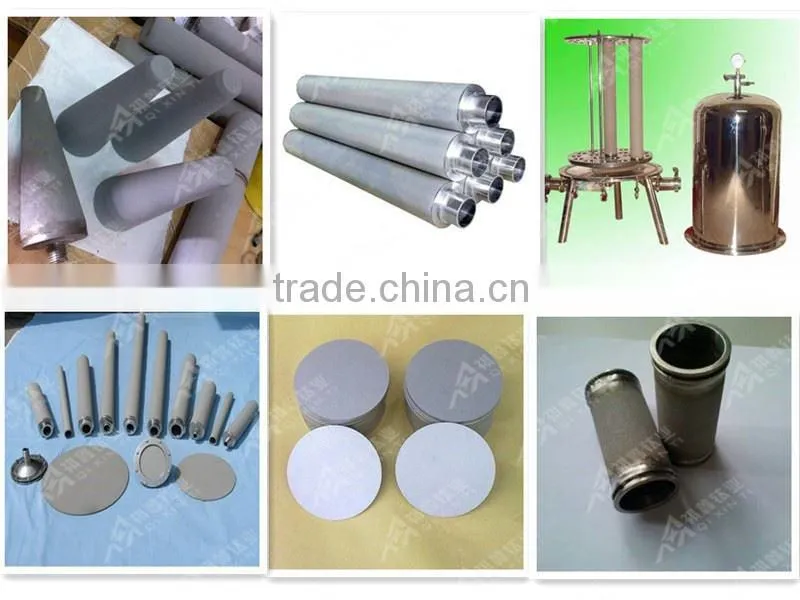

Hepa Filter Material showcase:
Hepa Filter Material
Hepa Filter Material
Hepa Filter Material
Hepa Filter Material
Hepa Filter Material
Why choose us:
1.We are a professional producer of titanium tube,and have more than 8 years’ titanium products production experience.
2.Complete processing and testing equipments.
3.Long term coopatation with Samsung supplier.
4.More experience,the more professional service will be offered.
5.Two alibaba Gold Supplier account.
