Specifications
1) 3G, GPS, WIFI, SD,G-sensor,can be added;2) CE and FCC certificated;
3) Full D1 recording;
4) CMS all-in-one management.
Specifications

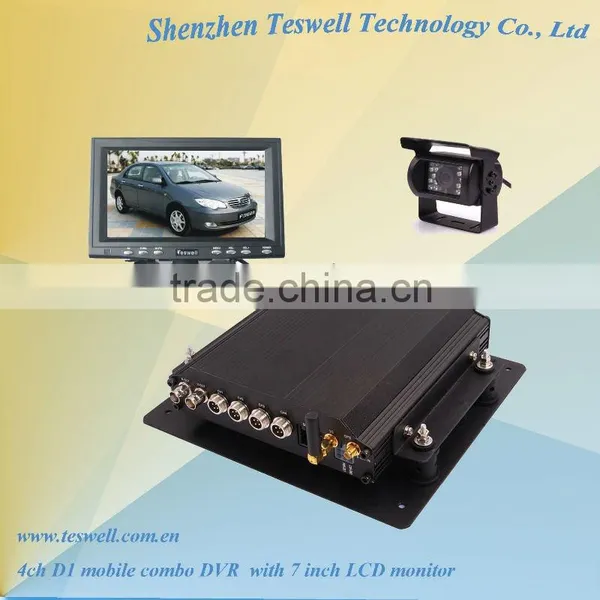

Teswell( /en/) TS-210 series combine the advantages of the traditional DVRs with the most advanced GPS and 3G technologies. With TS-210, Drive record, google map, live surveillance, etc. are at hand. They are perfectly suitable for areas such as trucks, buses, police cars, steamships, etc. For the sake of safety, TS-210 is sure to be your best choice.
1) Video input: 4channels(PAL), PWL:1.0Vp-p,Impedance:75Ω,Support monochrome/color cameras
2) Video output: 1channel(PAL),PWL:1.0Vp-p,Impedance:75Ω
3) Audio input: 4 channels, Linearity PWL:1.0-2.2vp-p , Impedance: 600Ω
4) Audio output: 1 channel or 4 channel,Linearity PWL:1.0-2.2vp-p , Impedance: 600Ω
5) Real-time surveillance : PAL: 100 fps , NTSC: 120 fps ,synchronous video/audio
6) Real-time resolution :D1 per channel
7) Surveillance: 1 picture / 4 pictures
8) Compression : H.264
9) Compress Resolution: PAL:100f,NTSC:120f
10) 4channels D1,independent record
11) Picture quality:pre-set 8 gears,data rate adjustable
12) Hard disk storage: SATA port,Support 2.5 SATA HDD, 1TB maximum, Drawer-type design.
13) Record mode: sensor,programmed,motion;
14) support 4channels video/4channels audio record in sync
15) Search mode : time ,date and events;
16) Support 4channels video/4channel audio search/play in sync
17) Support 1channel amplifying playback and 4channels in sync
18) Back-up:Support USB Backup.
19) Peripheral Component Interconnect:1 USB HOST port for recording data back-up.
20) 1 SATA HDD port
21) 1 infrared remote port
22) Power input: DC8-48V,Power switch,Over-current, over-voltage protection, time-lapse turn off function.
23) Power output:DC12V for camera, pickup or velocity sensor
24) Anti-vibration design:double Anti-vibration
25) Work Temp:-20degree to +60degree
26) Work Humidity:10%-95%
27) Size:196(W)x172(L)x45(H)mm
Mini TS-210 DVR series save you space and give you safety.
