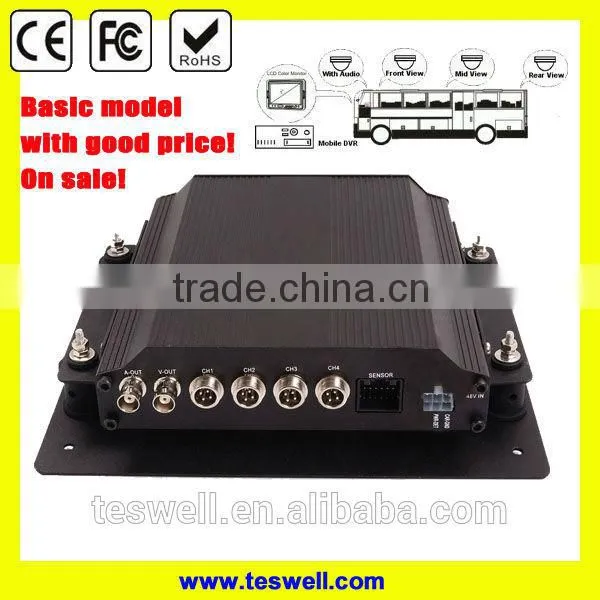

H.264 Compression Linux Embeded 3G Remote Realtime Monitoring Truck Transport Mobile DVR TS210
Teswell( /en/) TS-210 series combine the advantages of traditional DVRs with the most advanced GPS and 3G technologies. With TS-210, live surveillance, realtime tracking, drive record, alarm remind etc. are at hand. They are perfectly suitable for buses, coaches, trucks, police cars, steamships, etc. For the sake of safety, let TS-210 be your guardien angel.
What's better is that the TS-210 series are perfect for alarm situation. If you've already connected a panic button to the alarm input and a speaker to the audio output, once the button is pressed, the speaker will cry, one channel on the CMS will enlarge to the whole screen automatically, alarm sound will shout, and alarm record will be made. In this case, you can handle the emergency timely and properly.
Optional functions: GPS/3G/RJ45/RS485/RS232/G-sensor/SD/Motion-detection
Items |
Performance Index |
Item Name |
4 Channel Mobile DVR(HDD Storage) |
Solutions |
H.264 Main Profile |
System | |
Operation Language |
Chinese / English |
Operation Interface |
Graphical Interfaces |
Password Control |
User Password |
Video | |
Video Input |
4ch Independent Input: 1.0Vp-p,75Ω.Both B&W and Color Cameras |
Video Output |
1 Channel PAL/NTSC Output, 1.0Vp-p,75Ω, Composite Video Signal |
Video Display |
1 Or 4 Screen Display |
Viedo Standard |
PAL:25frames/Sec;NTSC:30frames/Sec |
System Resources |
PAL:100 Frames; NTSC:120 Frames |
Audio | |
Audio Input |
Four Channels Independent Input 600Ω |
Audio Output |
1 Channel(4 Channels Can Be Convert Freely) |
Basic Output Level |
1.0—2.2V |
Distortion Plus Noise |
≤-30dB |
Recording Mode |
Sound And Image Synchronization |
Audio Compression |
ADPCM |
Digital Processing & Storage | |
Image Compression |
H.264 Fixed Code Stream |
Image Format |
4*CIF (352*288), or 4*HD1(704*288), or 4*D1(704*576) |
Video Stream |
CIF: 8K-64Kbyte/s; HD1 & D1: 32K-96Kbyte/s; |
Video Taking Up Of Hard Disk |
CIF: 28M-230Mbyte / hour / channel |
HD1 & D1: 115M-340Mbyte / hour / channel | |
Resolution |
Playback 1 Channel |
Video Streaming Standard |
H.264 Main Profile |
Audio Bitrate |
4Kbyte / s / channel |
Audio Taking Up Of Hard Disk |
14Mbyte / hour / channel |
Internal Storage |
1 SATA Hard Disk,Support Max 2T Hard |
Image Quality |
Eight Grades to Choose |
Alarm | |
Alarm in |
4 Channels Independent Input. High Voltage Trigger |
Interface | |
USB Port |
Available For USB Disk and Hdd(FAT32)Storage |
GPS,3G |
Vehicle Tracking and Data Wireless Upload |
Others | |
Power Consumption |
DC8-48v 5% 8W(without HDD) |
Working Temperature |
-20°C ~ +60°C |
Clock |
Built-In Clock, Calendar |
Packaging | |
Product Size |
213(L)*230(W)*63(H)mm(with Holder) |
Product Weight |
1.9KG(without HDD) |
Package |
Each In a Box, 10set/Canton |
Box Size |
252(L)*93(W)* 250(H)mm |
Carton Size |
500(L)*265(W)* 520(H)mm |
Carton Weight |
19kgs/21kgs (without HDD) |
|
