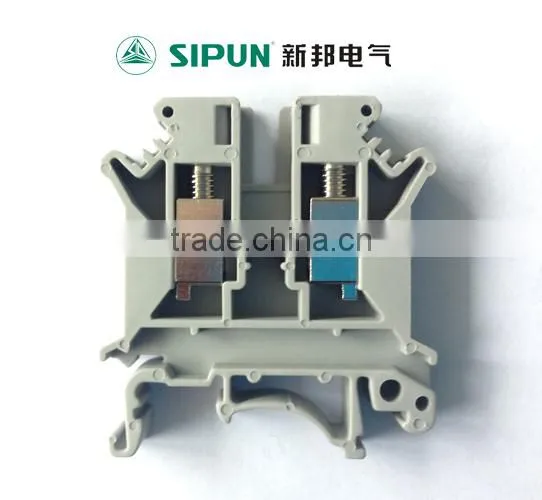

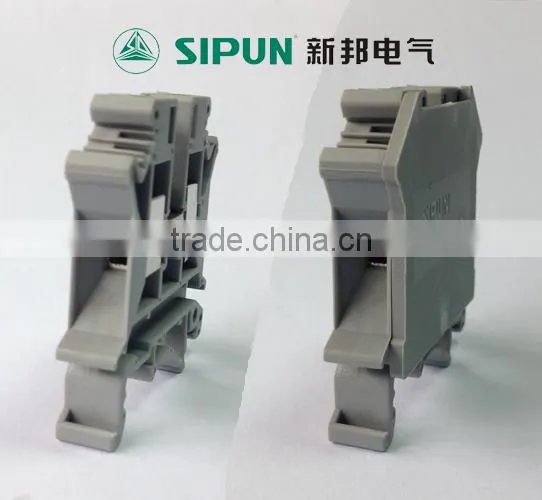

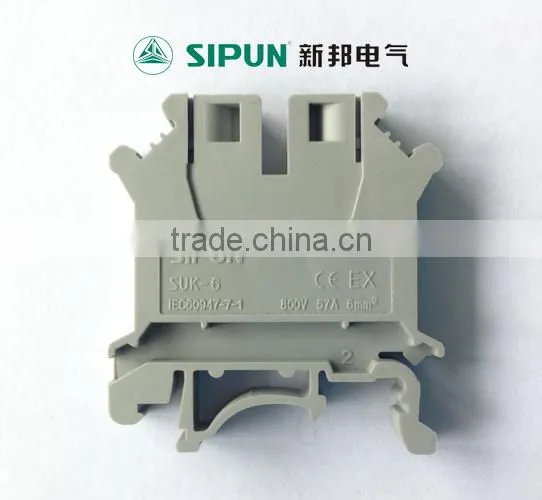

PA66 din rail terminal block 6mm
1.General specifications SUK-6 terminal blocks Compliance with international standards : IEC60947-7-1.
2.Wire range : rigidity wire : 0.2-10mm, flexibility wire : 0.2-6mm.

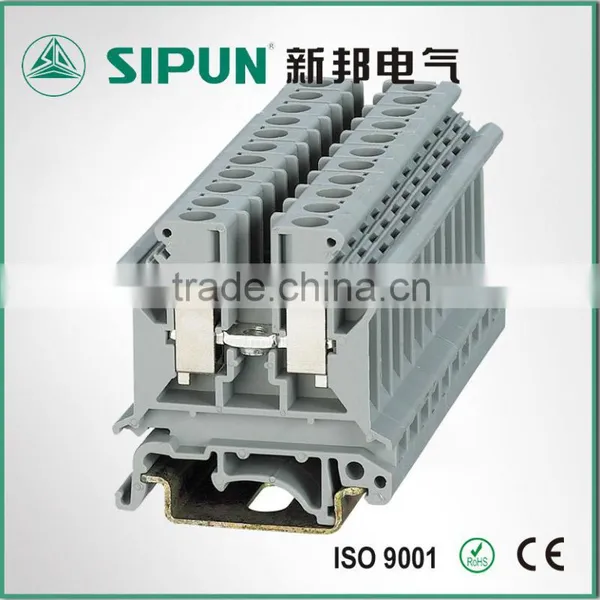

3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
| Model Number | SUK-6 |
| T/W/H(mm) | 8.2*43*46 |
| Clamping screw | M4 |
| Torque | 1.5-1.8NM |
| Stripping Length | 10mm |
| Rated Voltage | 800V |
| Reted Current | 57A |
| Cross Section | 6mm2 |
| Wire cross section, solid core | 0.2-10mm2 |
| Wire cross section, stranded | 0.2-6mm2 |
| Packaging Detail | 100pcs/box;1600pcs per carton |
| Certification | CE/RoHS/EX |
We can customize your color
To see SN series
To see ST3 series
To see SEK series
Certificate:
Q: What's your MOQ?
A: For terminal block 2.5-6mm², MOQ is 100pcs. Because it's 100pcs/box. for 10mm² or 16mm² can be 50pcs/box.
Q: What's the delivery time?
A: It can be 3~15 days usually.
Q: What's the difference of these terminal block?
A: Our SUK series is high quality, brass screw and copper conductor. SEK is brass screw and conductor. But they all can replace each other.
Q: Can you do OEM?
A: Yes we can.
Q: Can I have a sample ?
A: Of couse, sample will be free, but you need pay for the freight cost.
Q: Can i get your e-catalog?
A: You can find it in our homepage, or you can give me a inquiry, i will send it to your email.
Come to our homepage
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
