Phoenix Type 2 Level SUK-4 Din Rail Terminal Block

Name: Phoenix Type 2 Level SUK-4 Din Rail Terminal Block
Brand: sipun
SKU: 105087015
Availability: InStock

Yueqing Sipun Electric Co., Ltd.

Phoenix Type 2 Level SUK-4 Din Rail Terminal Block thumbnail-1

Phoenix Type 2 Level SUK-4 Din Rail Terminal Block photo-1

US$ 0.14 - 0.14 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

sipun

Model Number:

SUK-4/2-2

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name sipun

Model Number SUK-4/2-2

Type Screw Terminal

phoenix type 2 level SUK-4 din rail terminal block

Descruotion:

1.General specifications SUK-4 terminal blocks Compliance with international standards : IEC60947-7-1

2.Wire range : rigidity wire : 0.2-4mm, flexibility wire : 0.2-4mm.

3.Terminal can used in TH35 and G32 rail.

4.Insulation material is PA66, Antiflaming and anticorrosion.

5.Small volume, complete range of articles.

6.self locking function, crimping fastness.

Specifications:

Model Number	SUK-4/2-2

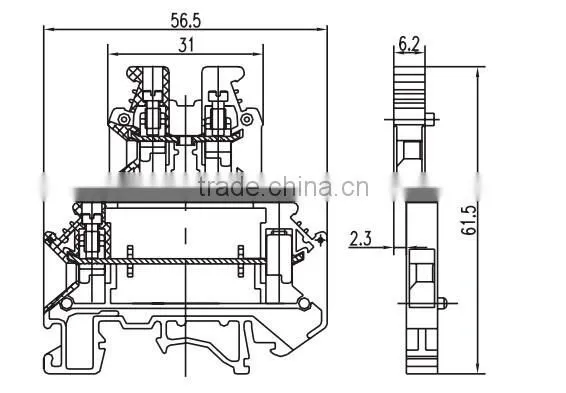

T/W/H(mm)	6.256.561.5
Clamping screw	M3
Torque	0.6-0.8NM
Stripping Length	8mm
Rated Voltage	500V
Reted Current	32A
Cross Section	4mm2
Wire cross section, solid core	0.2-4mm2
Wire cross section, stranded	0.2-4mm2
Packaging Detail	100pcs/box;2500pcs per carton
Certification	CE/RoHS/EX

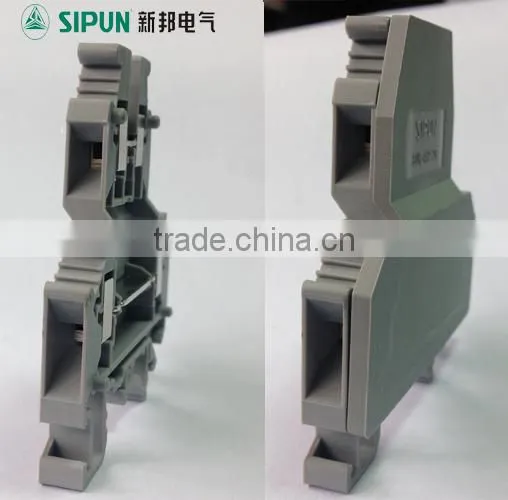

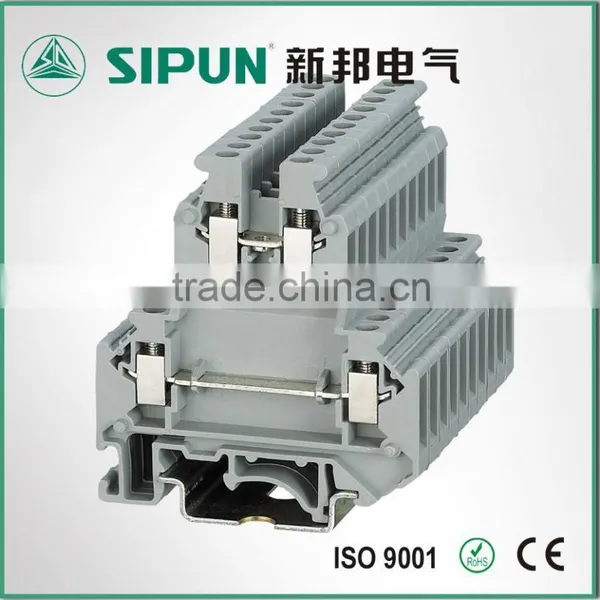

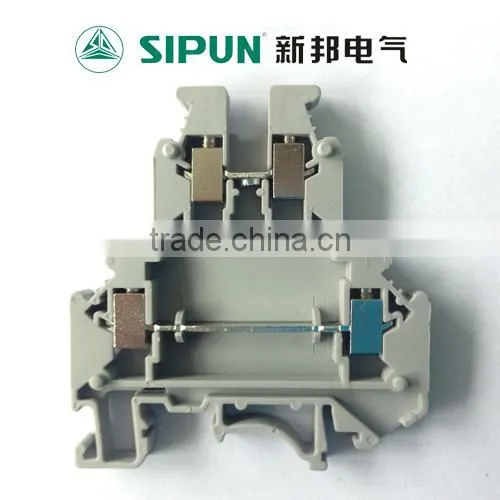

Product shows:

we can customize your color:

Parts:

Compare with others:

Wiring diagram:

Installation:

Our workshop:

Pacagking:

Certificate:

We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
