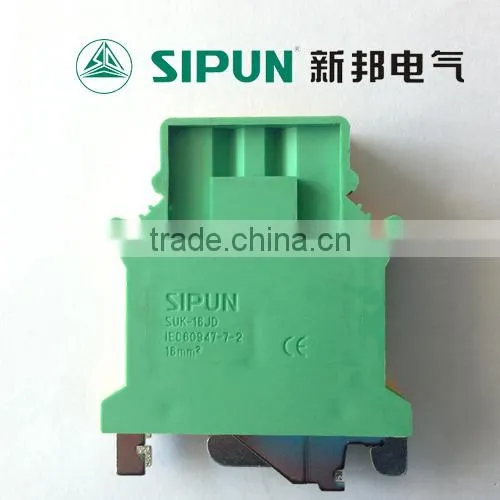

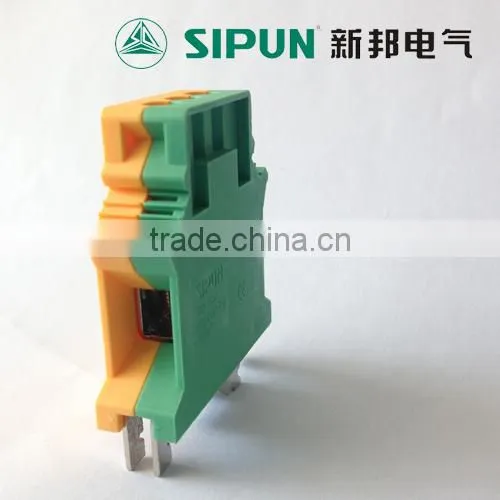

SUK16 grounding din rail screw type terminal block
Descruotion:
1.General specifications SUK-16JD terminal blocks Compliance with international standards : IEC60947-7-1
2.Wire range : rigidity wire : 2.5-25mm, flexibility wire : 4.5-16mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
Specifications:
| Model Number | SUK-16JD |
| T/W/H(mm) | 12.2*42.5*53 |
| Clamping screw | M4 |
| Torque | 1.5-1.8NM |
| Stripping Length | 11mm |
| Cross Section | 16mm2 |
| Wire cross section, solid core | 2.5-25mm2 |
| Wire cross section, stranded | 4-16mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |
SUK-JD series can be install in TH35 and G32 rail. have international standard grounding color ( kelly ), conform to IEC60947-7-2. bottom have screw, connect to the ground lead. handiness and simplicity.

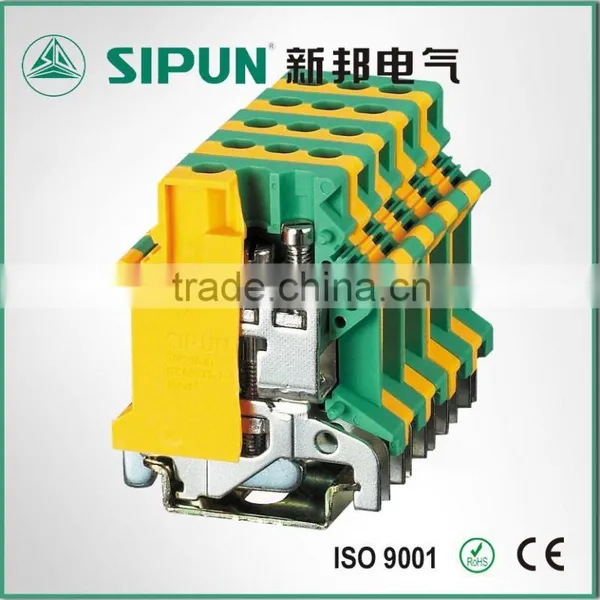

Product shows:

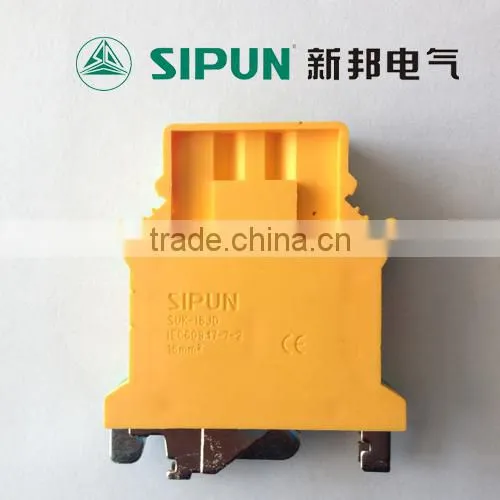

we can customize your color:
Parts:
Compare with others:
Wiring diagram:
Installation:
Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
