TESWELL is a leading provider for DVRs with SD card storage / HDD storage, D1 / 960H / 1080P real time recording, We have many advantages over other comanys :
Specification for TS-820 serious:
Video |
Video Input |
4ch Independent Input: 1.0Vp-p,75Ω.Both B&W and Color Cameras |
|
Video Output |
1 Channel PAL/NTSC Output, 1.0Vp-p,75Ω, Composite Video Signal |
|
Video Display |
1 Or 4 Screen Display |
|
Video Standard |
PAL:25frames/Sec;NTSC:30frames/Sec |
|
System Resources |
PAL:100 Frames; NTSC:120 Frames |
Audio |
Audio Input |
Four Channels Independent Input 600Ω |
|
Audio Output |
1 Channel(4 Channels Can Be Convert Freely) |
|
Basic Output Level |
1.0—2.2V |
|
Distortion Plus Noise |
≤-30dB |
|
Recording Mode |
Sound And Image Synchronization |
|
Audio Compression |
ADPCM |
Digital Processing & Storage |
Image Compression |
H.264 Fixed Code Stream |
|
Image Format |
PAL:4*CIF (352*288), or 4*HD1(704*288), or 4*D1(704*576) NTSC:4*CIF (352*240), or 4*HD1(704*240), or 4*D1(704*480) |
|
Video Stream |
CIF: 24K-112KByte/s; HD1 & D1: 24K-192KByte/s; |
|
Video Taking Up Of Hard Disk |
CIF: 85M-394MByte / hour / channel HD1 & D1: 85M-675MByte / hour / channel |
|
Playback Resolution |
PAL:1 or 4*CIF (352*288); 1 or 4*HD1(704*288); 1 or 4*D1(704*576) NTSC:1 or 4*CIF (352*240); 1 or 4*HD1(704*240); 1 or 4*D1(704*480) |
|
Audio Bitrate |
4KByte / s / channel |
|
Audio Taking Up Of Hard Disk |
14MByte / hour / channel |
|
SD Storage |
Double SD card storage, Support Max 2* 64GB |
|
Image Quality |
Eight Grades to Choose |
Alarm |
Alarm in |
4 Channels Independent Input. High Voltage Trigger |
|
Alarm out |
1 Channels Independent output |
|
Move Detect |
|
USB Interface |
Host Access |
Can Expand One For USB Disk Backup |
|
Network Interface |
Wire line Access |
Can Expand One RJ45 Ethernet Port |
|
WIFI |
Can Expand One WIFI Module Outside |
|
3G |
Can Expand One WCDMA or CDMA2000 Module Inside |
GPS Interface |
GPS |
Option |
Extend Interface |
RS232 |
Option |
|
RS485 |
Option |
|
Intercom |
Option |
|
G-Sensor |
Option |
|
Can-bus |
Option |
Others |
Power Consumption |
DC8-36V 5% 8W(without HDD) |
|
Working Temperature |
-20℃ ~ +85℃ |
|
Clock |
Built-In Clock, Calendar |
Packaging |
Product Size |
154(L)*190(W)*52(H)mm |
|
Product Weight |
0.9KG(without HDD) |
|
Package |
Each In a Box, 10set/Canton |
|
Box Size |
220(L)*110(W)* 175(H)mm |
|
Carton Size |
580(L)*470(W)* 200(H)mm |
|
Carton Weight |
12kgs/15kgs (without HDD) |
We have the certificates as bellow:
Our Mobile DVRs have been widely use in all kinds of vehicles :bus , school bus, truck, police car etc

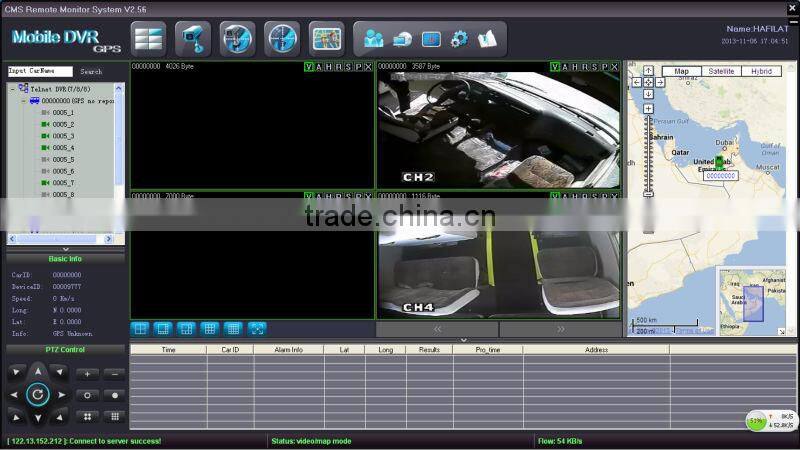

We have the free sofware for monitoring & playback ( CMS & DVR _Player ) , for PC / iphone / andriod system
We have the accessories as well, for one-stop shopping :
We can provide you the whole solution for the vehicle security:
We have attand many exhibitions. The 1080p real time recording models were very popular in the ISC West ( Las Vegas show), which with 4 channels full HD.
If you want to know more inforamtoion, please contact us freely , skype will keep 24 hours online : teswell_sales3
Why do you Choose us?
We are integrated factory which specialized in R&D Manufacture and Sales of of vehicle digital security and surveillance system products such as mobile digital hard disk recorders, mobile DVRs, vehicle DVRs, color CCD cameras, IR waterproof cameras, dome CCD cameras, DVR LCD displays and so on.
1. We supply the products in accordance with your requirement
2. Supply you with high quality and competitive price and promise profitable products and long time relationship
3. Humanized product design and perfect Quality Ensure System
4. Your ODM/OEM orders are welcome !
If you have any questions please contact us by email or TradeManager.
Most emails/messages are responded within 24 hours.
