Specifications
1.Certification: RoHS,Ex,CE2.The range of wire : 2.5mm
3.high quality and competitive price
4.Standard:IEC60947-7-1,ISO9001
din rail cage spring double deck terminal connector
Descruotion:
1.General specifications ST3-2.5/2-2 spring terminal Compliance with international standards : IEC60947-7-1
2.Wire range : rigidity wire : 0.2-4mm, flexibility wire : 0.2-2.5mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
Specifications:
| Model Number | ST3-2.5/2-2 |

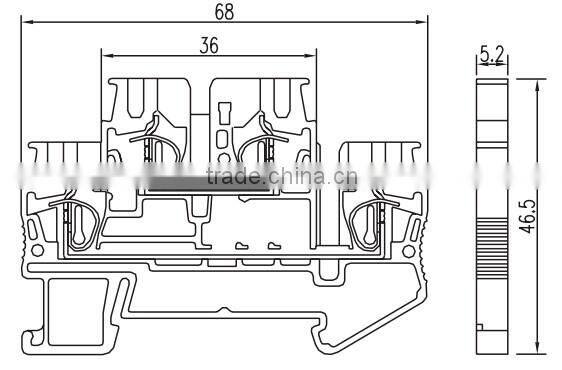

| T/W/H(mm) | 5.2*68*46.5 |
| Stripping Length | 10mm |
| Rated Voltage | 800V |
| Reted Current | 24A |
| Cross Section | 2.5mm2 |
| Wire cross section, solid core | 0.2-4mm2 |
| Wire cross section, stranded | 0.2-2.5mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |

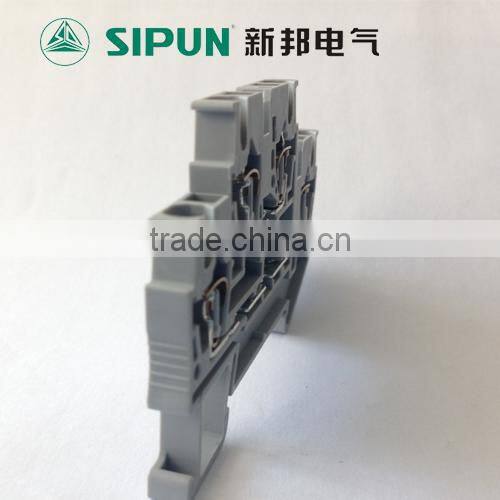

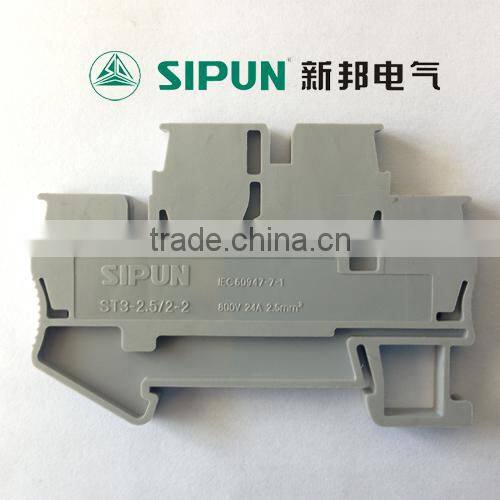

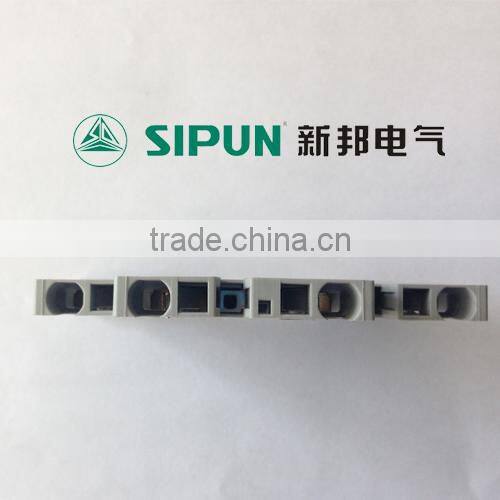

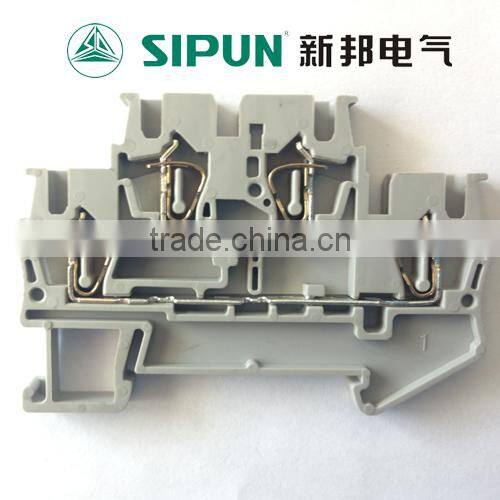

Product shows:
we can customize your color:

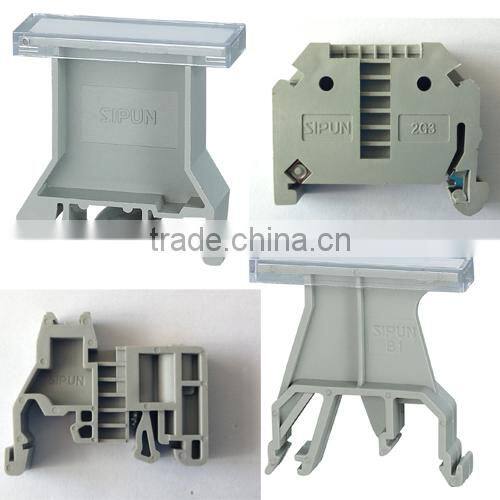

Parts:
Compare with others:
Wiring diagram:

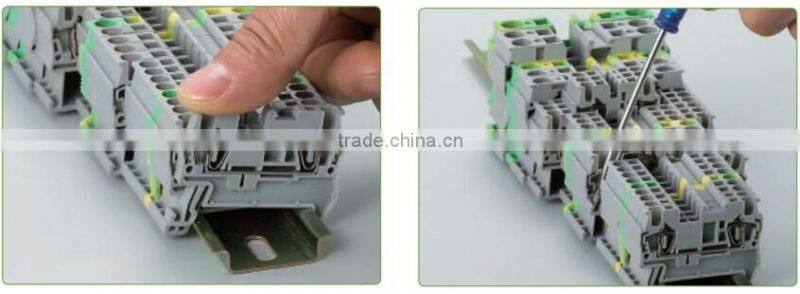

Installation:
Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
