Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > 4ch Mobile Dvr HD 1080P SDI DVR Full hd 1080p Cctv Dvr Digital Video Recorder

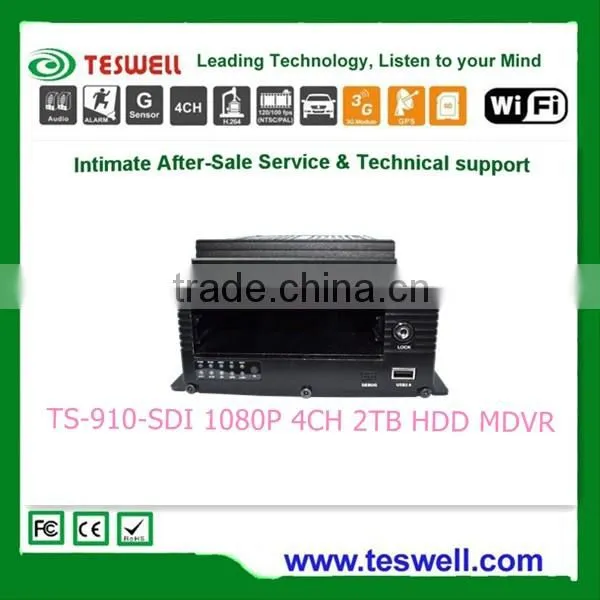

4ch Mobile Dvr HD 1080P SDI DVR Full hd 1080p Cctv Dvr Digital Video Recorder

Name: 4ch Mobile Dvr HD 1080P SDI DVR Full hd 1080p Cctv Dvr Digital Video Recorder
Brand: TESWELL
SKU: 105082635

4ch Mobile Dvr HD 1080P SDI DVR Full hd 1080p Cctv Dvr Digital Video Recorder thumbnail-1

4ch Mobile Dvr HD 1080P SDI DVR Full hd 1080p Cctv Dvr Digital Video Recorder photo-1

US$ 330 - 600 MOQ: 2 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

TESWELL

Model Number:

TS-910-SDI

Contact Supplier Request Quote Chat Now

Shenzhen Teswell Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name TESWELL

Model Number TS-910-SDI

Specifications

Upgrade through USB , easy to maintain.
Protect by password, to avoid data damage.
Watch dog function to avoid system crush

4ch mobile dvr HD 1080P SDI DVR full hd 1080p cctv dvr digital video recorder

Optional functions:

Basic Type (C:Pin Aviation Connector)

+A: GPS Function +B: 3G Function

+C: Pin Aviation Connector +D: RS485&RS232

+E: Lan Port +G:G-Sensor Function

+H: Intercom Function +W:Wifi Function +K:Canbus

1. Technical Parameters

Items	Device parameters	Performance index
Name	Product Name	4 Channel Mobile DVR(HDD Storage)
System	Operation System	Linux
	Operation Interface	Graphical Interfaces, Chinese/English optional
	File System	Proprietary Format
	System Privileges	User Password
Video	Video Input	4ch SDI Independent Input: 1.0Vp-p,75Ω.Both B&W and Color Cameras
	Video Output	1 Channel PAL/NTSC Output, 1.0Vp-p,75Ω, Composite Video Signal
	Video Display	1 Or 4 Screen Display
	Video Standard	PAL:25frames/Sec;NTSC:30frames/Sec
	System Resources	PAL:100 Frames; NTSC:120 Frames
Audio	Audio Input	Four Channels Independent Input 600Ω
	Audio Output	1 Channel(4 Channels Can Be Convert Freely)
	Basic Output Level	1.0—2.2V
	Distortion Plus Noise	≤-30dB
	Recording Mode	Sound And Image Synchronization
	Audio Compression	ADPCM
Digital Processing & Storage	Image Compression	H.264 Fixed Code Stream
	Image Format	41080P(19201080)
	Video Stream	1.0M-6.0Mbit/s
	Video Taking Up Of Hard Disk	450M-2.6GByte/hour
	Playback Resolution	1or4*1080P
	Audio Bitrate	4KByte / s / channel
	Audio Taking Up Of Hard Disk	14MByte / hour / channel
	HDD Storage	Support Max 2TB
	Image Quality	Eight Grades to Choose
Alarm	Alarm in	8 Channels Independent Input. High Voltage Trigger
	Alarm out	2 Channels Independent output
	Move Detect	available
USB Interface	Host Access	Can Expand One For USB Disk Backup
Network Interface	Wire line Access	Can Expand One RJ45 Ethernet Port
	Wifi	Can Expand One Wifi Module Inside
	3G	Can Expand One WCDMA or CDMA2000 Module Inside
GPS Interface	GPS	Can Expand GPS Module Inside
Extend Interface	RS232	Extensible,it is convenient to connect with other vehicle equipment
	RS485	Extensible,it is convenient to connect with other vehicle equipment and PTZ Camera
	Intercom	Can Expand Intercom Module Inside
	G-Sensor	Can Expand G-Sensor Module Inside
	Canbus	Can Expand Canbus Module Inside
Others	Power Consumption	DC8-36V 5% ≤12W
	Working Temperature	-20°C ~ +85°C ≤80%
	Clock	Built-In Clock, Calendar
Packaging	Product Size	245(L)190(W)71(H)mm(with Holder)
	Product Weight	2.8KG(without HDD)
	Package	Each In a Box, 5 set/Canton
	Box Size	245(L)190(W) 71(H)mm
	Carton Size	650(L)375(W) 255(H)mm
	Carton Weight	14kgs/ 18kgs (without HDD)
