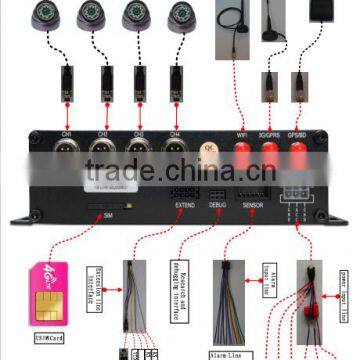

HDD/GPS/GSM/GPRS /wifi/3g realtime tracking 4ch MDVR
- mobile dvr used for any vehicles
- Double SD card storage max 128GB each
- 4CH D1/HD1/CIF video formats with dual frame rate
- 4-CH A/V in, 1CH AV out. Audio and video synchronous processing
- DC 8-36V wide voltage applicable for various types of vehicles
- 4CH alarm in, 1CH alarm out
- Dual shockproof- best product structure design
- Motion detection, various alarming ways: manual record, time record, motion detection record, alarm and abnormal alarm record
- Optional GPS, 3G, 4G, WIFI functions
- 1 pcs RS232, RS485, 1pc USB2.0 port, much extend ports
- support outer extend, such as LED screen, ID reader,people counting etc.
- support remote download and playback
- support intercon,pre-alarm, record speed,GPS position,video rearview.
- FREE software
FREE CMS SOFTWARE
Items |
Device parameters |
Performance index |
Name |
Product Name |
4 Channel Mobile DVR(2 sd card Storage) |
System |
Operation System |
Linux |
Operation Interface |
Graphical Interfaces, Chinese/English optional |
|
File System |
Proprietary Format |
|
System Privileges |
User Password |
|
Video |
Video Input |
1-4chIndependent Input: 1.0Vp-p,75Ω |
Video Output |
1 Channel PAL/NTSC Output, 1.0Vp-p,75Ω, Composite Video Signal |
|
Video Display |
1 Or 4 Screen Display |
|
Video Standard |
PAL:25frames/Sec;NTSC:30frames/Sec |
|
System Resources |
PAL:100 Frames; NTSC:120 Frames |
|
Audio |
Audio Input |
Four Channels Independent Input 600Ω |
Audio Output |
1 Channel(4 Channels Can Be Convert Freely) |
|
Basic Output Level |
1.0—2.2V |
|
Distortion Plus Noise |
≤-30dB |
|
Recording Mode |
Sound And Image Synchronization |
|
Audio Compression |
ADPCM |
|
Digital Processing & Storage |
Image Compression |
H.264 Fixed Code Stream |
Image Format |
PAL:4*CIF (352*288), or 4*HD1(704*288), or 4*D1(704*576) NTSC:4*CIF (352*240), or 4*HD1(704*240), or 4*D1(704*480) |
|
Video Stream |
1.0M-6.0Mbit/s |
|
Video Taking Up Of Hard Disk |
450M-2.6GByte/hour |
|
Playback Resolution |
1or4*1080P |
|
Audio Bitrate |
4KByte / s / channel |
|
Audio Taking Up Of Hard Disk |
14MByte / hour / channel |
|
2 sd card Storage |
each Max 128GB |
|
Image Quality |
Eight Grades to Choose |
|
Alarm |
Alarm in |
4 Channels Independent Input. High Voltage Trigger |
Alarm out |
1Channel Independent output |
|
Move Detect |
available |
|
USB Interface |
Host Access |
Can Expand One For USB Disk Backup |
|
Network Interface |
Wire line Access |
Can Expand One RJ45 Ethernet Port |
Wifi |
Can Expand One Wifi Module Inside |
|
3G |
Can Expand One WCDMA or CDMA2000 Module Inside |
|
GPS Interface |
GPS |
Can Expand GPS Module Inside |
Extend Interface |
RS232 |
Extensible,it is convenient to connect with other vehicle equipment |
RS485 |
Extensible,it is convenient to connect with other vehicle equipment and PTZ Camera |
|
Intercom |
Can Expand Intercom Module Inside |
|
G-Sensor |
Can Expand G-Sensor Module Inside |
|
Canbus |
Can Expand Canbus Module Inside |
|
Others |
Power Consumption |
DC8-36V 5% ≤12W |
Working Temperature |
-20°C ~ +85°C ≤80% |
|
Clock |
Built-In Clock, Calendar |
|
Packaging |
Product Size |
245(L)*190(W)*71(H)mm(with Holder) |
Product Weight |
2.8KG(without HDD) |
|
Package |
Each In a Box, 10sets/Canton |
|
product Size |
154(L)*190(W)* 52(H)mm |
|
Carton Size |
580(L)*465(W)* 200(H)mm |
|
Carton Weight |
1.1kg /pc (without HDD) |
- Powerful R&D team
- Industry experience for 7 years
- Complete product range
- Excellent quality and competitive price
- Professional sales service and after-sale service
- High efficiency to meet your requirements
- Customized service(ODM and OEM are welcome)
