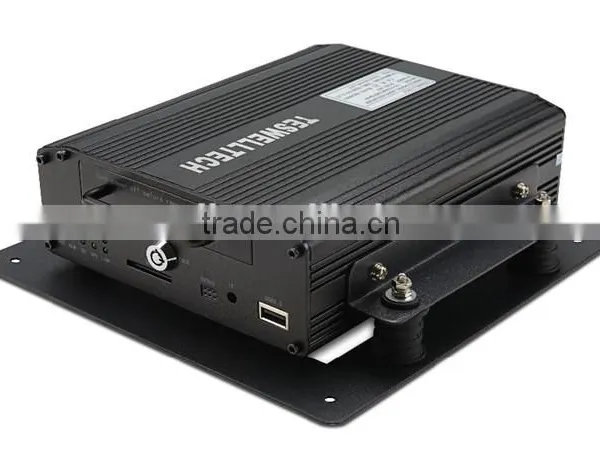

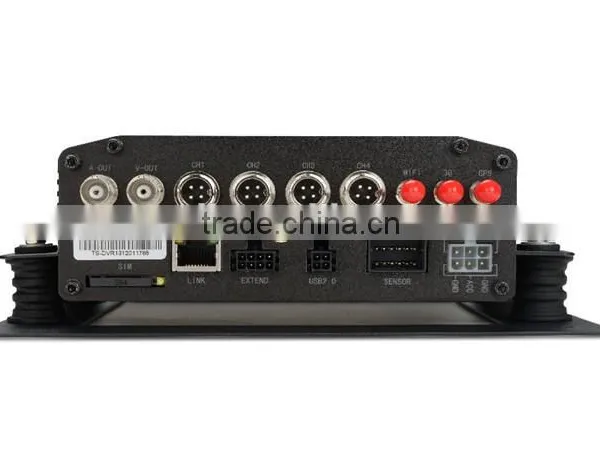

4ch HDD mobile dvr h.264 3g wifi gps gsensor mdvr used for bus, taxi,police car, any vehicle.
- HDD mdvr, 2.5 inch HDD max I TB, support HDD & SD card dual storage
- 4ch full D1,HD1,cif recording in real time
- More attractive menu interface,more detailed items
- 4-CH A/V in, 1CH AV out. Audio and video synchronous processing
- support remote download and playback, video can be accurate to seconds
- Motion detection, pre-alarm record and alarm linkage
- Built in 3G/4G,WIFI,GPS,G-sensor module to be optional
- can record speed, GPS position,acceleration, emergent brake, video rearview,swerve view,alarm etc
- TES correction encrypted file management system, no video loss and protect data in 2s before power sudden off
- Support outer extend,like LED screen,ID reader,schedule monitor,passenger statistic
- DC 8 -36V wide voltage applicable for various types of vehicle
- Dual shockproof- best product structure design
- FREE SOFTWARE
Product Overviews
FREE CMS SOFTWARE
Items |
Device parameters |
Performance index |
Name |
Product Name |
4 Channel Mobile DVR(HDD Storage) |
Product Number |
TS-610C/A/B/D/E/F/G/H/K/W |
|
System |
Operation System |
Linux |
Operation Interface |
Graphical Interfaces,Chinese/English optional |
|
File System |
Proprietary Format |
|
System Privileges |
User Password |
|
Video |
Video Input |
4ch Independent Input: 1.0Vp-p,75Ω.Both B&W and Color Cameras |
Video Output |
1 Channel PAL/NTSC Output, 1.0Vp-p,75Ω, Composite Video Signal |
|
Video Display |
1 Or 4 Screen Display |
|
Viedo Standard |
PAL:25frames/Sec;NTSC:30frames/Sec |
|
System Resources |
PAL:100 Frames; NTSC:120 Frames |
|
Audio |
Audio Input |
Four Channels Independent Input 600Ω |
Audio Output |
1 Channel(4 Channels Can Be Convert Freely) |
|
Basic Output Level |
1.0—2.2V |
|
Distortion Plus Noise |
≤-30dB |
|
Recording Mode |
Sound And Image Synchronization |
|
Audio Compression |
ADPCM |
|
Digital Processing & Storage |
Image Compression |
H.264 Fixed Code Stream |
Image Format |
PAL:4*CIF (352*288), or 4*HD1(704*288), or 4*D1(704*576) NTSC:4*CIF (352*240), or 4*HD1(704*240), or 4*D1(704*480) |
|
Video Stream |
CIF: 24K-112KByte/s; HD1 & D1: 24K-192KByte/s; |
|
Video Taking Up Of Hard Disk |
CIF: 85M-394MByte / hour / channel HD1 & D1: 85M-675MByte / hour / channel |
|
Playback Resolution |
PAL:1 or 4*CIF (352*288); 1 or 4*HD1(704*288); 1 or 4*D1(704*576) NTSC:1 or 4*CIF (352*240); 1 or 4*HD1(704*240); 1 or 4*D1(704*480) |
|
Audio Bitrate |
4KByte / s / channel |
|
Audio Taking Up Of Hard Disk |
14MByte / hour / channel |
|
HDD Storage |
1 SATA Hard Disk,Support Max 2T Hard |
|
SD Storage |
Can Expand 1 SD Card , Support Max 32GB Hard |
|
Image Quality |
Eight Grades to Choose |
|
Alarm |
Alarm in |
4 Channels Independent Input. High Voltage Trigger |
Alarm out |
1 Channel Independent output |
|
Move Detect |
available |
|
USB Interface |
Host Access |
2 ,one Available For USB Disk and Hdd(FAT32)Storage,Another is alternate |
|
Network Interface |
Wireline Access |
Can Expand One RJ45 Ethernet Port |
Wifi |
Can Expand One Wifi Moduel Outside |
|
3G |
Can Expand One WCDMA or CDMA2000 Moduel Inside |
|
GPS Interface |
GPS |
Can Expand GPS Moduel Inside |
Extend |
RS232 |
Extensibile,it is convenient to connect with other vehicle equipment |
RS485 |
Extensibile,it is convenient to connect with other vehicle equipment and PTZ Camera |
|
Intercom |
Can Expand Intercom Moduel Inside |
|
G-Sensor |
Can Expand G-Sensor Moduel Inside |
|
Canbus |
Can Expand Canbus Moduel Inside |
|
Others |
Power Consumption |
DC8-48V 5% 8W(without HDD) |
Working Temperature |
-20°C ~ +60°C |
|
Clock |
Built-In Clock, Calendar |
|
Packaging |
Product Size |
212L)*210(W)*68(H)mm(with Holder) |
Product Weight |
1.9KG(without HDD) |
|
Package |
Each In a Box, 10sets/Canton |
|
Box Size |
295(L)*240(W)* 100(H)mm |
|
Carton Size |
505(L)*310(W)* 500(H)mm |
|
Carton Weight |
19kgs/22kgs (without HDD) |
