Help CenterAutomotive Relays Auto Relay 4 Pin 5 Pin12V 24V 40A WM730
Related Products
-
Wiper Relay 12V 24V 6 Pin WM WR01US$ 2 - 5MOQ: 500 Pieces -
Automotive Relay Wiper Relay for Truck 12V WM WR03US$ 2 - 5MOQ: 100 Pieces
-
Automotive Relay for Wiper Relay12V WM WR1930US$ 1.5 - 3MOQ: 100 Pieces
-
Automotive Relays Miniature Relay 4 Pin 12V 30A WM726US$ 0.5 - 1MOQ: 500 Pieces
-
Automotive Relays 12V 24V 40A 60A WM632US$ 0.5 - 1MOQ: 800 Pieces
P1 Features
1. Small size;
2. Contact load capacity up to 40A;
3. Quick connection type;
4. Suitable for automation system and automobile auxiliary etc.
P2 Ordering Information
WM730 |
- 12 |
- A |
- R |
|
|
|
1 |
2 |
3 |
4 |
|
|
|
|
1 Part number:WM730 2 Coil rated Voltage(VDC): 6: 6V;12: 12V;24: 24V 3 Contact Form: A: 1A;B: 1B;C: 1C 4 Coil transient suppression:D: with diode; R: with resistance; Nil: standard | ||||||
P3 Contact Data
Contact Form |
1A(SPSTNO),1B(SPSTNC),1C(SPDT(B-M)) |
||
Contact Material |
Ag Alloy |
||
Contact Rating (resistive) |
1A |
1B |
1C |
40A/14VDC |
30A/14VDC |
NO:40A/14VDC NC:30A/14VDC |
|
Max. Switching Voltage |
75VDC |
||
Max. Switching Current |
40 |
||
Max. Switching Power |
560W |
||
Contact Resistance or Voltage drop |
≤100mΩ |
||
Electrical Life |
1×105 cycles |
||
Mechanical Life |
1×107 cycles |
||
P4 Operation condition
Insulation Resistance |
100MΩ Min.(at 500VDC) |
|
Dielectric Strength |
Between Contacts |
50Hz 500VAC / 1 minute |
Between Coil and Contacts |
50Hz 750VAC / 1 minute |
|
Terminals strength |
100N |
|
Ambient Temperature |
-40℃ ~ +85℃ |
|
| Relative Humidity | 85% (at 40℃) | |

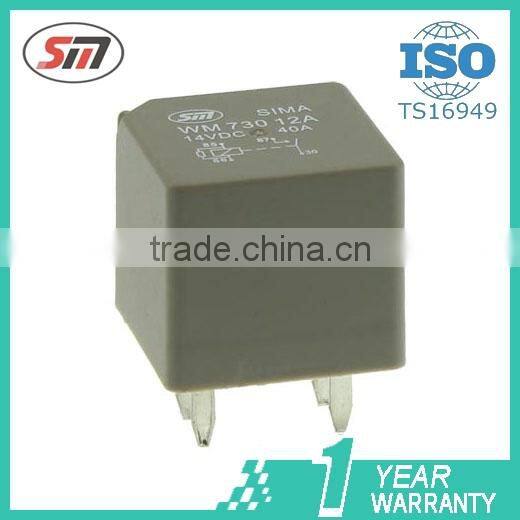

P5 Relay Photo
P6 Terminal Layout (Bottom views)
|
P7 Wiring diagram (Bottom views)
|
|
P8 Packing
20 pcs / inner box, 500 pcs / carton
P9 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P10 Our Factory
P11 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.
P12 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
