Help CenterAutomotive PTC High Voltage Auto Relay 12V 24V WM AC060
Related Products
-
Automotive Window Lifter Controller Auto Relay 12V 24V 6 Pin WM AC050US$ 2 - 4MOQ: 100 Pieces -
Automotive Fuel Controller Auto Relay 12V 24V WM AC010NegotiableMOQ: 100 Pieces
-
Automotive Start up Preheating Controller Auto Relay 12V 24V 15 Pin WM AC040NegotiableMOQ: 100 Pieces
-
Automotive Water Level Controller Auto Relay 12V 24V WM AC020NegotiableMOQ: 100 Pieces
-
Automotive Water Lift Controller Auto Relay 12V 24V WM AC030NegotiableMOQ: 100 Pieces
P1 Features
1. Miniature;
2.Terminal types as inserting;Quick connection;
3.Two power supply using 2000V isolation, no mutual interference;
4. Warning function inside if The internal contact short circuit;
5. Using special chip and the relay, stable and reliable performance;
6. Specially control PTC high voltage DC resistive load;
7. Contact rating power is 1600W, the Max. power up to 3000W.
P2 Ordering Information
WM AC060 |
- 12 |
96 |
|
|
1 |
2 |
3 |
|
|
|
1 Part number : WM AC060 2 Rated Voltage(VDC): 12: 12V; 24: 24V 3 DC resistive load voltage(VDC): 60: 60V; 72: 72V; 84: 84V; 96: 96V; 108: 108V
| ||||
P3 Operation condition
Rated Voltage |
12VDC ,24VDC |
Operating Voltage Range |
11VDC ~ 15VDC,22VDC ~ 30VDC |
Contact Rating (Power) |
1600W, MAX3000W |
Switching Frequency |
On > 2s,Off > 2s |
Electrical Life |
5×105 cycles (at on=5s, off=5s) |
Mechanical Life |
1×106 cycles |
|
|

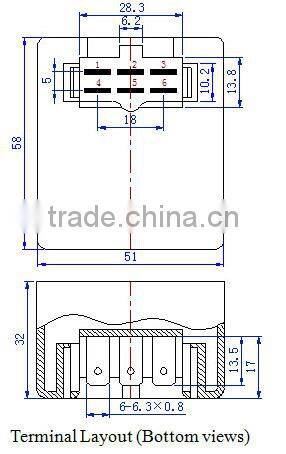

P4 Terminal Layout / Wiring diagram (Bottom views)
|

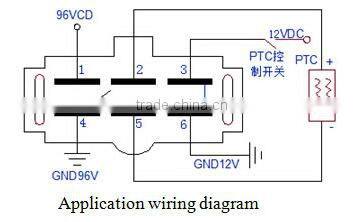

P5 Wiring diagram (Bottom views)
|

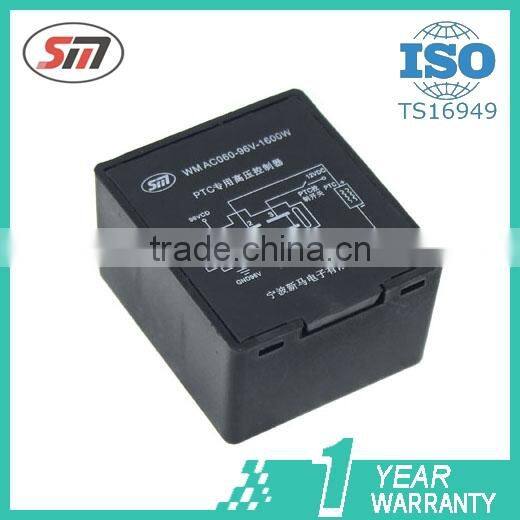

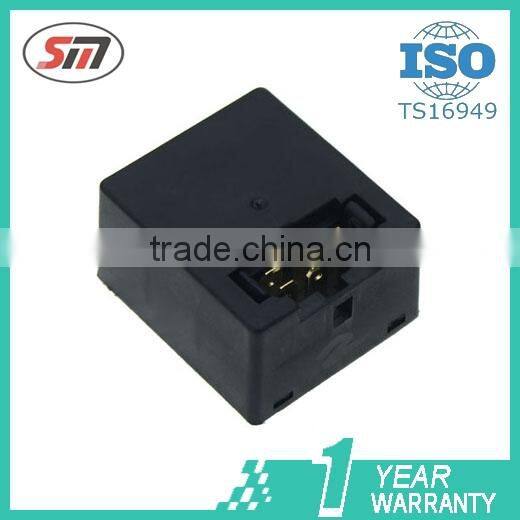

P6 PTC High Voltage Controller Relay Photo
|
|
P7 Packing
1 pcs / inner box, 100 pcs / carton
P8 Shipping
Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
P9 Our Factory
P10 Certificates
Our factory is ISO/TS16949 approved.
Has more than 10 patents.
P11 Equipments
Automatic and semi-automatic production lines.
Punctual delivery time:
a.We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
b. Shipping notice and photos sent to you as soon as your order is shipped.
After sales service:
a. We pay high attention to your feed back after receive the goods.
b. We provide 12 months warranty after goods arrive.
c. We positively revert your complain within 48hours.
Professional sales:
a. We value every inquiry sent to us, ensure quick competitive offer.
b. We cooperate with customer to bid tenders. Provide all necessary documents.
c. We are a sales team, with all technical support from engineer team.
d. We offer OEM/ODM service.
e. Trial orders are available.
f. Sample can be supplied in 7days.
