Concrete Spun Pole(Pile) Machinery(Spinning Machine)

Concrete Spun Pole(Pile) Machinery(Spinning Machine) thumbnail-1
Concrete Spun Pole(Pile) Machinery(Spinning Machine) thumbnail-2
Concrete Spun Pole(Pile) Machinery(Spinning Machine) thumbnail-3
Concrete Spun Pole(Pile) Machinery(Spinning Machine) thumbnail-4
Concrete Spun Pole(Pile) Machinery(Spinning Machine) thumbnail-5
Concrete Spun Pole(Pile) Machinery(Spinning Machine) thumbnail-6
Concrete Spun Pole(Pile) Machinery(Spinning Machine) photo-1
Concrete Spun Pole(Pile) Machinery(Spinning Machine) photo-2
Concrete Spun Pole(Pile) Machinery(Spinning Machine) photo-3
Concrete Spun Pole(Pile) Machinery(Spinning Machine) photo-4
Concrete Spun Pole(Pile) Machinery(Spinning Machine) photo-5
Concrete Spun Pole(Pile) Machinery(Spinning Machine) photo-6
US$ 1 - 5,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Success
Model Number:
Success-106
Contact Supplier Request Quote Chat Now
Changzhou Success Building Material Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Success
Model Number Success-106
After-sales Service Provided Engineers available to service machinery overseas

Our Automatical Prestressed Concrete Spun Pole/pile Production Line can make pole/pile range from 6,7,8,9,12,15,16,30m,design according to your demand

Overview

This machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.
This machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.

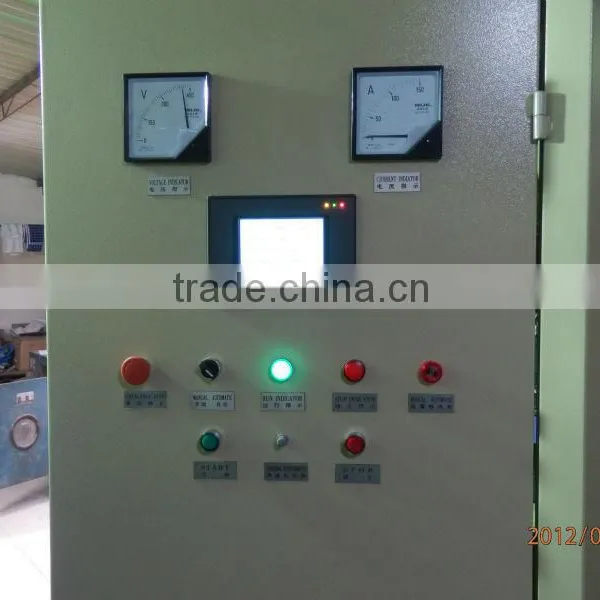

The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.

Working Principle

1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.
2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.
3. The speed of separation is slow when the viscosity of slurry is high.
4. It is good for centrifugal sedimentation when the slurry density is different in each component.




Features

1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).
2. Crack resistance can increase about 3~5 times.
3. Rigidity increases 1~3 times.
4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).
5. Good durability, can delay the existence and expansion of cracks.
6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.











Concrete Spun Pole(Pile) Machinery(Spinning Machine)      Concrete Spun Pole(Pile) Machinery(Spinning Machine)





Concrete Spun Pole(Pile) Machinery(Spinning Machine)     Concrete Spun Pole(Pile) Machinery(Spinning Machine)





Concrete Spun Pole(Pile) Machinery(Spinning Machine)    Concrete Spun Pole(Pile) Machinery(Spinning Machine)
