DC 48V Contactor Hight Voltage 100A 200A WM816

DC 48V Contactor Hight Voltage 100A 200A WM816 thumbnail-1
DC 48V Contactor Hight Voltage 100A 200A WM816 photo-1
US$ 14 - 20 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SM
Model Number:
WM816
Contact Supplier Request Quote Chat Now
Ningbo Wante Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SM
Model Number WM816
Electricity Type DC
Number of Pole 1
Phase 1
Main Circuit Rating Voltage Other, 12V,24V,48V
Product Description

P1 Features

 1.  Form A ( SPST-NO ) contact arrangement;

 2. Arc-cutoff technology- Double contacts in series and permanent magnet;

 3. Starting current is unnecessary;

 4. Compact and lightweight for space savings;

 5. DC-1 Utilization category, fulfill IEC 60947-4-1 / GB 14048.4;

 6. Typical applications: electric control system of electromobile, motor forklift, grab, vehicle air conditioner, communication power supply, Construction machinery, and UPS.



P2 Ordering Information

WM816

- 200A

12



1

  2

3



1 Part number:WM816

2Contact Rating:100A: 100A@48VDC;200A: 200A@48VDC

3 Coil rated Voltage(VDC):12: 12V;24: 24V;48: 48V



P3 Contact Data

Contact Form

1A(SPSTNO)

Contact Material

Silver alloy

Contact Rating (resistive)

100A/48VDC, 200A/48VDC

Minimum Switching Voltage

12VDC  1A

Max. Switching Power

4800W,9600W

Contact Resistance or Voltage drop

≤50mΩ@ 6V,1A

Electrical Life

20,000 cycles operates@ DC-1

Mechanical Life

100,000 cycles

Max Switching Rate

6 cycles/min (10% duty)



P4 Coil Parameter

Dash

numbers

Coil voltage

(VDC)

Coil resistance

Ω±10%

Pickup voltage

VDC(Max.)

Release voltage

VDC(Min.)

Coil power

Operate Time

Release Time

Rated

Max.

12V

12

13.2

29

7.8

0.6

5W

<25 ms

<10 ms

24V

24

26.4

115

15.6

1.2

48V

48

52.8

480

31.2

2.4



P5 Operation condition

Insulation Resistance

100MΩ Min.(at 500VDC)

Dielectric Strength

Between Contacts

50Hz 1500VAC / 1 minute

Between Coil and Contacts

50Hz 2000VAC / 1 minute

Surge Voltage between Coil-Contacts

5,000 V

Shock resistance

Functional: 5G/11ms, Destructive: 100G/6ms

Vibration resistance

Functional: 10~200Hz 5G , Destructive: 10~200Hz 5G

Ambient Temperature

-25℃ ~ +70℃

Relative Humidity

20% ~ 85% (at 40℃)

Installation direction

Vertical

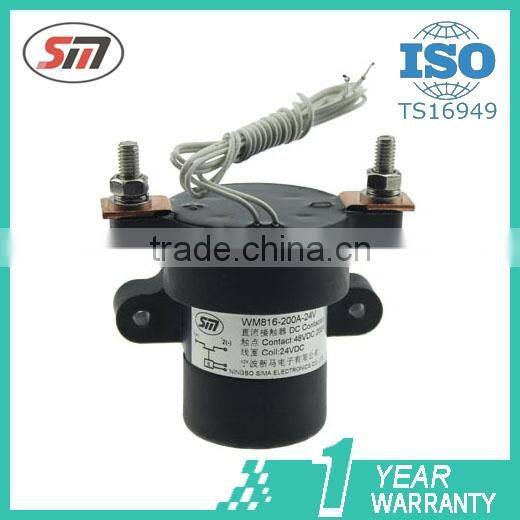

P6  Relay Photo

DC 48V Contactor Hight Voltage 100A 200A WM816

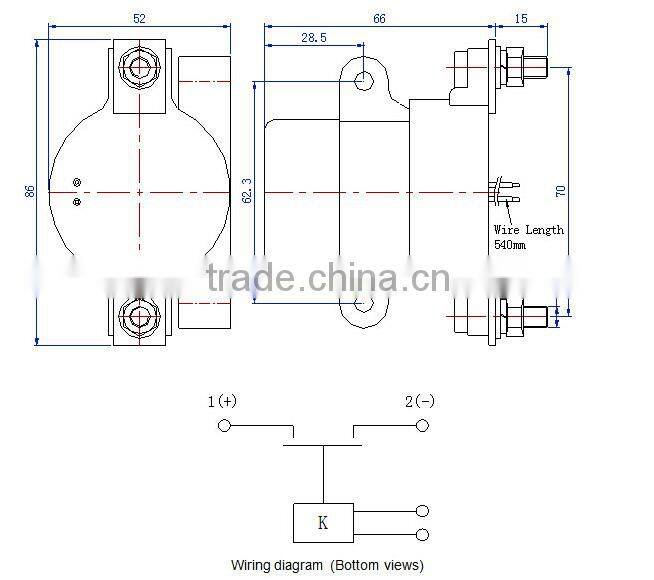

P7 Layout  (Bottom views, Unit: mm)



Dimensions / Wiring diagram (Bottom views)

 DC 48V Contactor Hight Voltage 100A 200A WM816









Packaging & Shipping

P8 Packing

              1 pcs / inner box, 50 pcs / carton

P9  Shipping

         Relay can be shipping by air, by sea and by Fedex, TNT, DHL,EMS, UPS etc.
