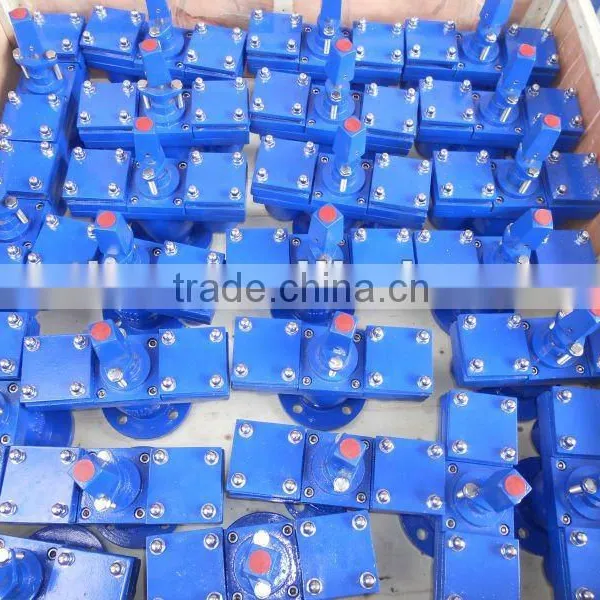

Cast Iron Double Orifice Air Release Valve
US$ 1 - 500
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, air
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Other, air
Pressure
Low Pressure
Power
Hydraulic
Material
Casting
Temperature of Media
Normal Temperature
Media
Water
Port Size
40mm-250mm
Place of Origin
Shandong, China
Brand Name
EATHU
cast iron double orifice air release valve
size :40mm-200mm
working pressure:PN10 PN16
design standard: DIN3352
Material list
Body cast iron GG25/GGG40
Bonnet cast iron GG25/GGG40
Cap cast iron GG25/GGG40
PN10 Maximum work pressue 10bar PN10 1.0Mpa
PN16 Maximum work pressue 16bar PN16 1.6Mpa
PN10 Working temperature max85°C PN10 85°C
PN16 Working temperature max120°CPN16 100°C
SIZE |
PN10 |
PN16 |
H |
||||||
D |
Do |
b |
Z-d |
D |
Do |
b |
Z-d |
||
in.1½ (40mm) |
150 |
110 |
18 |
4-18 |
150 |
110 |
18 |
4-18 |
248 |
in.2(50mm) |
165 |
125 |
20 |
4-18 |
165 |
125 |
20 |
4-18 |
263 |
in.2½ (65mm) |
185 |
145 |
20 |
4-18 |
185 |
145 |
20 |
4-18 |
292 |
in.3(80mm) |
200 |
160 |
22 |
4-18 |
200 |
160 |
22 |
8-18 |
320 |
in.4(100mm) |
220 |
180 |
22 |
8-18 |
220 |
180 |
24 |
8-18 |
366 |
in.5(125mm) |
250 |
210 |
24 |
8-18 |
250 |
210 |
26 |
8-18 |
405 |
in.6(150mm) |
285 |
240 |
24 |
8-23 |
285 |
240 |
26 |
8-23 |
443 |
in.8(200mm) |
340 |
295 |
26 |
8-23 |
340 |
295 |
30 |
12-23 |
515 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
