Specifications

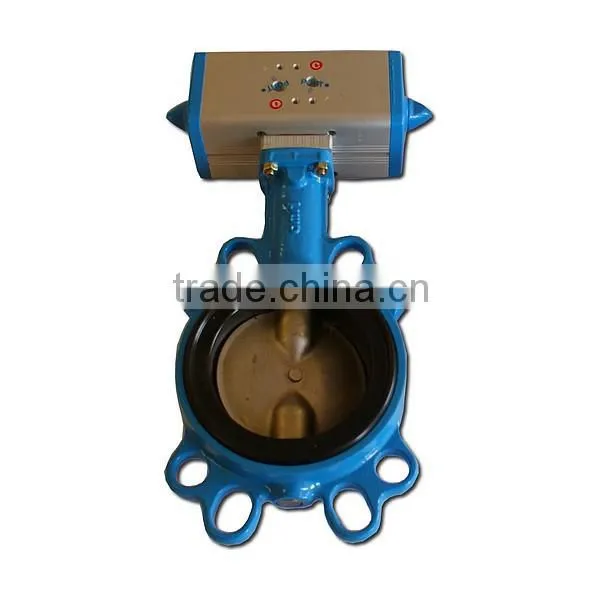

hydraulic actuator butterfly valveLug/wafer/flanged/U/Grooved/threaded type
Super Quality, Service and Competitive price
ISO
hydraulic actuator butterfly
Qingdao Eathu Casting and Forging Co.,ltd
Valve Specialist
We supply all kinds of Butterfly Valve with material Grey iron and Ductile iron.
Material
| Body | Grey iron A126 class B, ductile iron A536 |
| Disc | Grey iron, ductile iron, stainless steel |
| Stem | carbon steel, stainless steel |
| Seat | EPDM, PTFE, NBR |
| Bushing | PTFE, Bronze |
Specifications
| Size | DN25-1200 (1”-48”) |
| Pressure | PN10/16( 150/200 PSI) |
| Actuator | handle/gear box /pneumatic /electric |
| Standard | API, ANSI , DIN, BS, JIS |
| Connection | wafer type, flange type, lug type, U type, Grooved type |
Features
1. Long service life, standing the test of tens thousands opening/closing operations;
2.PTFE bushing ensure the maximum shaft support and centralized alignment360 degree polished disc assures positive on-off;
3. Bubbles-tight sealing with no leakage under the pressure test;
4. Wide selection of materials , applicable to various medium
Over 15years' experience, our valves are popular in USA, Europe, Middle east with High quality but Competitive prices. Welcome to receive your enquiry or any questions.
