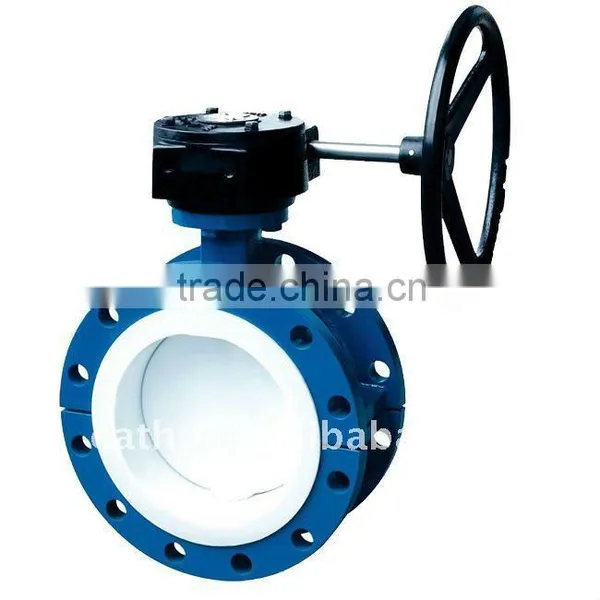

size double flange butterfly valve
Qingdao Eathu Casting and Forging Co.,ltd
Valve Specialist
We supply all kinds of size double flange butterfly valve with material Grey iron and Ductile iron.
Material
| Body | Grey iron A126 class B, ductile iron A536 |
| Disc | Grey iron, ductile iron, stainless steel |
| Stem | carbon steel, stainless steel |
| Seat | EPDM, PTFE, NBR |
| Bushing | PTFE, Bronze |
Specifications
| Size | DN25-1200 (1”-48”) |
| Pressure | PN10/16( 150/200 PSI) |
| Actuator | handle/gear box /pneumatic /electric |
| Standard | API, ANSI , DIN, BS, JIS |
| Connection | single or Double Flange |
Features
1. Long service life, standing the test of tens thousands opening/closing operations;
2.PTFE bushing ensure the maximum shaft support and centralized alignment360 degree polished disc assures positive on-off;
3. Bubbles-tight sealing with no leakage under the pressure test;
4. Wide selection of materials , applicable to various medium
Over 15years' experience, our valves are popular in USA, Europe, Middle east with High quality but Competitive prices. Welcome to receive your enquiry or any questions.
