Cast Iron butterfly valve
- 30000 Piece / Pieces per Month
- QINGDAO CHINA
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Butterfly | |
| Pressure | Low Pressure | Power | Manual | |
| Material | Casting | Temperature of Media | Normal Temperature | |
| Media | Other, Gas, water, oil | Port Size | DN25-DN1200 | |
| Place of Origin | Shandong, China | Model Number | Butterfly Valve | |
| Brand Name | EATHU | Application | General |
Product Description

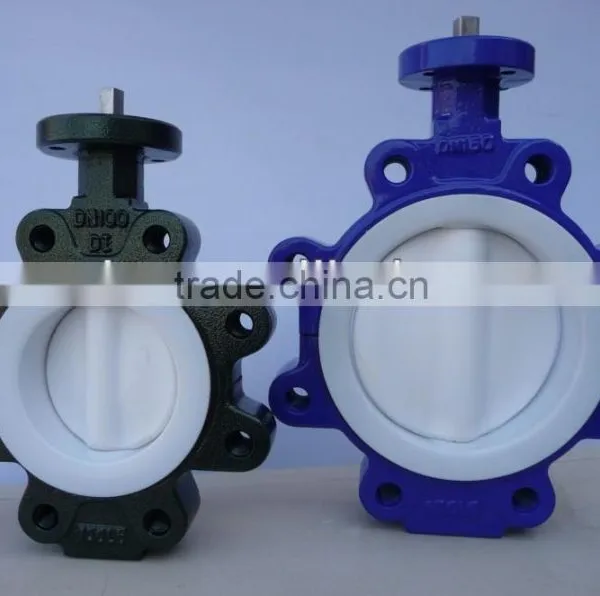

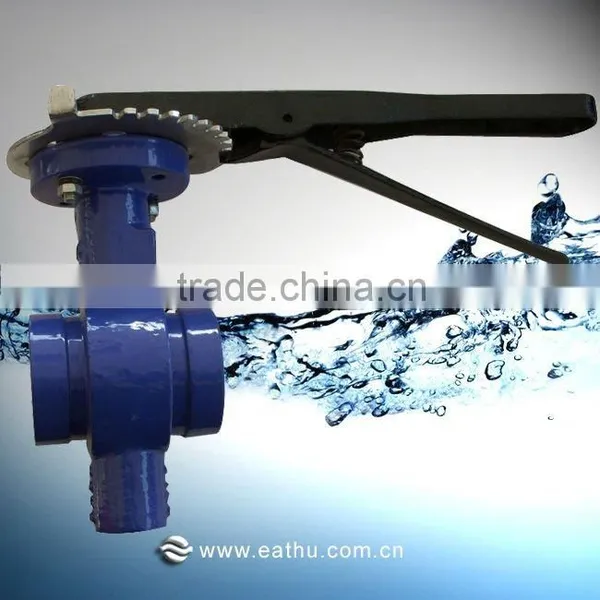

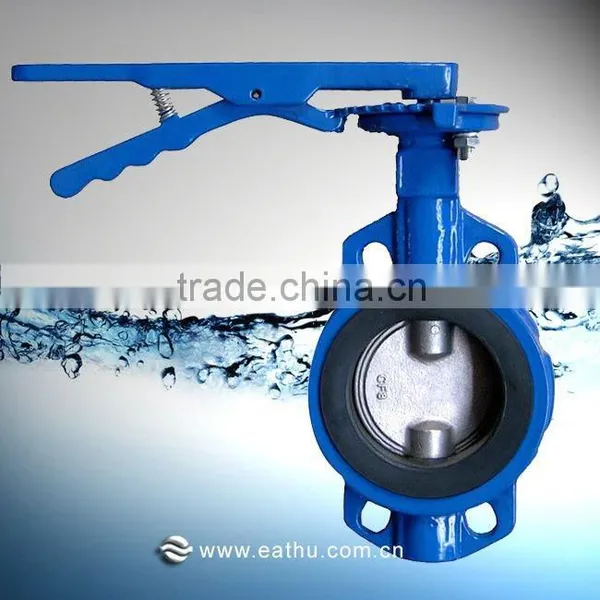

Butterfly valve
Qingdao Eathu Casting and Forging Co.,ltd
Valve Specialist
We supply all kinds of Butterfly Valve with material Grey iron and Ductile iron.
Material
| Body | Grey iron A126 class B, ductile iron A536 |
| Disc | Grey iron, ductile iron, stainless steel, |
| Stem | carbon steel, stainless steel |
| Seat | EPDM, PTFE, NBR |
| Bushing | PTFE, Bronze |
Specifications
| Size | DN25-1200 (1”-48”) |
| Pressure | PN10/16( 150/200 PSI) |
| Actuator | handle/gear box /pneumatic /electric |
| Standard | API, ANSI , DIN, BS, JIS |
| Connection | wafer type, flange type, lug type, U type, Grooved type |
Features
1. Long service life, standing the test of tens thousands opening/closing operations;
2.PTFE bushing ensure the maximum shaft support and centralized alignment360 degree polished disc assures positive on-off;
3. Bubbles-tight sealing with no leakage under the pressure test;
4. Wide selection of materials , applicable to various medium
Over 15years' experience, our valves are popular in USA, Europe, Middle east with High quality but Competitive prices. Welcome to receive your enquiry or any questions.
