gaode late technology CE hydraulic metal baler from jiangyin Quality Choice
- 100 Set / Sets per Month
- shanghai for gaode late technology CE hydraulic metal baler from jiangyin
- T/T
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Other, Other, Machinery & Hardware, Other | Packaging Type: | Other, nude |
Packaging Material: | Other | Automatic Grade: | Semi-Automatic | Driven Type: | Hydraulic |
Voltage: | 220V/380V | Power: | 15kw | Place of Origin: | Jiangsu, China |
Brand Name: | gaode | Model Number: | HC81F-1250 | Weight: | none |
Dimension(L*W*H): | 1200*600*500mm | Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

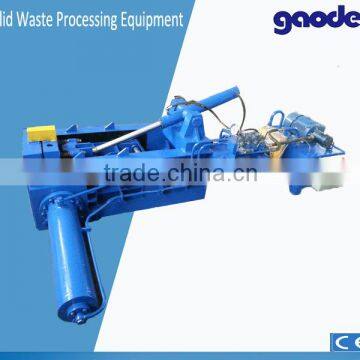

HC81F-1250 Metal baler
Applications
HC81 series of hydraulic metal balers are applicable in steel plants,recycling companies,ferrous&non-ferrous smelting industry to press metal scraps(steel,copper,aluminum ,stainless steel ,discarded automobiles) into acceptable furnace charges(shapes:cuboid ,cyclinder or octagon), so as to reduce cost of transportation ,to increase speed of furnace charging.
Features
(1)Hydrualic drive for all machines types ,manual valve control or PLC control ,Bale-discharging :turn-out ,push-out ,forward-out or manual dscharging.
(2) No footing bolts needed in installation :diesel engine can be equiped for power.
(3) Baling force 10 grades from 63 to 400 tons ,productivity from 4 to 40 tons per shift(8 hours)
(4) Press box size ,bale size&bale shape can be customized.
Technical Specifications:
NO | TECHNICAL SPECIFICATIONS | REMARKS | |||||
1 | Nominal Force | 1250KN |
| ||||
2 | Press Box Size (L*W*H) | 1200*600*500mm |
| ||||
3 | Bale Size (W*H) | 200*200mm |
| ||||
4 | Bale Density | ≥1800 kg/m3 |
| ||||
5 | Operation&Control | Manual valve |
| ||||
6 | Bale Discharging | Turn-out |
| ||||
7 | Capacity | 1000~1200 kg/h |
| ||||
8 | Hydraulic System Pressure | 21.5MPa |
| ||||
9 | Cycle Length | App.120Sec |
| ||||
10 | Motor | Model | Y160L-6 | Quantity | 1 set |
| |
Nominal Speed | 970rpm | Nominal Power | 15KW |
| |||
11 | Hydraulic Pump | Model | 63YCY14-1B | Quantity | 1 set |
| |
Nominal Outflow | 63ml/r | Nominal Pressure | 31.5MPa |
|
Packaging Detail: in nude
Delivery Detail: 20-25 working days
GAODE Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane. In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.
Our company was first inaugurated in 2003.We have combined advanced production and testing instruments with state-of-the-art manufacturing techniques to yield outstanding product quality.
Guarantee and after-sale service
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
Q1:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for machines?
A:100% self-inspection before packing
Q4:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
Q5: Can we order one set machine?
A:Yes, you can.
