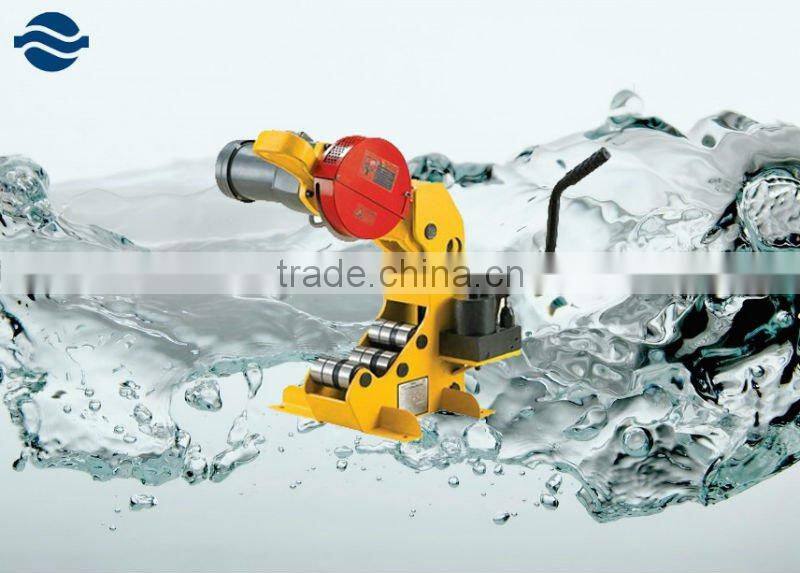

8"-20" Type Pipe Cutting Machine

This machine is applicable for cutting 2"-16"and 8"-20" steel pipes of 12mm wall thickness, totally two specifications for options of users.
Equipped with high-performance gear reducing motor to power the hydraulic system which drives the heavy-load blade to cut the pipe neatly.
A man can cut a steel pipe within several minutes with neat square or chamfered cutting edge.

Capacity

Steel pipe (inch)                          6"-16"

Steel pipe (inch)                          8"-20"

Max.Wall-thinkness(mm)          12

Output RPM(r/min)                      23

Single-phase Motor

Voltage(V)                                     110-240V

Power(W)                                      750-1100

Frequency(Hz)                              50-60

Net weight(Kg)                              122

Dimension(mm)                          850x720x1100

Three-phase Motor

Voltage(V)                                      110-415

Power(W)                                       750

Frequency(Hz)                               50-60

Net weight(Kg)                               120

Dimension(mm)                           850x720x1100
