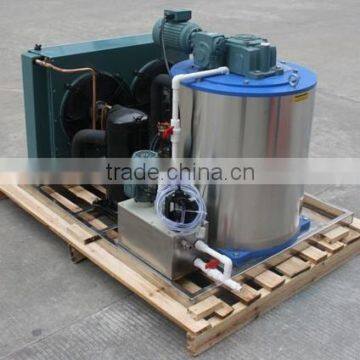

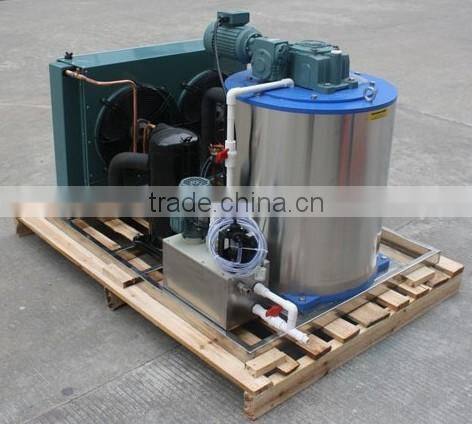

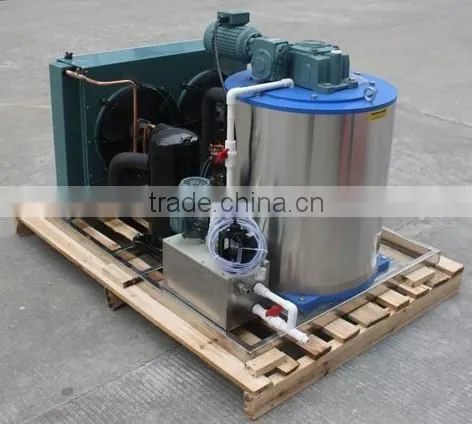

Detailed description of 3.0Ton Refrigeration Equipment ice flake machines:
Specifications
1.Langtuo Ice Maker
2.Dry, uniform, clean
3.Beautiful in shape
4.Sanitary and convenient
5.Certification:CE,ISO9001
flake ice maker application field
1 Concrete cooling project
2 Fishery and aquatic food processing
3 Mine tempe rature reduction
4 Food processing
5 Artificial sking ground
6 Medical facilities
7 Dye chemical industry
8 Medium and large chain supermarket
9 Fresh preservation and cooling field application
flake ice maker condition
Electrical require: Full electric system complying,With the general international standard
Standard condilion: Water inlet temp.16°C, Amibenttemp:25°C
Application condilion: Ambient temp.5°C~40°C, water temp. 0.5°C~35°C
Special condition: Ambient temp.-30°C~60°C, water temp.0°C~46°C
Ice thickness: 1.5~2.2mm
Refrigerant: R717,R22 ,R404A,R507A
flake ice maker feature
1 There are two options available
——A. Freon (R507, R404A, R22) refrigerantion units are usually applied in the small and medium size refrigeration systems.
——B. Ammonia (R717) refrigeration units are usually applied in large scale refrigeration.
2 Scientific design and many years of engineering experience.
——Langtuo will offer you the best scheme of tailor-made ice making machine system. We have not only supplied lots of ice flaker systems to customers from various places but also offered technological consultancy to them.
3 Safety and sanitation
——Langtuo always aims at manufacturing the products up to high sanitary standards. Every component of our ice machines is made of SS304 stainless steel, pure aluminium alloy or PE material, so none of
our ice machine fall short of the international certification standards of HACCP and FDA. The ice produced by our ice machines is dry, pure, powerless and unlikely to lump in the lower part of the machines.
4 High reliability and low breakdown rate
——Langtuo ice machines has adopted and consolidated international ice machine produced and processing
technology and experience. Equipment structure is designed for resistance to high load and long-term use, through several decades of research, Langtuo has manufactured highly reliable ice flake equipment that can produce quality ice and stand over 26,000 hours of constant operation without breakdown. So far its products have found wide application in various fields all over the world.
5 High efficiency and energy saving
——We have optimize the design of ice flake units to ensure that langtuo internally-scraping ice flake units can function constantly without wasting energy.
6 Simple maintenance and convenient moving
——All our equipment is designed on the basis of modules, so its spot maintenance is quite simple. Once some of its parts needs replacing, it is easy for you to remove the old parts and install the new ones. Moreover while designing our equipment. We always take into full account how to convenience future moves to other construction sites.
7 Great adaptability and stable quality
——Langtuo products can ensure good running and normal ice output at the environmental temperature of 5~40°C,and its specially-designed type can guarantee normal running even in the most unfavorable
conditions(-30°C~60°C).
——Langtuo ice machine can be equipped inside the container, and within the contain we also equipped the air cooler to ensure the stable temperature. avoid affects from outside, especially every parts are strictly inspection and test before assemble. Offer our customers stable, reliable and durable ice machine is our eternal goal.
8 Outstanding electric control system
——1. Langtuo ice machine adopts world famous brand such as Siemens, Schneider, etc. The machine service life is accordingly prolonged,and the maintenance cost is reduced.
——2. Full automatic control improves the refrigeration performance of the compressor to the best and the COP value improved. Energy-saving and high efficiency is realized.
——3. The machine can be easily operated in a direct-viewing way. Such signals as simple screen configuration and detailed parameter adjustment of the whole machine can be displayed during the maintenance time.
——4. Langtuo flake ice machine can realized high speed data exchanging such as chain infomtation from production menu to production data Therefore the working efficiency of design, installation and maintenance is improved.
LB-3T Configuration Table |
LB-3T Technical Parameter |
||
Components Name |
Brand/Country |
Technical Parameter |
|
Compressor |
Danfoss/ Danmark |
Daily output |
3000kg/24h |
Evaporator |
Langtuo |
Ref. Capacity |
19.5kw |
Condenser |
JinGong,/ China |
Evaporating Tem. |
-22°C |
Expansion valve |
ALCO/ USA |
Condensing Tem. |
40°C |
Filter |
ALCO/ USA |
Ambient Tem. |
25°C |
Pressure control |
LEILI/ China |
Inlet water Tem. |
18°C |
Reducer |
GongJi/ Taiwan |
Tatal power |
12.2kw |
Water pump |
Hongking/China |
Compressor power |
10.4KW |
Salt water pump |
RDOSE/ Germany |
Reducer power |
0.37KW |
Infrared |
Ruiko/ Taiwan |
Water pump power |
0.12KW |
Water level |
FAST/ China |
Salt water pump power |
0.016KW |
Float valve |
KEYU/ China |
POWER Supply |
3P-380V-50Hz |
PLC controller |
LG / Korea |
Water pressure |
0.1Mpa-0.5Mpa |
Contactor |
LG / Korea |
Refrigerant |
R404A |
Relays |
LG / Korea |
Ice Tem. |
-5°C |
Phase sequence |
CKC/ Taiwan |
Outlet size |
1/2" |
Air switch |
LG/ Korea |
Weight |
530kg |

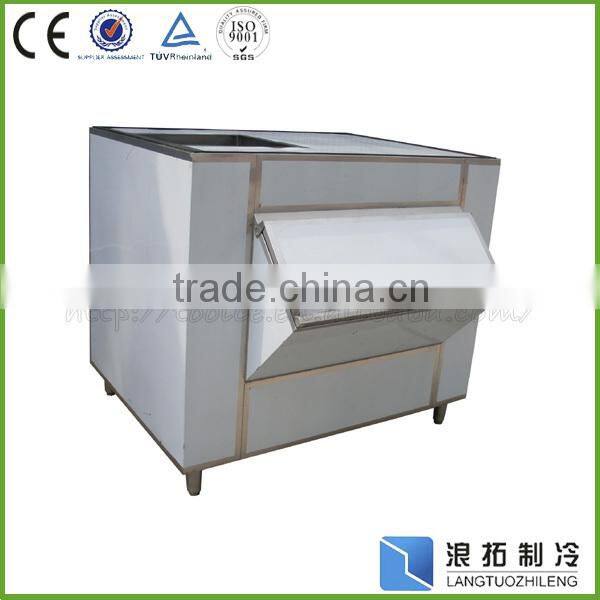

Ice Storage bin |
Langtuo |
Unit dimension |
1750mm*1190mm*1200mm |
Ice scraper |
Langtuo |
Ice bin dimension |
accroding to ice store |

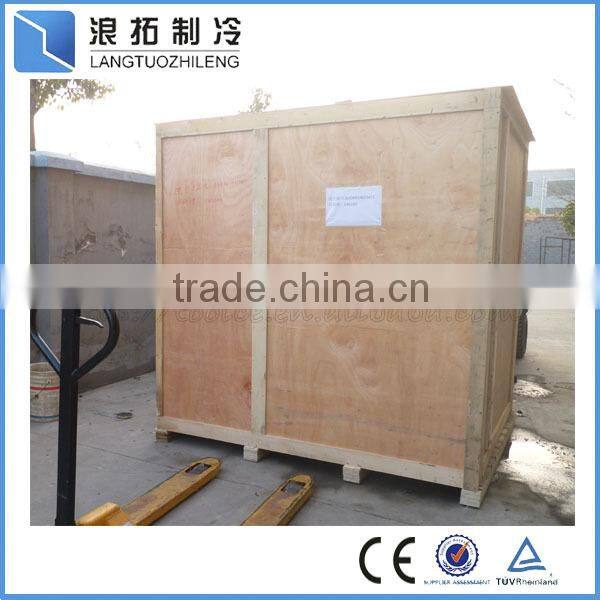

A.Package way:
Wooden case or export carton available.
B.Shipping way:
by sea or by air,it all depands of customer's requirement.
a. The warranty of each ice maker is 12 months.
b. Online customer service for you.
c. For any problems or repairments of the machine, you can call our online customer service or you can find the third party to mend it for you while the company supply the relevant small parts within the warranty times.
Shanghai Langtuo Refrigeration Equipment Co., Ltd. is a highly reputable and respected ice machine manufacturer. As one of the notable refrigeration equipment manufacturers, we provide not only ice machines and ice cream makers but also supply ice shaver, cold room etc. Our factory has gained ISO9001:2000 quality certificate and CE certificate.
With strong abilities and years' experience in the R&D, manufacturing, service and cutting-edge price, we are considered to be the right associate in terms of OEM and ODM ,which is many foreign companies looking for.Try to contact us for a good quality ice making machine with the competitive price.
If you are considering becoming a Langtuo OEM or ODM customer,or just to earn more about the benifits of being a Langtuo partner,pls call or email us.We have a dedicatd professional team to walk with you through the whole partnership process.
FAQ of 3.0Ton Refrigeration Equipment ice flake machines
1. What is the Payment Terms?
T/T: 30% in advance as deposit, 70% balance should be paid before shipment.
100% L/C and other payment also possible, depend on negotiable and order conditon.
Sample order we agree weston union or Moneygram.
2. How long is the delivery time?
Normally, within 15 working days after receiving the deposit.
3. Can we do OEM order?
Yes, we can.
4. What is the warranty period?
During garantee period, spare parts is supply free. Because do internation business,for saving shipping cost and time. Normally we will supply some percentage spare parts according to goods value.(Container order)
5. Is sample order available?
Yes, it is. A sample order is acceptable.
6. Which is better for air cooling and water cooling?
Normally small ice maker, Capacity less than 700kgs/24hrs, We suggest air cooled, because:
Air cooling is easily installationMany customer like air cooled.Water charge is heavy.
But for bigger cube ice maker we suggest use water cooled, ice produce is steady, can use water cooling tower recyle water.
