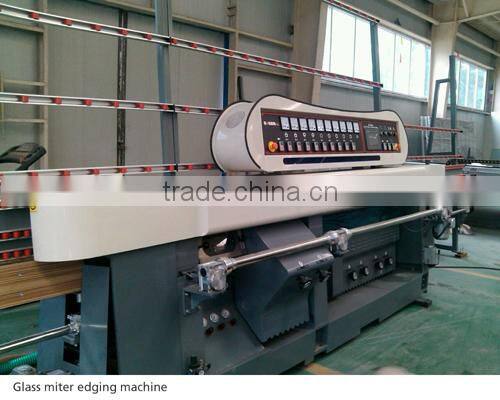

High Precision Glass Edge Polishing Machine Glass Polisher
Parameter
Mini Glass Size:80*80mm
Max Glass Size:3000*3000mm
Glass Thickness: 3-25mm
Processing Speed: 0.8-5.5m/min
Bevel angle: 0-45°
Installed Power:21.3KW
No.of Spindle: 9 PCS
Weight: 3800KG
Dimension:7800*1000*2500mm
Specification
1. This machine is professional for flat edging with 45 degrees arrissing and miter edging from 0 degree to 45 degrees.
2. The input and output adopt Synchronous rise and lower to make grinding-volume adjustment easy and convenient. Input and output transmission
adopts timing belts, which improve the stability of transmission.
3. All the parameters are set by touch screen and PLC control.
4. Variable frequency motor for driving and the speed can be adjusted on touch screen directly.
5. The machine base, beams and base of spindle are made of excellent cast iron and all the cast and steel parts are treated by tempering.
