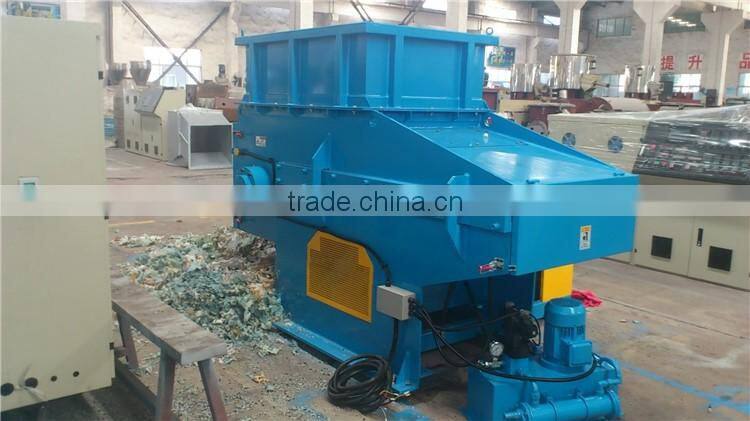

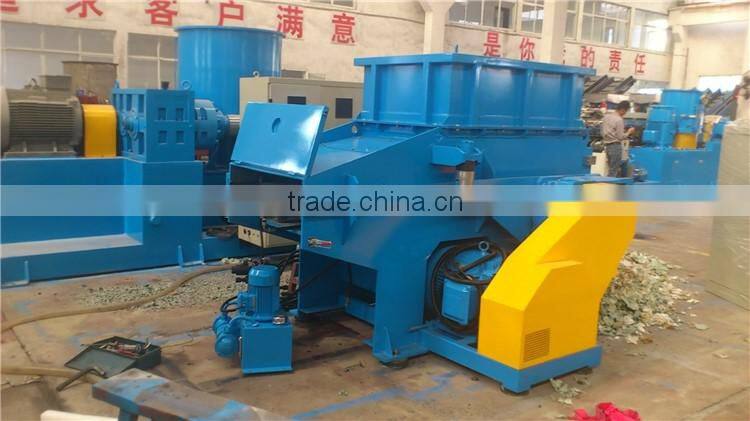

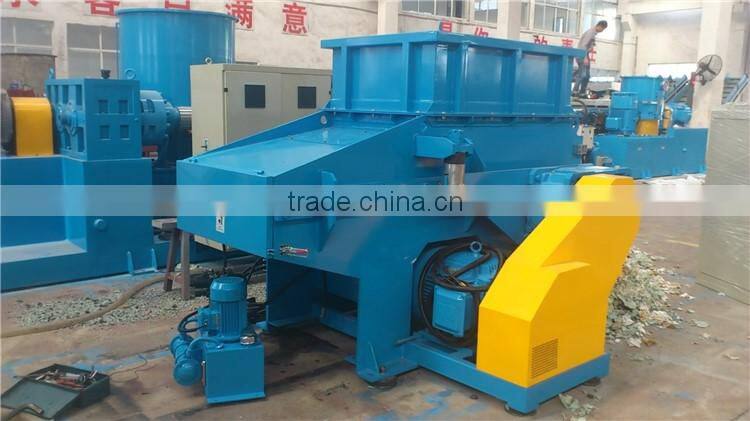

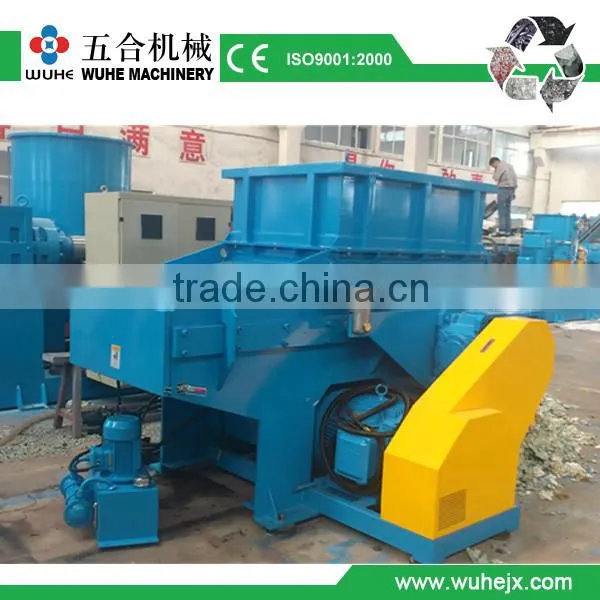

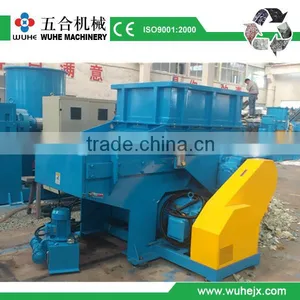

TV Shell Shredder
The shredder machine is suitable for crushing wide range of materials especially for plastics (lump, block, film, fiber, container.etc); wood(block, root, pallet.etc); e-waste(circuit board, mobile, tv. etc); textile; paper and many others.
Model List |
Motor Power |
Hydraulic Power |
Rotor Diameter |
Fixed Knife |
Rotating Knife |
DS-600 |
15-22kw |
1.5kw |
300mm |
1-2 |
22 |
DS-800 |
30-37kw |
1.5kw |
400mm |
2-4 |
30 |
DS-1000 |
45-55kw |
1.5-2.2kw |
400mm |
2-4 |
38 |
DS-1200 |
55-75kw |
2.2-3kw |
400mm |
2-4 |
46 |
DS-1500 |
90-132kw |
2.2-4kw |
400mm |
2-4 |
58 |

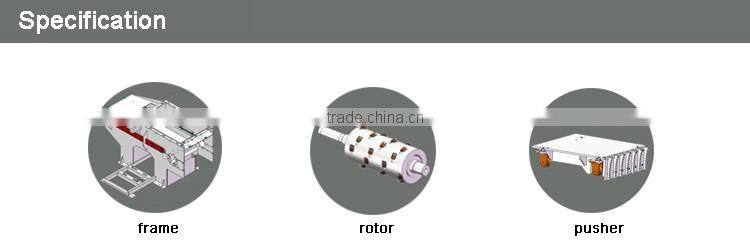

Frame: It's made of Mn16. CNC processed.

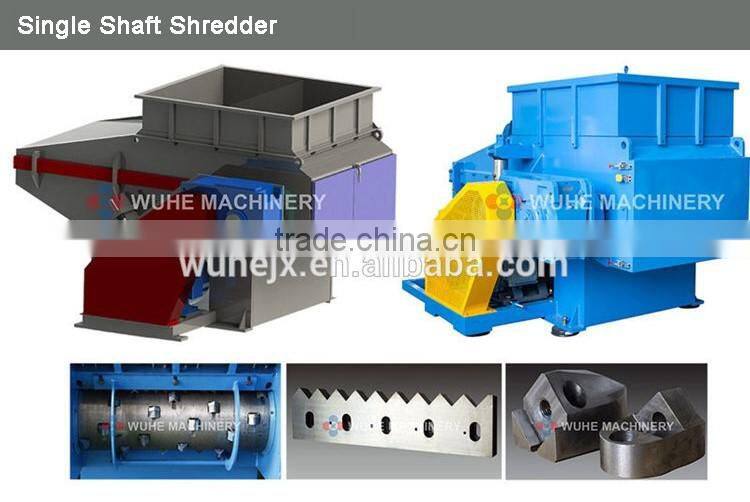

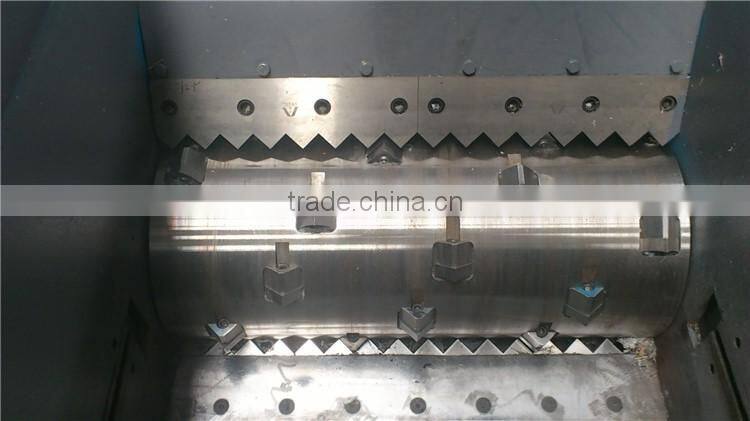

Rotor: SKD-11 blades, rotor processed. Its rotating can be adjusted

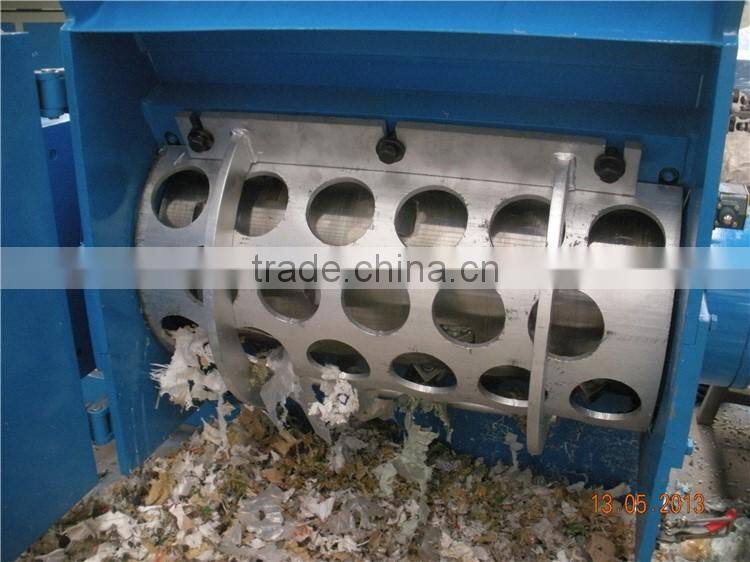

Screen: the diameter of mesh is made according to different material.

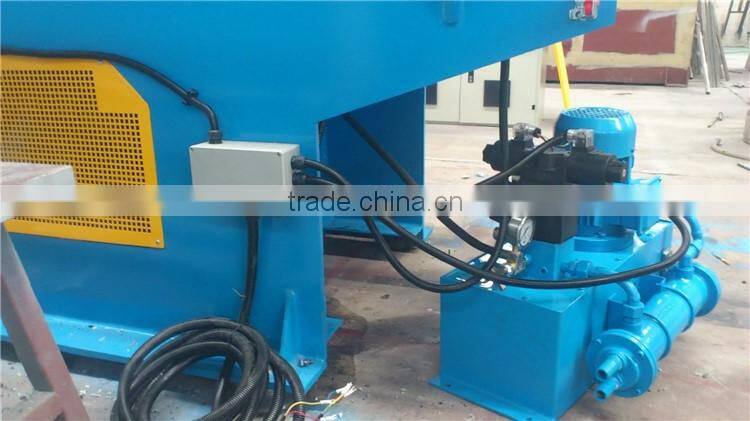

Pusher: the pusher is driven by hydraulic system. Materials will be pushed to rotor and crushed.
Automatic Reserve Sensor: to protect machine from overloading and jamming.
Bearing: the bearing is installed outside the machine so as to avoid foreign contamination enter the bearing.
Sales-service:
1. 7 days*8 hours on line, any inquiry will get our response within 24 hours.
2. we will give customers great proposals according to different materials.
Payment:
1. we usually quote as per EXW and FOB Shanghai, others are negotiable.
2. 30% payment in advance and the balance should be paid before delivery.
Delivery:
1. 30-60 days or more for the lead time according to the order.
2. after finished production, we will inform customer to come for inspection.
3. large parts will be packed by stretch film and small parts will be packed by wooden cases.
4. we usually deliver our products by ship or as per customer's requst.
Installation:
1. engineers are available to service overseas for installation and maintenance.
After-sales service:
1. 12 months guarantee.
2. free training and long-term technology service.
3. any technical question will get our response within 48 hours.
4. set up feedback database.
WUHE Machinery Co., Ltd, located in Zhangjiagang city Jiangsu Province, is a professional manufacturer and distributor of plastic equipments. After 10 years effort, our company has become a multi-functional private enterprise which gathered designing, processing, manufacturing, marketing as one.
Our products cover plastic pelletizing line; pipe production line; waste plastic washing line; crusher; shredder; agglomerator; dryer; mixer etc.
Welcome to our factory to negotiate business. We would like to offer excellent service and competitive price to all old and new customers.
