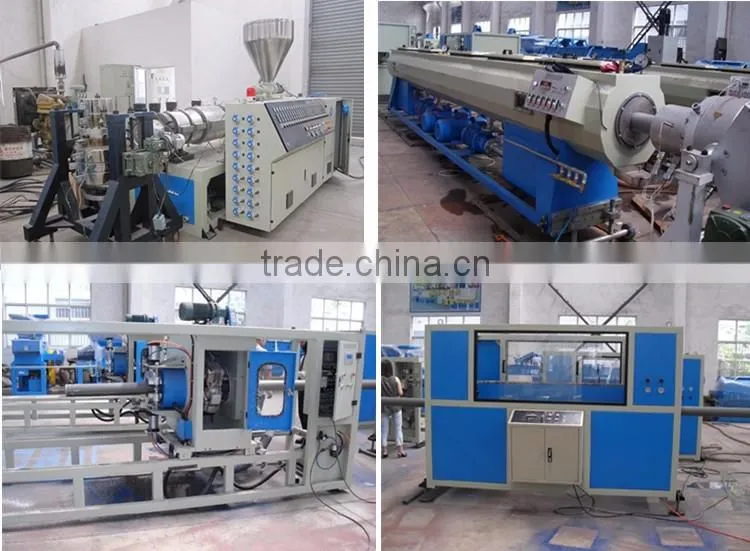

Characteristics of CPVC pipe making machine
CPVC pipe extrusion machinery is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness. This CPVC pipe extrusion machinery mainly consists of twin conical (parallel) screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products. The haul off machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc. Saw cutting or planet cutting can be applied, it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe etc.
Paramete of CPVC pipe making machine
Specification |
GF63 |
GF110 |
GF160 |
GF250 |
GF400 |
GF630 |
GF800 |
Item |
Diameter |
Diameter |
Diameter |
Diameter |
Diameter |
Diameter |
Diameter |
Diameter of pipe (mm) |
16-63 |
16-110 |
32-160 |
63-250 |
160-400 |
315-630 |
450-800 |
Claw number of haul off |
2 |
2 |
2 |
3 |
4 |
6 |
8 |
Hauling force(KN) |
6 |
8 |
11 |
20 |
30 |
40 |
50 |
Haul off speed |
10 |
8 |
6 |
5 |
4 |
2 |
2 |
Tatal power of down stream(KW) |
14 |
14 |
14 |
21.5 |
41 |
56 |
64 |

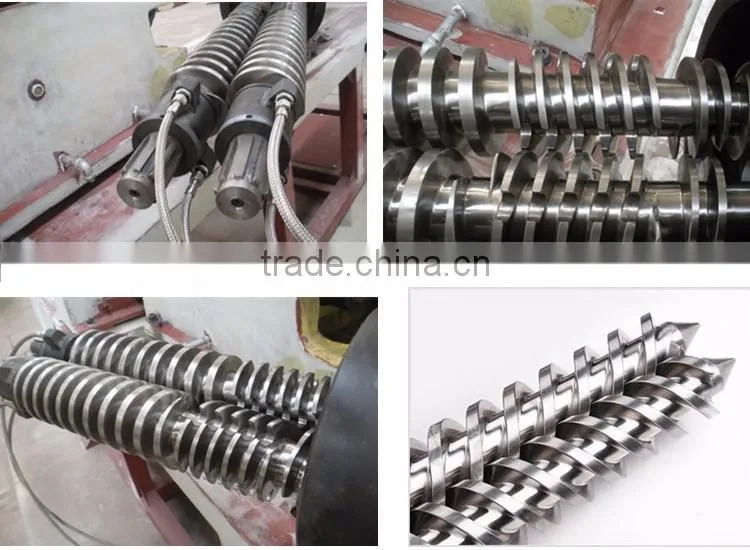

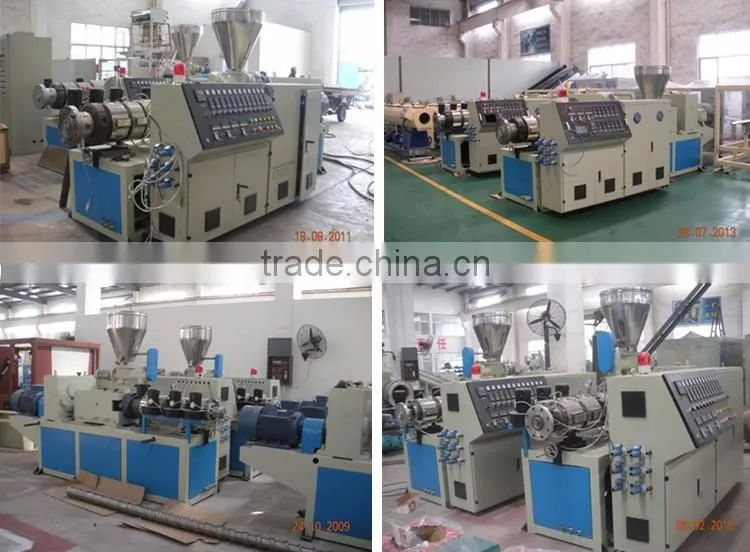

Extruder of CPVC pipe making machine
Model |
SJZ-45 |
SJZ-51 |
SJZ-55 |
SJZ-65 |
SJZ-80 |
SJZ-92 |
Screw diameter(mm) |
45/90 |
51/105 |
55/110 |
65/132 |
80/156 |
92/188 |
Screw speed(rpm) |
45.5 |
30 |
30 |
34.7 |
36.9 |
32.9 |
Screw length(mm) |
989 |
1100 |
1200 |
1440 |
1800 |
2500 |
Motor power(KW) |
15 |
18.5 |
22 |
37 |
55 |
110 |
Heating power(KW) |
12 |
16 |
18 |
24 |
36 |
86 |
Capacity(kg/h) |
40-60 |
60-100 |
80-140 |
160-300 |
220-450 |
400-600 |
Weight(kg) |
2800 |
3200 |
3500 |
4000 |
5000 |
10000 |

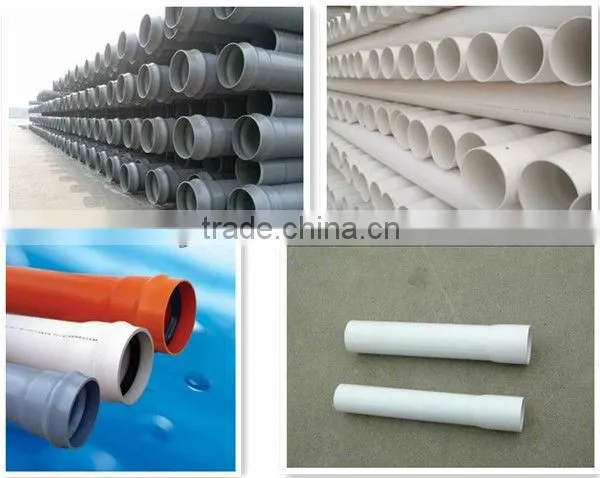

Final product of CPVC pipe extrusion machinery
Certificate of CPVC pipe making machine

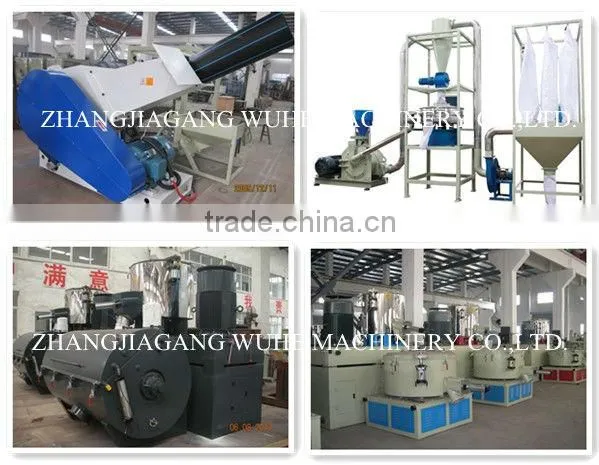

Auxiliary machine for CPVC pipe making machine

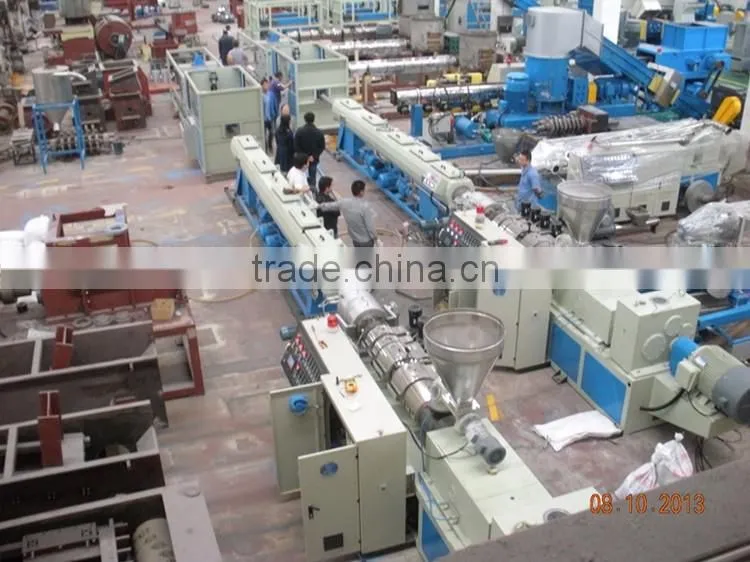

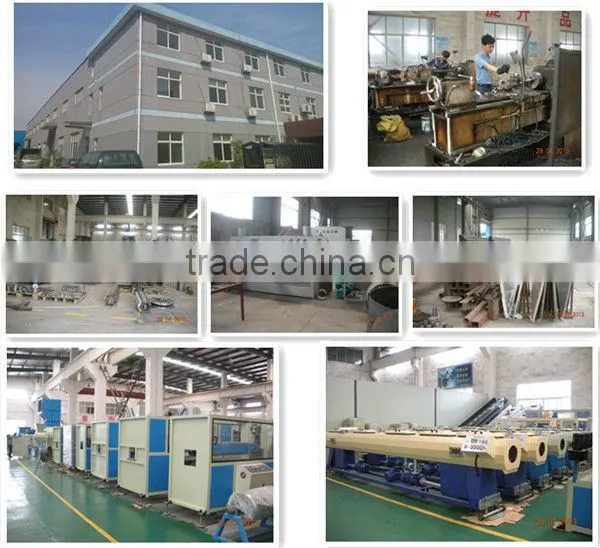

Workshop of CPVC pipe making machine

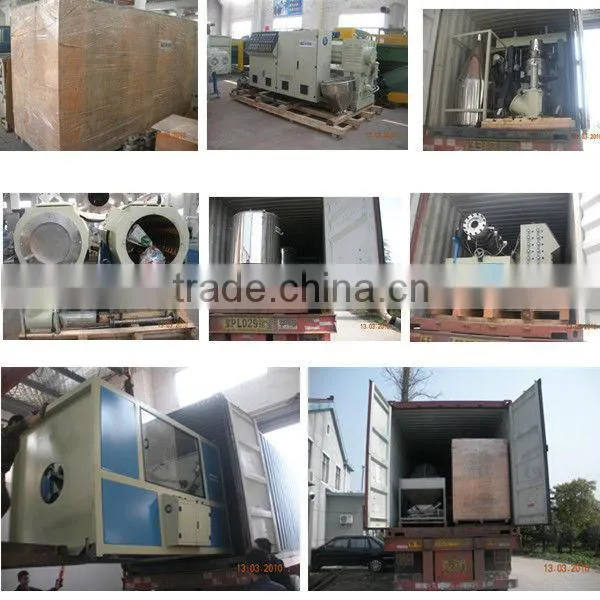

Loading of CPVC pipe making machine
