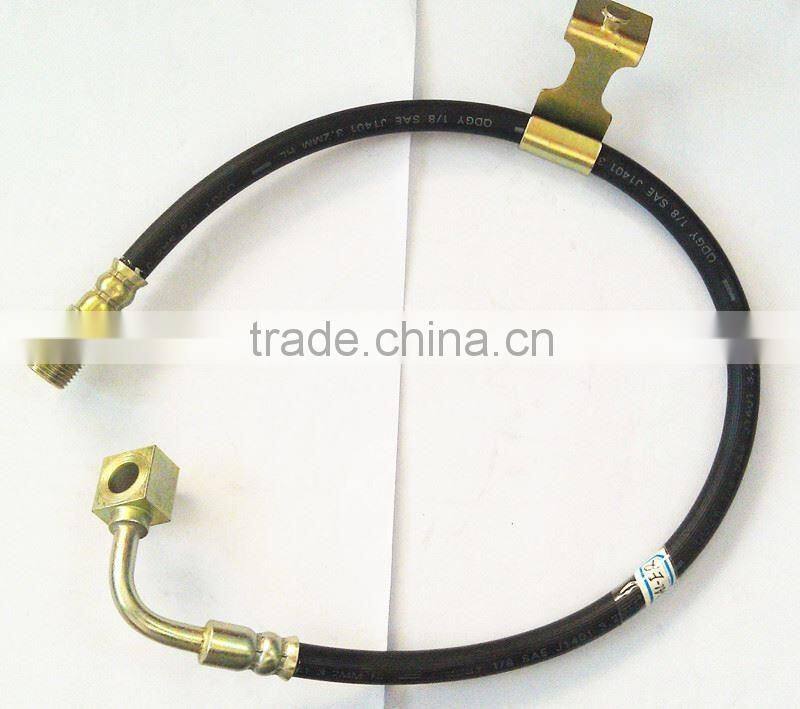

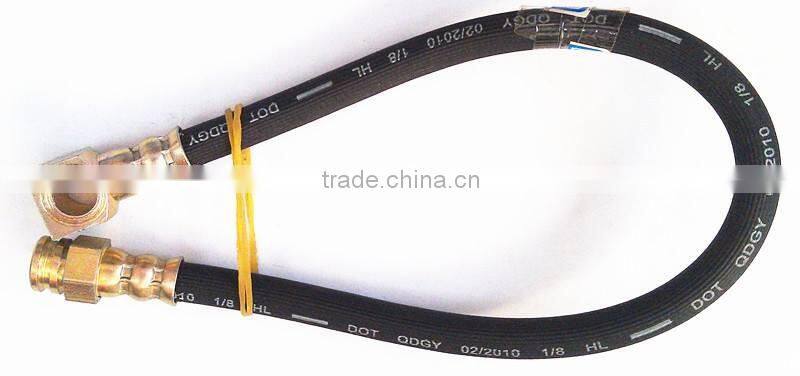

air brake hose rubber hose hydraulic brake hose
Number (I.D.)mm (O.D.)mm (Expansion ml/m)Max (Burst Press)Min. Mpa
1 3.2±0.2 10.5±0.3 1.08 1.38 49.03
2 4.8±0.2 13±0.3 1.81 2.36 34.5
3 6.3±0.2 15±0.3 2.69 3.84 34.5
Working temperature range: -40∼+100
Standard: SAEJ1401 GB16897-1997 MS263-49
Uses: Act as a pressure transmission for auto hydraulic pressure brake system.
Features: The hoses are braided with high strength, manifold, polyester threads, and
have such very good performances as the following: good flexibility, bursting
resistance, high tensile strength, low swell increment of the internal volume, ozone
resistance, low-temperature, bending resistance, and good compatibility, with stable,
safe and reliable braking effects.
2.Technical Requirements For Brake Hose
Technical Parameters for rubber for the tube:
| Parameters | Inner tube rubber | Outer tube rubber | Test method |
| Tension Strength, MPa | > 16.6 | > 12.74 | ISO 37 Type 1 |
| Elongation at brake, % | 200 | 250 | ISO 37 Type 1 |
| Hardness, Shore A | 75±5 | 65±5 | ISO 868 |
| Tear resistance, N/mm | > 45 | ISO 8067 | |
| Residual strain at 25% compression, %) | < 35 | ISO 815 | |
| Ozone resistance; 50°C at 50% tension | N | ISO 1431 |
Other parameters that were not included in this table must qualify with SAE J1401.
Hose parameters: ID = 3 +0.15 / - 0.10 mm; OD = 11 +0.5 / - 0.3 mm;
The tube layers:
· Inner tube;
· Two layers of reinforcement viscose fiber yarn + adhesive between these layers;
· Outer tube.
The inner and outer tubes (layers) must not have any dents, cracks, bubbles or any foreign inclusions (objects).
Cold resistance for the tube- minus 50°C (no cracks);
- minus 55°C (no cracks).

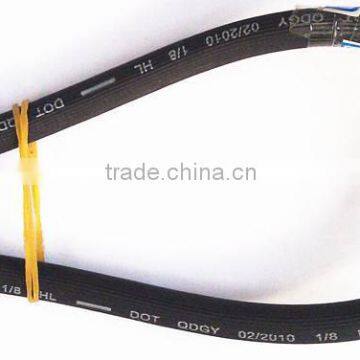

The tube must have a longitudinal yellow line on the opposite side of the labeling.
The size, style of labeling as well as the yellow line must be done according to the conforming sample of the tube.

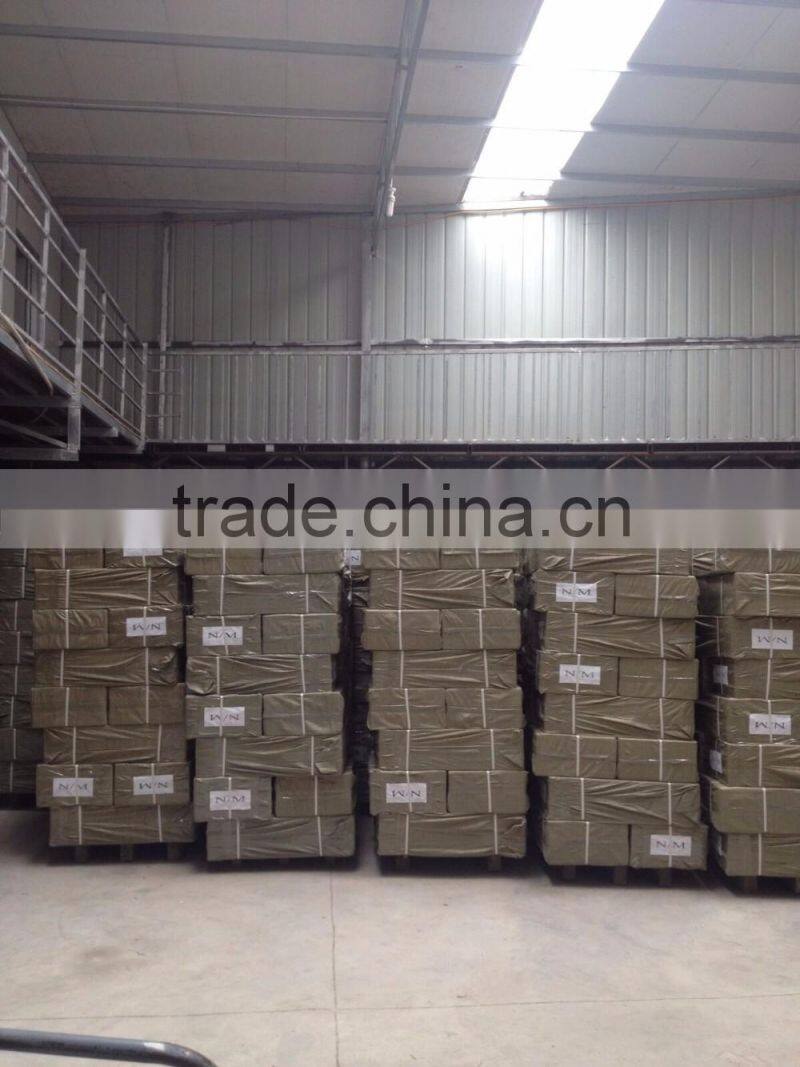

Factory Warehouse
1 |
Port |
FOB loading Tianjin/Shanghai/Qingdao port |
2 |
Shippingways |
By Air/ Express /Sea, different shipping way by your choose.
|
1) we have more than 10 years export experience to Iran, American, Germany, India, Myanmar etc. pleae rest assure at our quality.
2) prompt shipment : By reputed shipping line and professional documents .

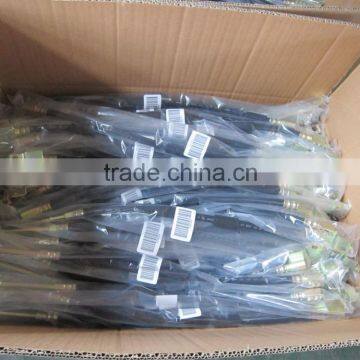

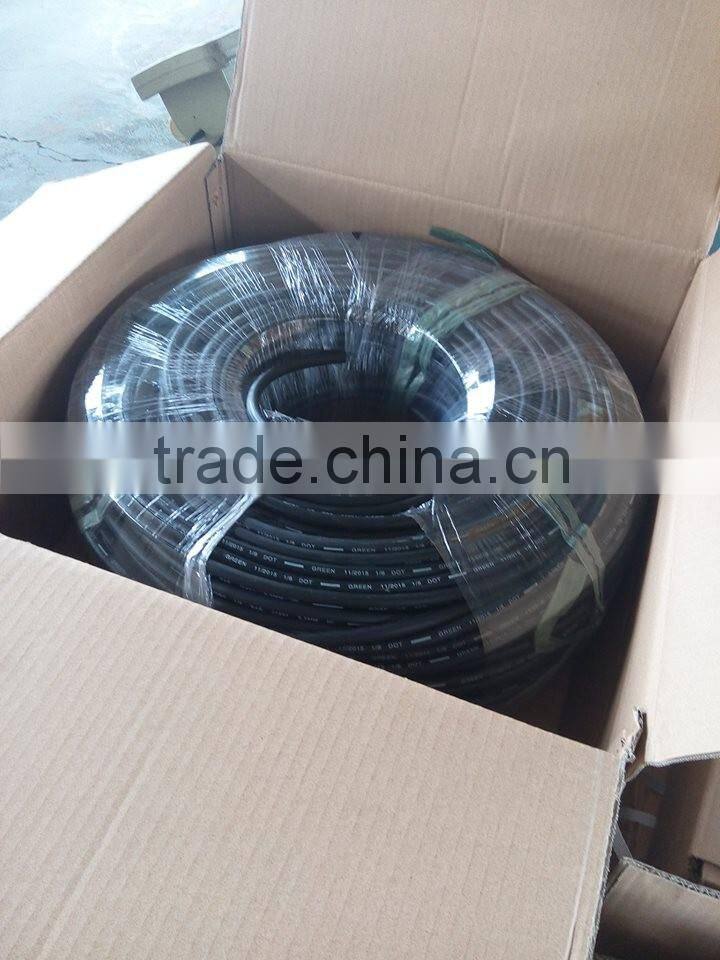

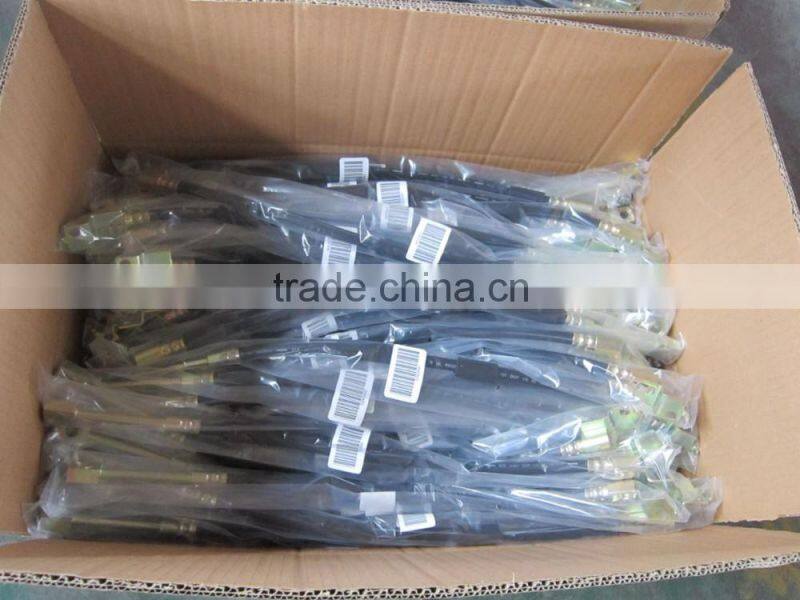

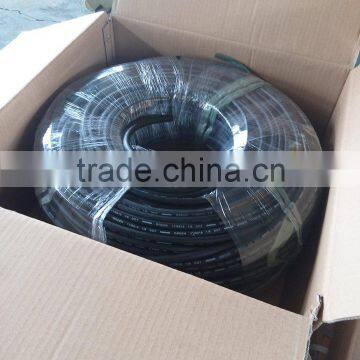

3) Cargos photo : before and after loading into container . 4) packing : new and strong seaworthy packing, also can based on buyer's special request .
5) Best service after shipment with Email .
6) feedback Email after endusers .
7) can provide free samples for you check the quality . the samples need about 3-4days .
8) on-time delivery : production delivery time need about 30-40days after get the deposit .
| Shaanxi Yongrui Indus.Limited Company it estabilshed in 1998,as a prodessional manufacturer of duble | ||||||
| layer steel pipes for automoblie and refrigeration industry, we have our own producing lines and processing | ||||||
| lines.Also we can produce different products which can cater for clients'special needs. | ||||||
| We will try our best to produce better products for you,to satisfy your needs,and to make a win-win situation. | ||||||
| Welcome to visit us ! |
Please find our company introduction here.
A. We have research teams and possess leading-edge technologies of our own intellectual property.
B. We developed our own advanced automatic production lines and know how to adjust the manufacture process according to vaired customer needs.
C. We adopt strict quality control and efficient management, which help us sustaining outstanding quality.
D. We have over 15-year manufacture experience and are trust worthy.
E. We have established long-term relationship with the major automobile manufactures in China. On the other hand, we win trust from China North Industries Group Corperation for military use, China Aerospace Sience & Industries Corp. and China Aerospace Sience & Technology Corp. within aerospace field. Our foriegn clients are all over the globe, including North and South America,Russia, Europ, Middle East, etc.
