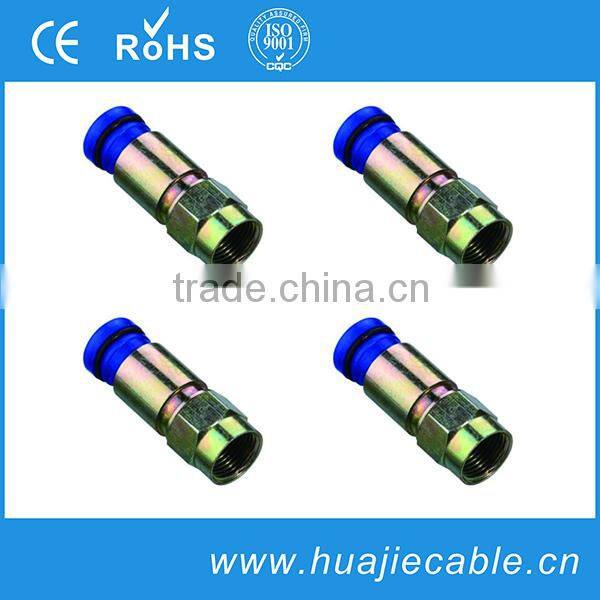

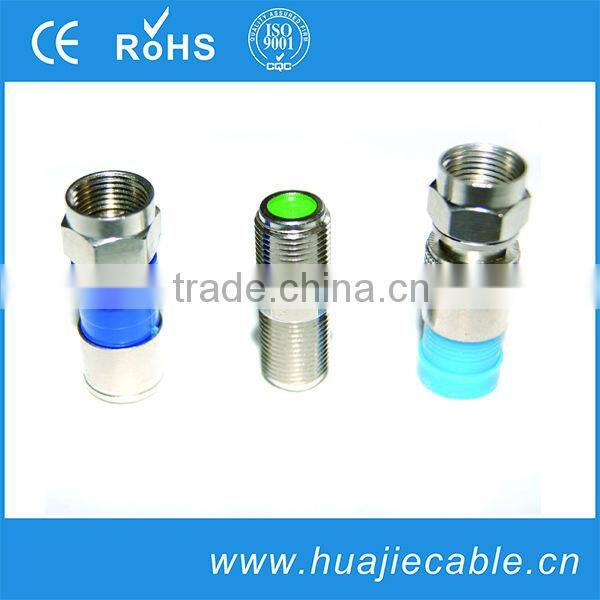

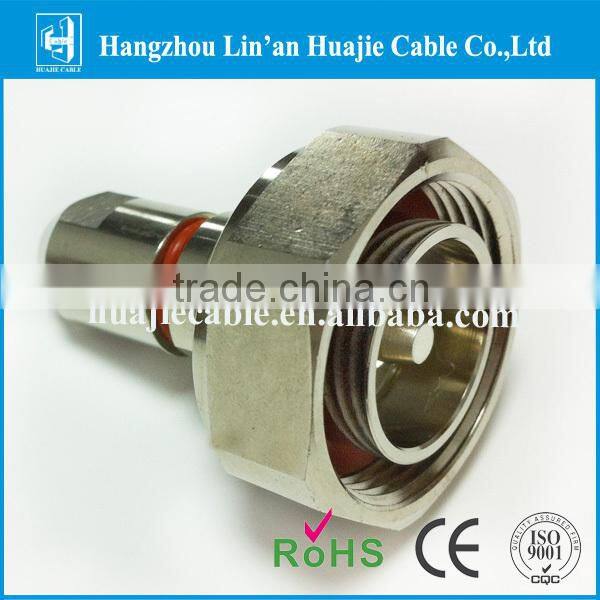

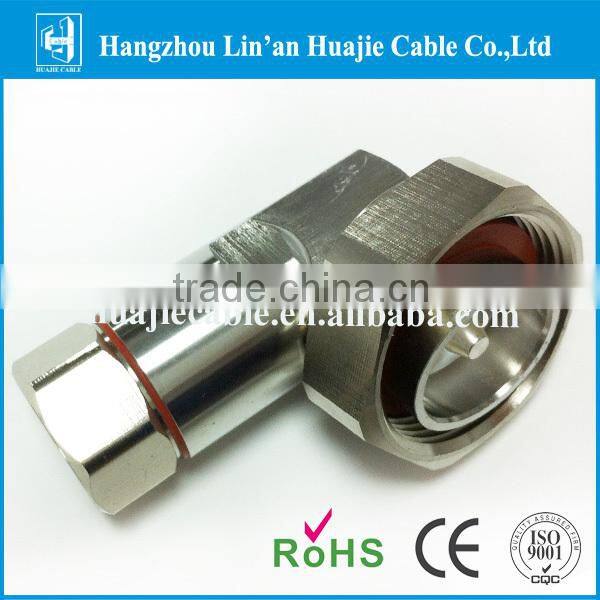

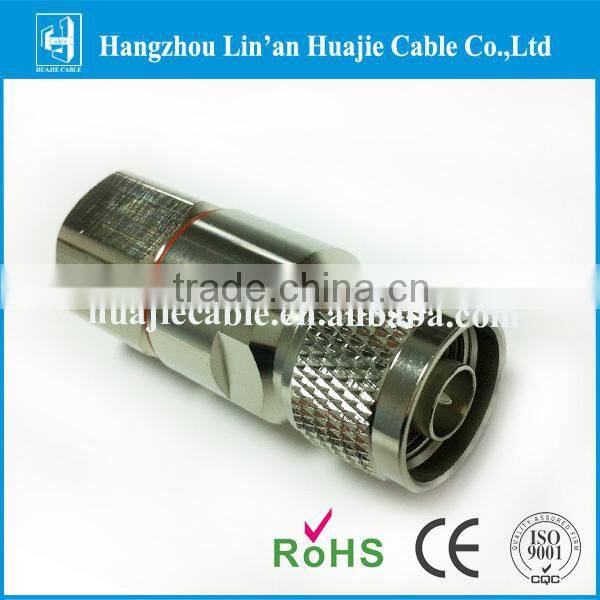

Cable assembly for RG58
ELECTRICAL DATA | |
Impedance |
50Ω |
Frequency range |
DC-6GHz |
Dielectric withstanding voltage (at sea level) |
≥750Vrms,50Hz |
Working voltage |
≥170Vrms,50Hz (at sea level) / ≥42Vrms,50Hz (at 21000m/70000ft) |
Insulation resistance |
≥ 10000 mΩ |
Contact resistance |
Inner conductor: ≤5mΩ Outer conductor: ≤1mΩ
|
RF leakage(measured at 1GHZ) |
Flexible: ≥60dB Semi-rigid cable: ≥70dB
|
MECHANICAL | |
Engagement force |
≤25Nm /5.6lbs |
Disengagement force |
≥8N-20N / 1.8 lbs-4.5lbs |
Contact captivation |
≥10N / 2.3 lbs |
Durability (matings) |
≥500 |
ENVIRONMENTAL DATA | |
Temperature range |
-55°C to +155°C |
MATERIAL DATA | |
Bodies |
Brass--Au plated |
Pin contacts |
Brass--Au plating |
Socket contacts |
Coppper beryllium alloy / Phosphor bronze--Au plating |
Crimp ferrules |
Brass--Au plating |
Insulator |
PTFE |
Related products
Why us
1. We are the professional coaxial cable manufacturer, so we have rich production experience on the cables;
2. OEM/ODM is available, your own brand can be printed in both cables and boxes;
3. We have special quality control department to ensure our good quality;
4. Cables are approved based on CE, ROHS, 3C, ISO9001 quality standard;
5. Short delivery time, we can finish a 20ft container within 15 days.
6.The best important that we are Trade Assurance suppliers.
