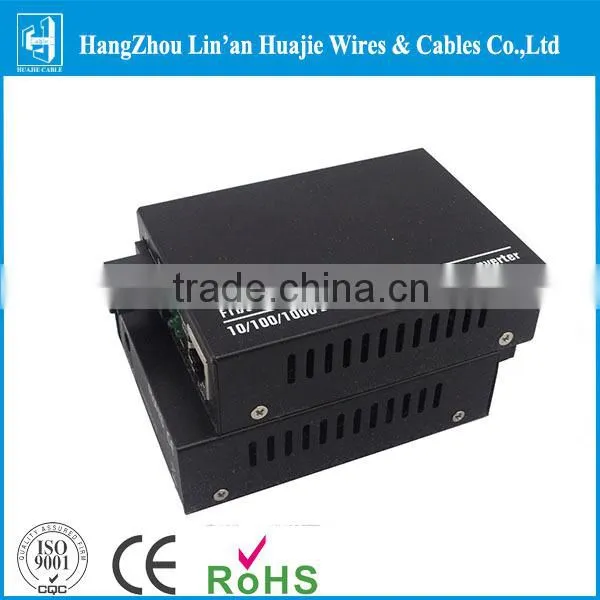

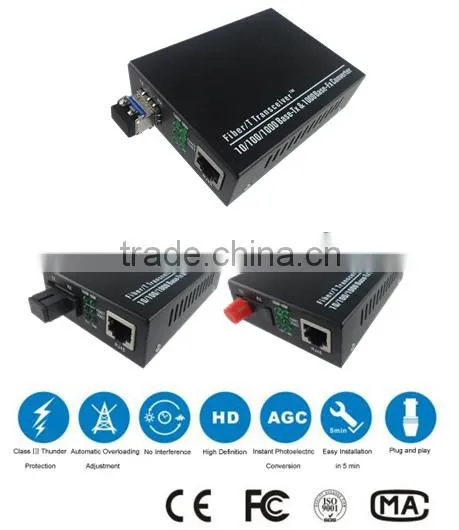

10/100/1000 Mbps Single Fiber Media Converter
DESCRIPTION:
10/100/1000M Media Converter with Multi Opical Ports Multi Electrical Ports and external power supply series is 10/100/1000M auto-adaptation Ethernet fiber optic media converter, supporting the 10/100/1000BASE-TX twisted-pair electrical signal and the 1000BASE-FX light signal interconversion. It expands the network transmitting range limit from the copper wire 100 meters to 2 kilometers (multi- model optical fiber); 120 kilometers (single model optical fiber), and can easily realize the link between HUB, SWITCH, the server, the terminal and long-distance terminal. 10/100/1000M Media Converter with Multi Opical Ports Multi Electrical Ports and external power supply series support plug and play, which means that it can work either independently or with others in a rack case.
FEATURES:
n Complies with IEEE 802.3 10 Base-T standard.
n Complies with IEEE 802.3u 10/100 Base-TX/FX standard.
n Complies with IEEE 802.3X standard.
n 10/100/1000Mbps port with full/half duplex auto-negotiation
n Back pressure flow control for full duplex
n Converter mode with auto-change-forward(Switch)function
n Back pressure flow control for full/half duplex IEEE802.3X.
n Automatic identification of MDI/MDI-X cross-line.
n High-performance 1.25Gbps bandwidth.
n Complies with FCC, 15 CLASS A ,Rosh and CE MARK.
APPLICATION:
n Apply to ready to rise to 1000M extended enterprise network up to 120km
n Apply to images, voice and other multimedia data on an integrated transport network point
n Applies to the computer signal transmission in need of the occasion widely used for computer data transmission network to meet a variety of business needs
n Apply to the campus broadband network, broadcasting network and intelligent residential broadband fiber-to-floor fiber to the home data transfer with the switches and other computer network equipment can be combined to form:-chain, star, ring-type network and other computer networks
TECHINCAL SPECIFICATIONS:
Standard Protocol |
IEEE802.3 10 Base-T standard |
||
|
IEEE802.3u 10/100Base-TX/FX standard |
||
|
IEEE802.1q, IEEE802.1p QoS, |
||
|
IEEE802.1d Spanning Tree |
||
|
IEEE 802.3z standard |
||
|
IEEE 802.3ab standard. |
||
Band Width |
RJ 45 Port:10/100/1000Mbps |
Optical Port: 1.25Gbps |
|
Operation Mode |
Full /Half duplex mode |
||
Connectors |
UTP : RJ-45 |
Fiber connector: SC/ST/FC |
|
Operation Mode |
Full /Half duplex mode |
||
LED Indicators |
POWER, FPL,10/100, FRX, TRX , FDX. |
||
Power Supply |
External |
DC5V 2A |
|
|
Internal |
AC110-250V/50Hz |
|
|
|
DC -32~-72V |
|
|
Power Consumption |
≤5W |
|
Environmental Parameters |
Work Temperature |
0℃~50℃ (32 °F ~ 122 °F ) |
|
|
Storage Temperature |
-40℃~70℃ (-40 °F ~ 158 °F ) |
|
|
Humidity |
5%~90% non-condensing |
|
TP Cable |
Cat5 UTP cable (the max distance up to 100m) |
||
Fiber Cable |
8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km) |
||
|
50/125, 62. 5/125μm(the max distance up to 2km or 5km) |
||
MTBF (Hours) |
>50000 |
||

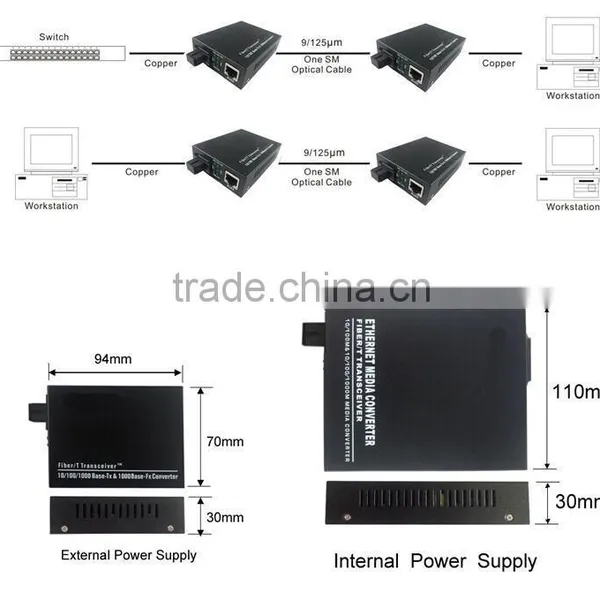

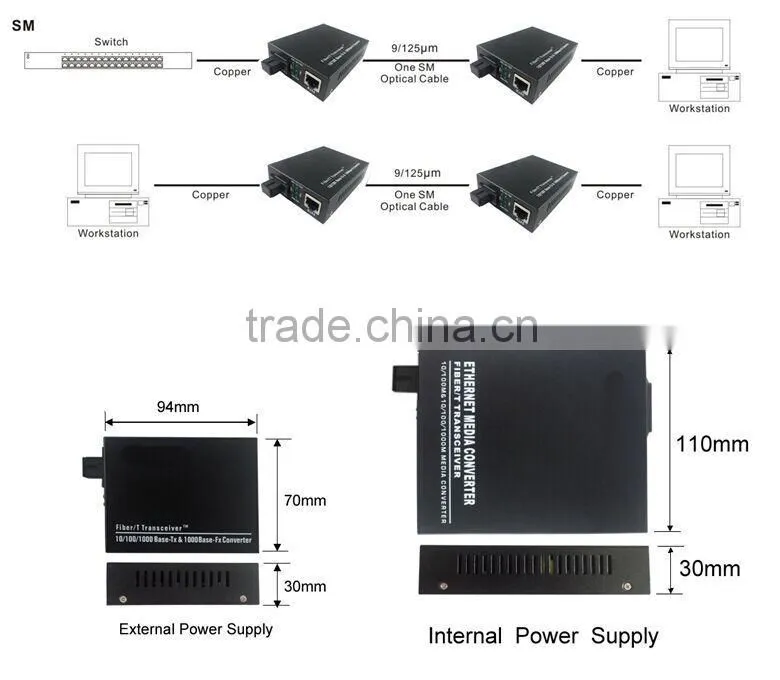

Dimensions(mm) |
External power supply |
94mm*70mm*25mm (3.7 *2.8*0.98 inch) |
|
|
Internal power supply |
140mm*110mm*30mm (5.5 *4.3 *1.2 inch) |
|
|
Socket Card |
157mm*128mm*31mm (6.2 *5.1 *1.2 inch) |
|
Gross Weight |
External power supply |
0.4 kg |
|
|
Internal power supply |
0.8kg |
|
|
Socket Card |
1.0kg |
|
Emission/Safety |
FCC Part 15 , Class A, RoHS and CE Mark |
||
