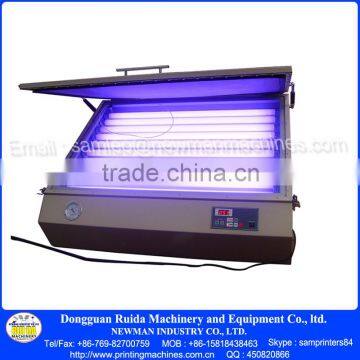

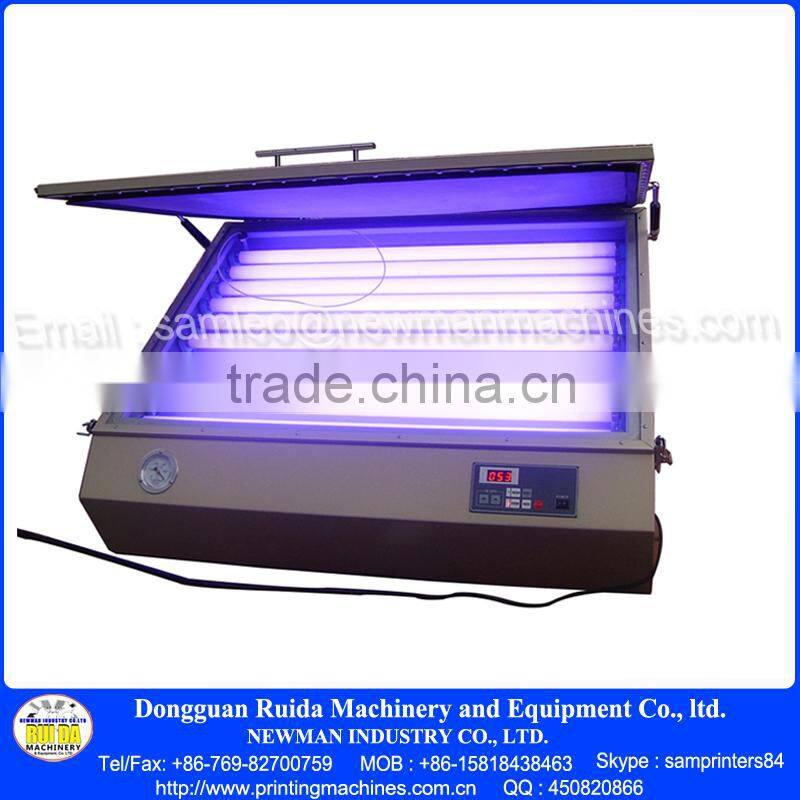

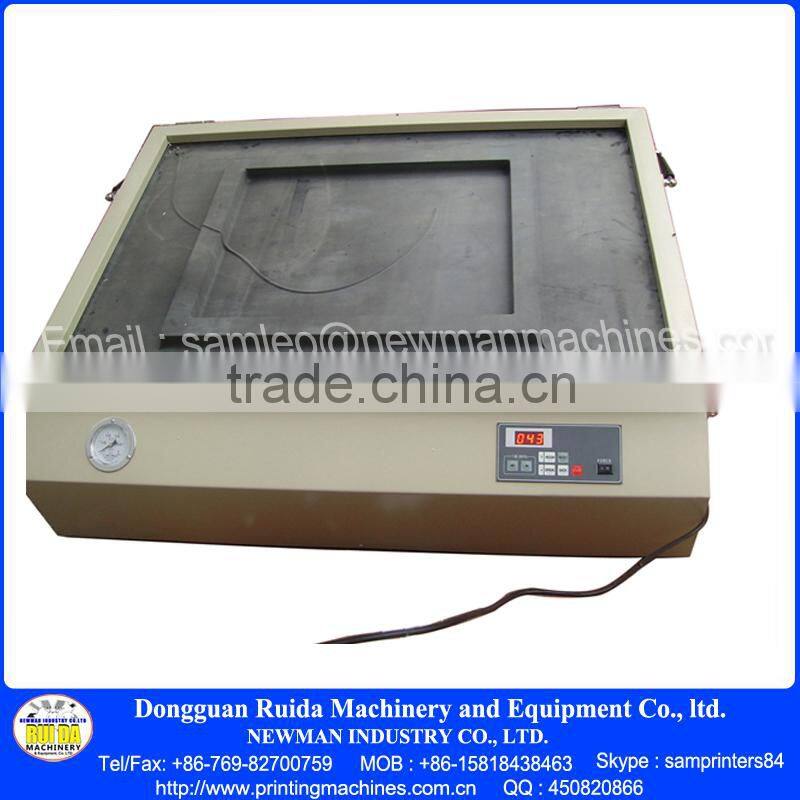

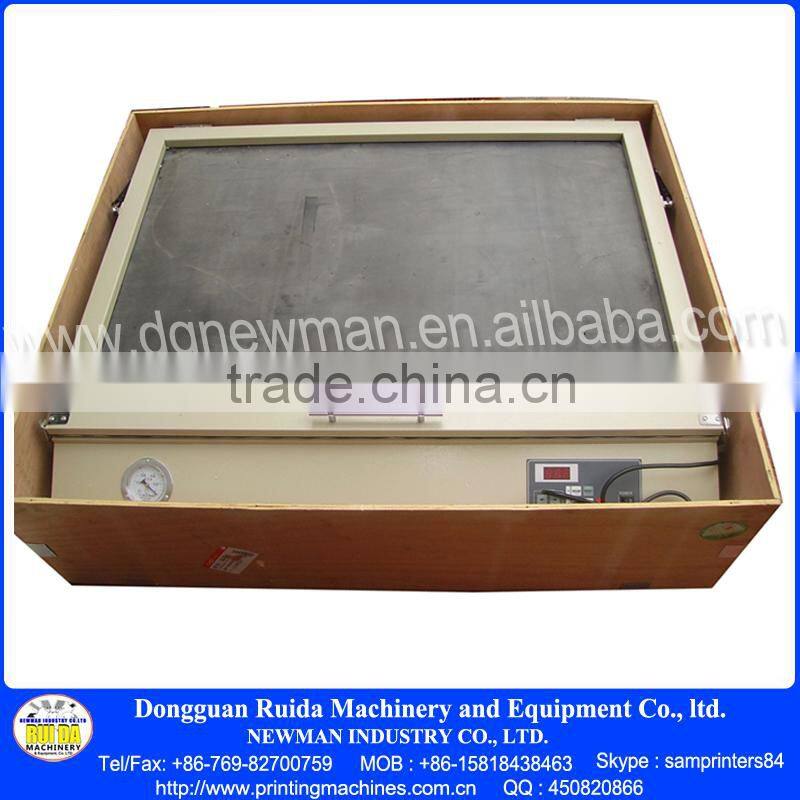

Desktop digital timer silk and pad printing uv vacuum expousure unit with 10 tubes
Product Summary:
UV Exposure Unit is an absolutely necessary equipment during screen plate making process.
the Precise Vacuum UV Exposure Unit is equipped with special UV lamps and auxiliary vacuum suction device. After putting the screens and well printed transparency film on the glass, close its cover and let it work after set the needed vacuum and exposure time, then it will make the screens and transparency film close on the glass tightly by evacuating the air of the vacuum chamber emerging from the rubber blanket. When the set time is up, it will deflate automatically, then the exposure is finished. Please cut off the power supply.
It has the same exposure effect with the exposure unit exposed of iodine gallium light. Even if its exposing time is a little longer, but because of its small volume, light weight, low cost and easy transportation, which is much fit for small business and family workshop for making screens with high precision.
• Model : MD800 Big Vacuum Exposure unit
• Power: 220V/50Hz, 450W
• Light source:UV light
• Lamp power*amount: 30W*10pcs
• Digital display of exposure time setting
• Max.exposure size : 550*850mm
• Gross Weight :72KGS
Working Principle | |
| Screen printing screens are coated with a light sensitive emulsion using a scoop coater. When the emulsion is dry, place a positive print of your image on the screen. Once you burn the screen, the emulsion that did not get any UV will wash out of the screen exposing the tiny pin holes. The surrounding areas that were exposed to UV will be cured. Hence the ink will pass through screen onto your substrate. | |
Main Features | |
1. Rational design & easy operation: based on humanity and practicality principles, with the elaborate designed table type structure, it’s much easier for screen exposure with high precision. |
