Manual 4 color 1 station table top rotary silk screen printing machine with some printing materials for flat items
Applications:
4 Color 1 Station Rotary Screen Press can install four screen plates, it can rotate independently after installation, which is available for four color overprint and design proof of screen printing business.
This machine is the extension of overprint flat screen press, and can be applied to various substrates need overprinting, especially T-shirt. This machine has special T-shirt pallet, which is more convenient and accurate for location when printing.
Even,the machine can be applied for screen printing on clothing, woven, metal, paper, copybook, plastic, wood, glass, ceramic tile, leather and various plane products, especially suitable for small businesses and individual printing shop.
Main features:
1. Rational construction, simple, more practical.
2. Adopt combination design, save place, more convenient for transportation.
3. The machine has all-metal construction,advanced electrostatic spraying and electroplating,durable,ea sy to clear and no rust.
4. All equipments are perfectly packaged, all metal parts are separate packaged, which guarantees products safety during transportation, especially suitable for exportation. 5. We supply installation video, instructions and full set of tools for installation and daily maintenance.
Functions:
1. Screen printing platens can be rotary independently, easy operation, higher efficiency.
2. Super support device make the machine stable and balance.
3. The device of adjusting double spring tension make the machine available for screen frames of different weight.
4. Screen plate clamp can be moved up and down, which can be for all kinds of substrates within 3cm high.
Product Image:
Product Information:
|

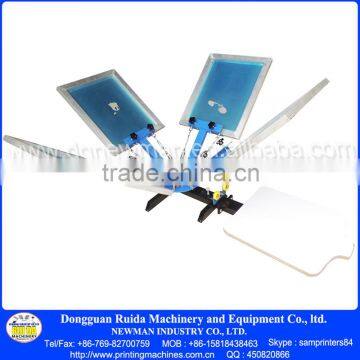

• Model : NS401-S 4 color 1 station screen printer • Pallet size : 450 x 550mm • Detachable shirt boards. • Adjustable double-spring devices are available for screen frames of different weight • Roller Position locking for accurate color registration • Net Weight : 25KG • Gross Weight : 28KG • Packing : 1 strong carton box (60*60*22cm) |
1PC |
| |

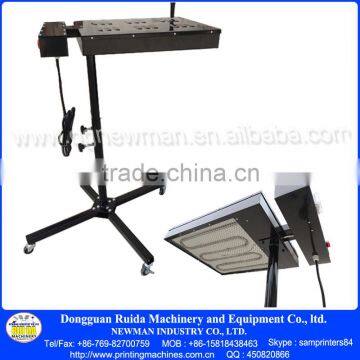

• Model : ND605 New Digital Temperature controller Flash dryer • Power supply : 110V/60Hz,220V/50Hz, 1800W • Heating area : 18"x18"(450x450mm) • Temperature controller • Adjustable height floor stand ( from 750mm to 1200mm ). • Stainless steel screen covering element • 360-degree swivel head • Net Weight : 22KG • Gross Weight : 25KG • Packing : 1 strong carton box 86*59*29cm |
1PC |
| |

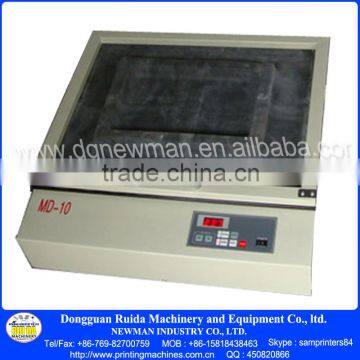

• Mode : MD-10 Vacuum Exposure Unit • Power: 110V,220V/50Hz, 400W • Light source:UV light • Lamp power*amount: 15W*8pcs • Digital display of exposure time setting • Max.frame size : 360*450mm • Gross Weight : 27KGS |
1PC |
| |
Squeegee 33cm | 1PC |

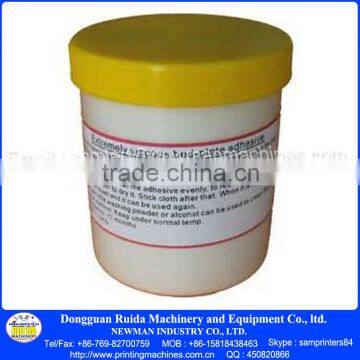

| Screen adhesive | 5PC | |
| 36*45 frame with 140m screen fabric | 1PC | |

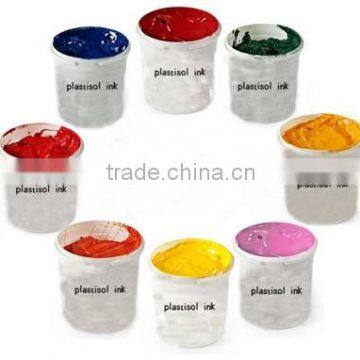

| Water based plastisol ink Black color (1KG) | 1KG |
| Water based plastisol ink White color (1KG) | 1KG | |
| Water based plastisol ink Red color (1KG) | 1KG | |
| Water based plastisol ink Yellow color (1KG) | 1KG | |
| Water based plastisol ink Blue color (1KG) | 1KG |
