Help CenterWheel Dumper 1ton 5ton,cabin,self-loading,dumper Truck
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Drive Wheel:
4x4
Capacity (Load):
1 - 10t
Horsepower:
Other, 27hp
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wheel Dumper From 1ton 5ton,cabin,self-loading,NegotiableMOQ: 1 Set -
CrawlerTruck,53hp,load 2280kgs,Hydrostatic Transmission With CENegotiableMOQ: 1 Unit
-
Mini Crawler Self-loading Dumper,load 500kgs,hydraulic Transmission,1447mm Ultrahigh Dumping HeightNegotiableMOQ: 1 Set
-
Dumper Truck for Sale,53hp,load 2280kgs,Hydrostatic Transmission With CENegotiableMOQ: 1 Unit
-
Wheel Dumper From 1ton to 5ton,cabin,self-loading,NegotiableMOQ: 1 Set
Drive Wheel
4x4
Capacity (Load)
1 - 10t
Horsepower
Other, 27hp
Condition
New
Transmission Type
Automatic
Emission Standard
Euro 3
Fuel Type
Diesel
Gross Vehicle Weight
2000
Place of Origin
Shandong, China
Model Number
JCY20
Dimensions (L x W x H) (mm)
3400x1500x2700mm
Specifications
self-loading dumper from 1ton to 5tonEngine:CHANGCHAI 2100,KM385 or DEUTZ F2L912
Hydraulic tipping Articulate frame
CE,cabin
1.Product info.
wheeled drumper from 1ton to 5ton.
options with cabin,self-loading bucket etc.

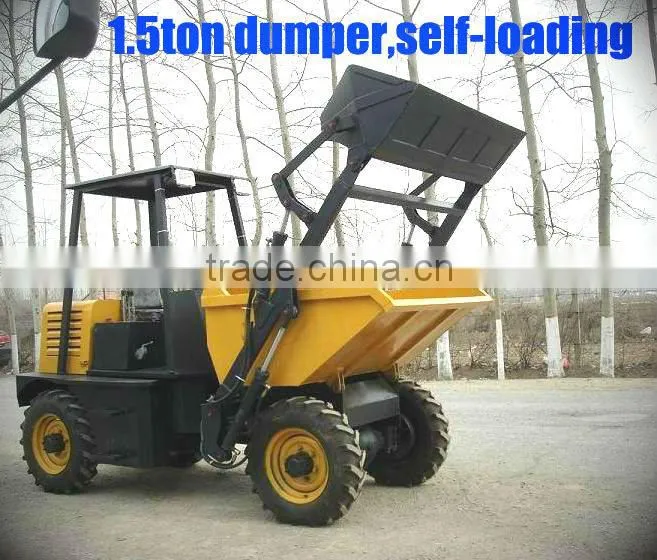

1) model NO.:JCY15---1.5ton
Hand operating, 4X2 wheel drive,
Tire model:front 750-16; rear 500-16.
With Canopy
Front Alex:Driving Rear Alex:Turning
Engine details--ZS1100 model
Engine Type--In-line, water-cooled, single cylinders, diesel engine
Rated Power--11.03kw/15hp
Bucket Capacity--0.75m³
Rated Loading Weight--1500kg
Dimension--2800*1500*2200mm
Option:
German DEUTZ engine:+$1600.
2) model NO.:JCY15S---2.0ton----with self loading bucket
Full hydraulic operation, 4X4 wheel drive,
Tire model:Front tire:825/16,Rear Tire:825/16.
Engine details--ZS1105 model
Engine Type--In-line, water-cooled, single cylinders, diesel engine
Rated Power--18kw/24hp
Bucket Capacity--1.2m³
Rated Loading Weight--2000kg
Dimension--3017*1900*2465mm
Option:
German DEUTZ engine
cabin.

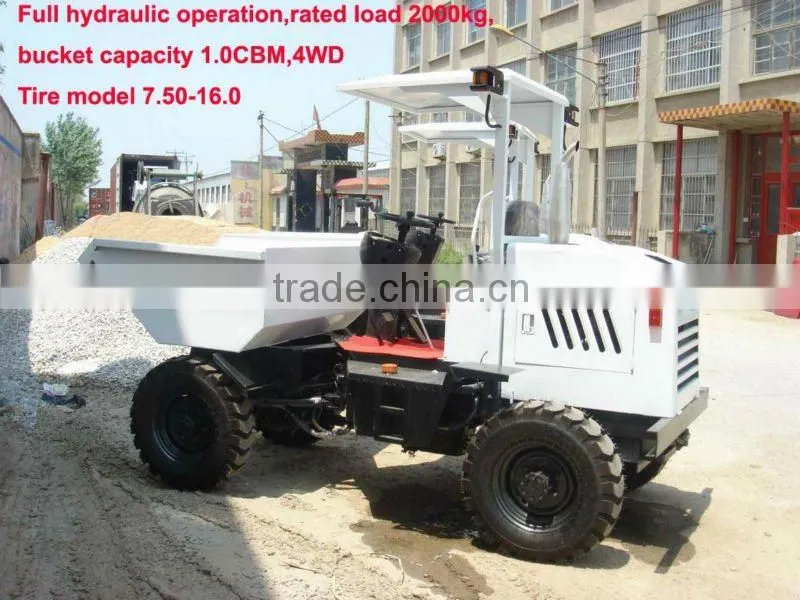

3) model NO.:JCY20---2.0ton
Full hydraulic operation, 4X4 wheel drive,
Tire model:Front tire:825/16,Rear Tire:825/16.
Engine details--JD1115 model
Engine Type--In-line, water-cooled,3 cylinders, diesel engine
Rated Power--20kw/27hp
Bucket Capacity--1.0m³
Rated Loading Weight--2000kg
Dimension--3017*1900*2465mm
Option:
German DEUTZ engine
cabin.
4) model NO.:JCY20S---2.0ton---with self-loading bucket
Full hydraulic operation, 4X4 wheel drive,
Tire model:Front tire:825/16,Rear Tire:825/16.
Engine details--JD1115 model
Engine Type--In-line, water-cooled, 3 cylinders, diesel engine
Rated Power--20kw/27hp
Bucket Capacity--1.0m³
Rated Loading Weight--2000kg
Dimension--3017*1900*2465mm
Option:
German DEUTZ engine
Yanmar made in China
cabin.

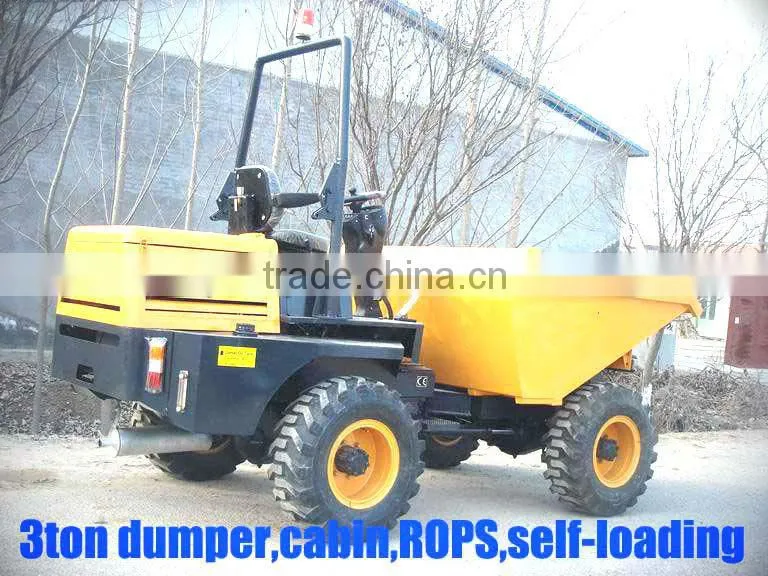

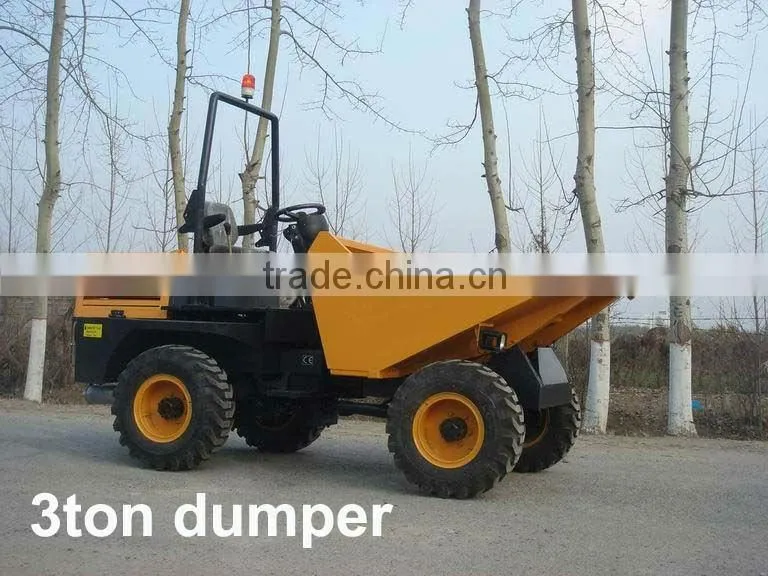

5) model NO.:JCY30---3.0ton
Full hydraulic operation, 4X4 wheel drive,
Tire model:12-16.5
Engine details--JD1115 model
Engine Type--In-line, water-cooled, 4 cylinders, diesel engine
Rated Power--38kw/51hp
Bucket Capacity--1.5m³
Rated Loading Weight--3000kg
Dimension--3650*2000*2650mm
Option:
German DEUTZ engine
Yanmar made in China

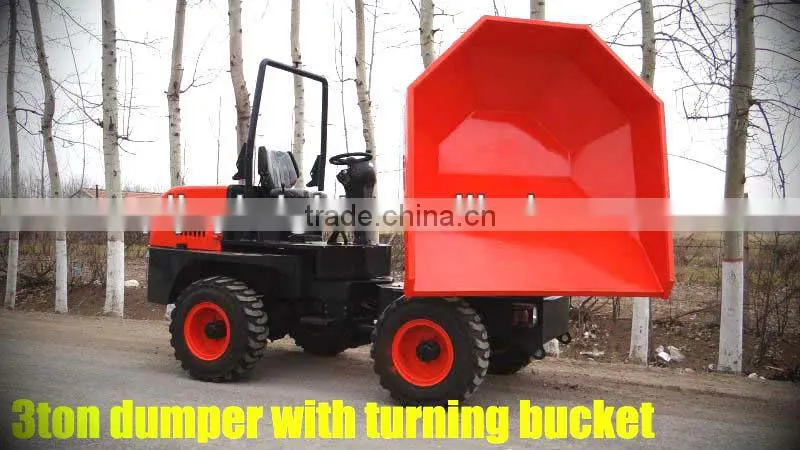

180 degree turning bucket
cabin.
6) model NO.:JCY30S---3.0ton----with self loading bucket
Full hydraulic operation, 4X4 wheel drive,
Tire model:12-16.5
Engine details--JD1115 model
Engine Type--In-line, water-cooled, 4 cylinders, diesel engine
Rated Power--38kw/51hp
Bucket Capacity--1.5m³
Rated Loading Weight--3000kg
Dimension--3650*2000*2650mm
Option:
German DEUTZ engine
Yanmar made in China
cabin.

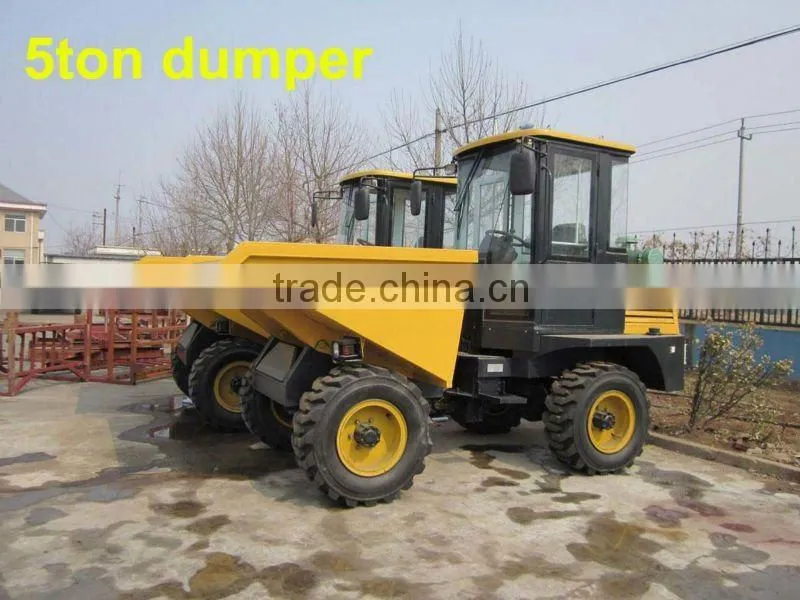

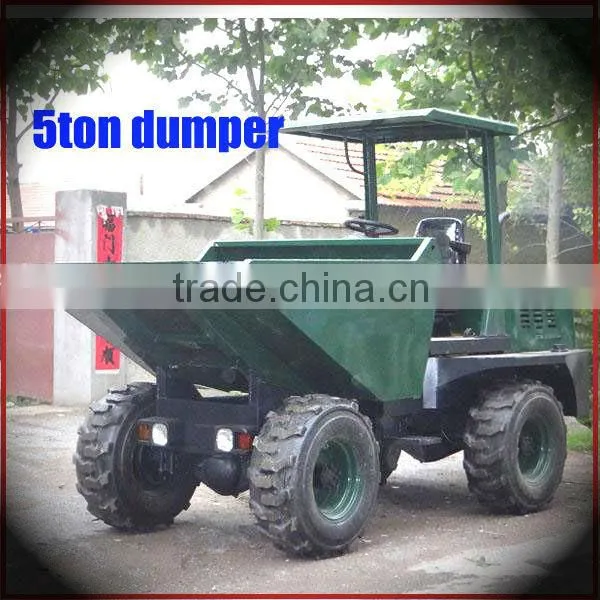

7) model NO.:JCY50---5.0ton
Full hydraulic operation, 4X4 wheel drive,
Tire model:20.5/70-16
Engine details--4102 model
Engine Type--In-line, water-cooled, 4 cylinders, diesel engine
Rated Power--47wk/63hp
Bucket Capacity--2.0m³
Rated Loading Weight--5000kg
Dimension--5050x1800x2300mm(L*W*H)
Option:
German DEUTZ engine
A/C in cabin.
cabin.
We can make the color by your requirement;
We can do OEM.
Dumpers brief introduction:
As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc,. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield, protecting road section, the municipal engineering, and underground mines and so on.
3.Pictures:

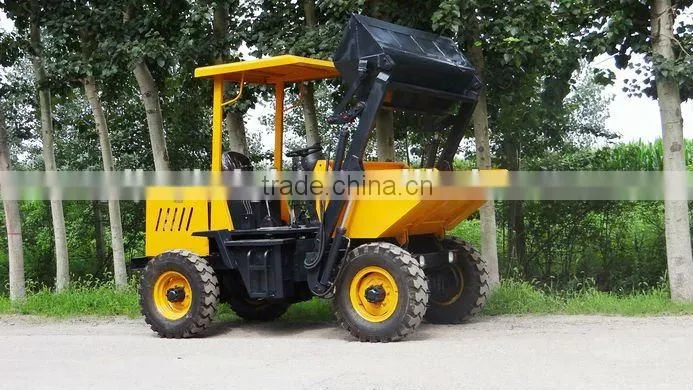

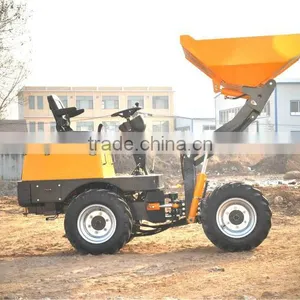

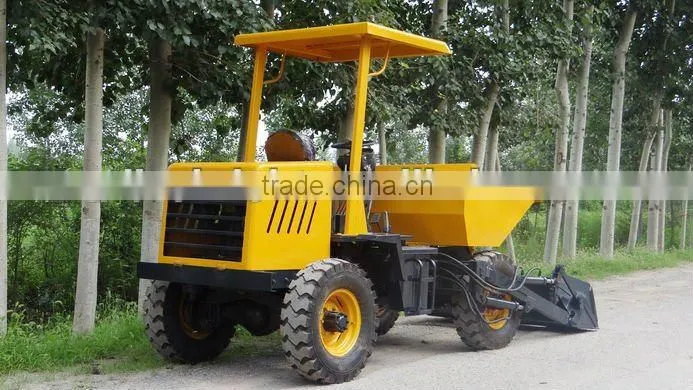

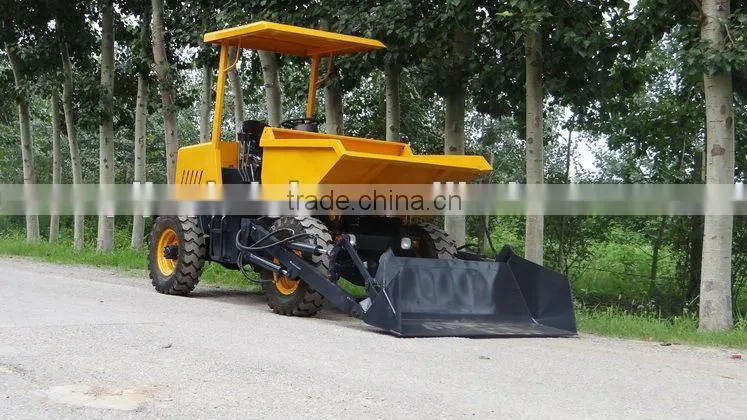

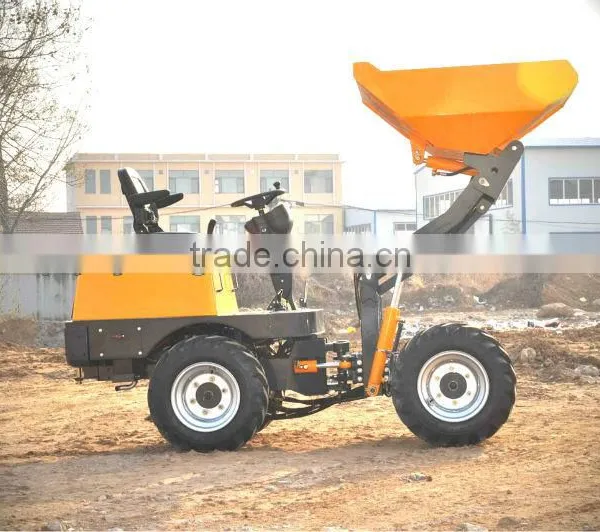

Below is Self-loading JSCY20 model:
4.Loading:
4 units in 1 40'HQ container
5.Fast delivery time:
20days.
We also supply heavier dumpers:
Warranty term:2years
our service after sales is 7x24hours forever....
please contact us for more info.
