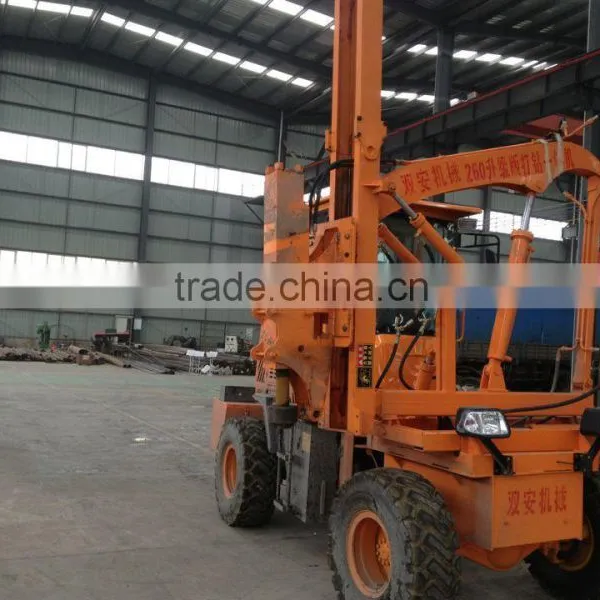

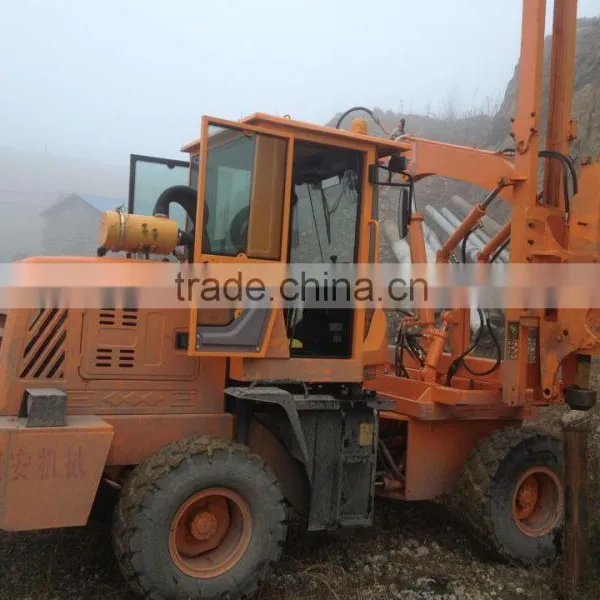

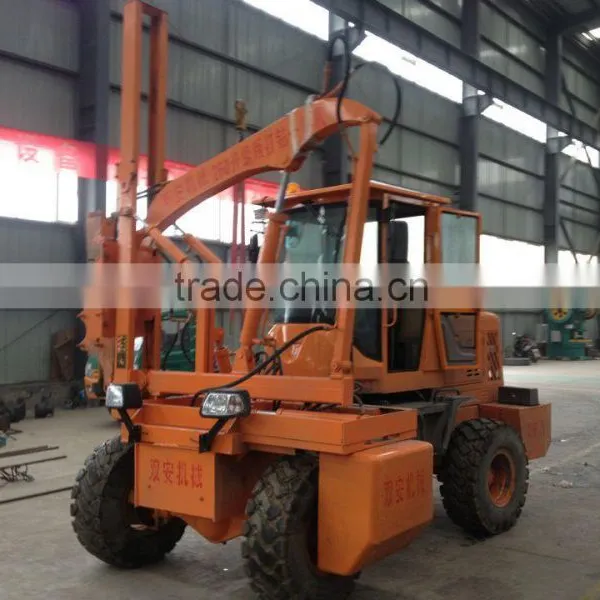

Help CenterNew Desinged Bore Pile Drilling Machine,Pile Driving Machine
Related Products
-
New Designed Pile Drilling Machine,Hydraulic Piling MachineUS$ 9,500 - 19,500MOQ: 1 Set -
New Designed China Supplier Drilling MachineUS$ 9,500 - 18,000MOQ: 1 Set
-
New Designed Highway Safety Barrier Installation MachineUS$ 9,500 - 18,000MOQ: 1 Set
-
New Designed Drilling Machine for Digging HoleUS$ 9,500 - 19,500MOQ: 1 Set
-
Highroad Guardrail Pile Driver,Hydraulic Piling MachineUS$ 9,800 - 19,800MOQ: 1 Set
Piling Drilling Machine
Welcome to Laizhou Shuangan Machinery Co., Ltd
We are a professional and reliable manufacturer of Highway Guardrail machines. At present,our main product are hydraulic pile driving machine and hydraulic drilling machine
Of course,we have been always developing new products.
And our machine has been exported to South Asia, East Asia, Middle& South America, East Europe and etc.

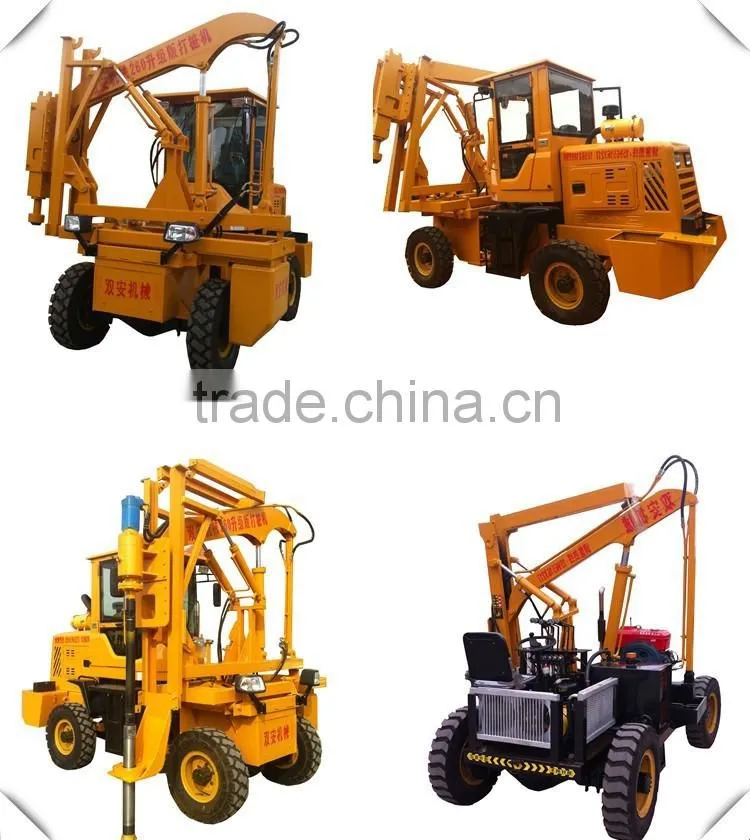

Specifications for different model

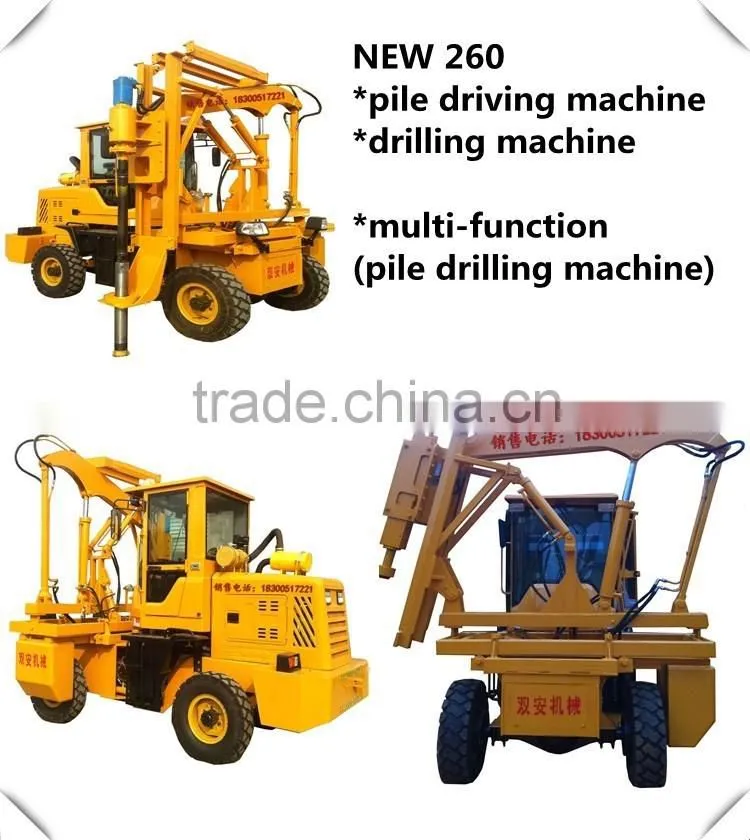

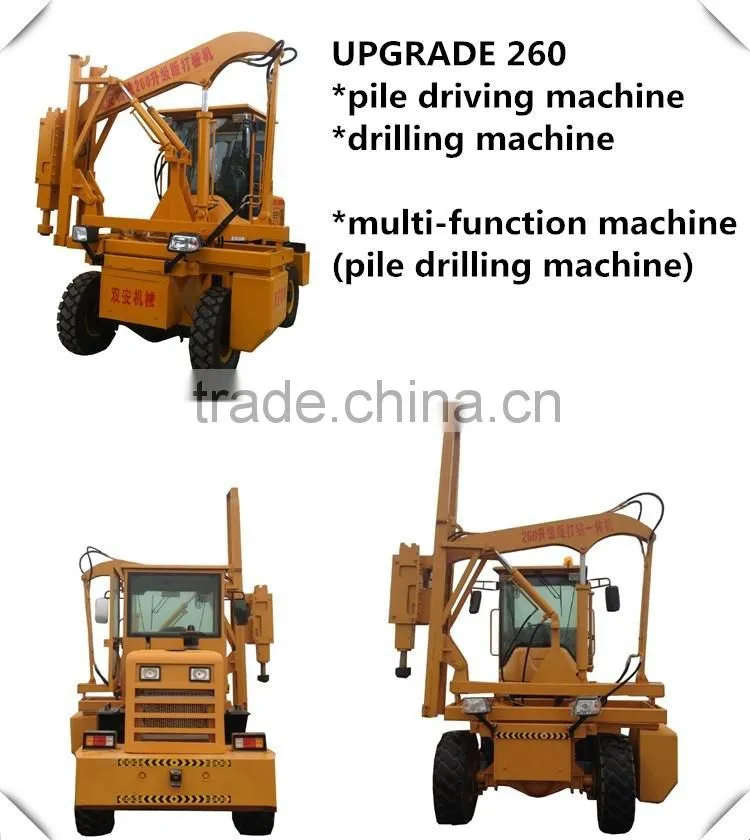

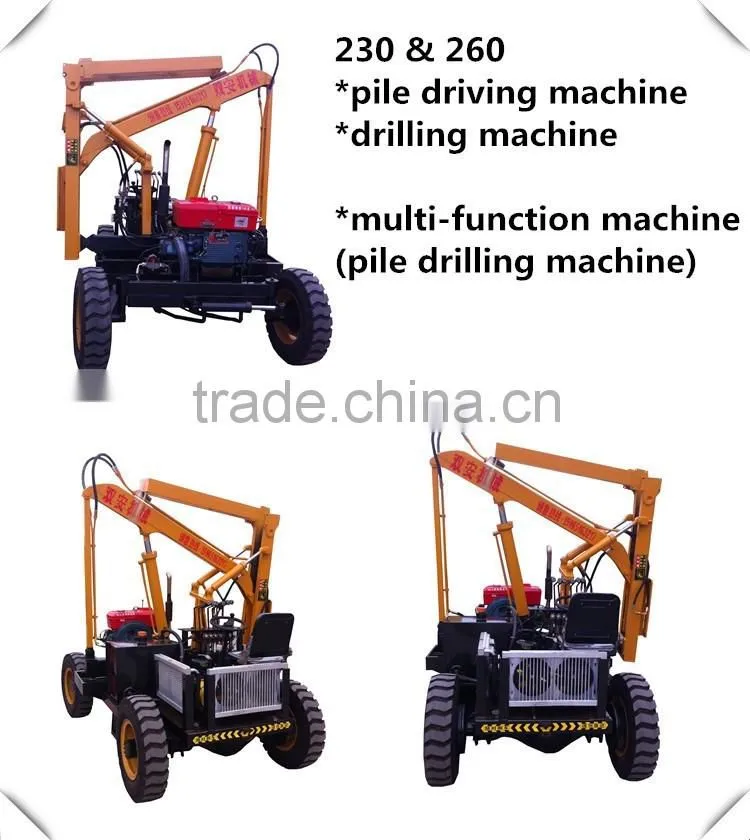

| Specifications | Unit | 230 | 260 | New 260 | 4 cylinder 260 | 4 cylinder 330 |
| Engine power | KW | 20.5 | 20.5 | 20.5 | 33 | 33 |
| Hydraulic hammer model | 230 | 260 | 260 | 260 | 330 | |
| Hydraulic hammer impact frequency | B/min | 120~660 | 120~560 | 120~560 | 120~560 | 42~360 |
| Hydraulic hammer work flow | L/min | 68 | 79 | 79 | 79 | 96 |
| Working pressure of hydraulic hammer | MP | 13 | 13~16 | 13~16 | 13~16 | 14~17 |
| Hydraulic system flow | L/min | 110 | 110 | 110 | 110 | 138 |
| system pressure | MP | 13 | 16 | 16 | 16 | 16 |
| Piling efficiency (minimum) | M/h | 80 | 100 | 110 | 130 | 130 |
| Maximum piling height | M | 2.6 | 2.6 | 2.8 | 2.8 | 2.8 |
| Drilling Speed | m/min | 1 | 1 | 1 | 1 | 1 |
| Drilling diameter | mm | 130~150 | 130~150 | 130~150 | 130~165 | 130~165 |
| Drilling depth | M | 2 | 2 | 2 | 2 | 2 |
| Tread (distance between two wheels) | mm | 1800 | 1800 | 1600 | 1800 | 1800 |
| Driving Speed | KM/h | 4.5 | 4.5 | 25 | 30 | 30 |
| Dimension(L*W*H) | m | 3*2.1*2.8 | 3*2.1*2.8 | 3.8*2.5*3.2 | 3.8*2.5*3.2 | 3.8*2.5*3.2 |
| Net weight | KG | 1500 | 1750 | 2500 | 3500 | 3650 |
| Inside Room | no | no | yes | yes | yes | |
| Air-container | no | no | can change | can change | can change |
Q:What is the main function of our pile driver?
A: It has different models,widely used for highway safety project guardrail Installation.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 6 months warranty(except for the hammer),during this time all accessories broken can be changed for a new one.
Q:What is the lead time and shipping method?
A:Usually we need 10-20 days to finish the production, and we send the machine by sea.
Q:What about your payment items?
A:T/T or L/C at sight
