T8 G13 18-24w led tube light

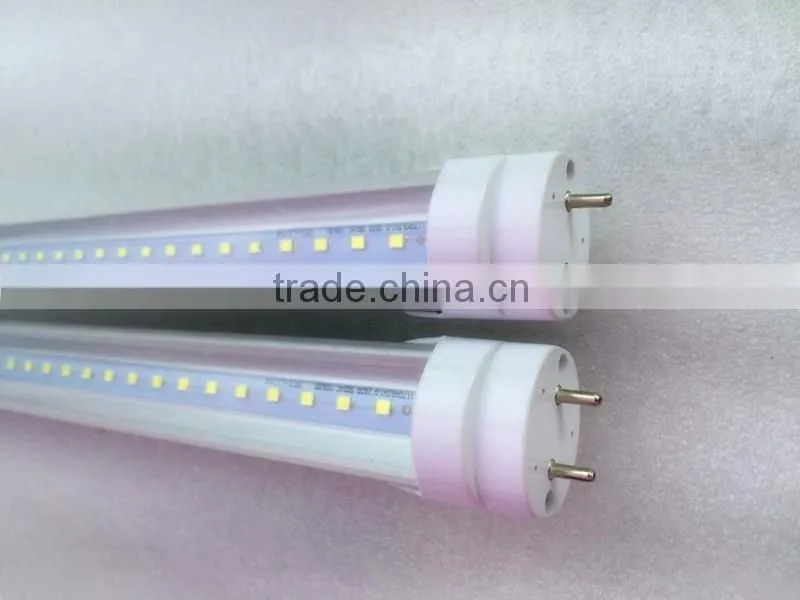

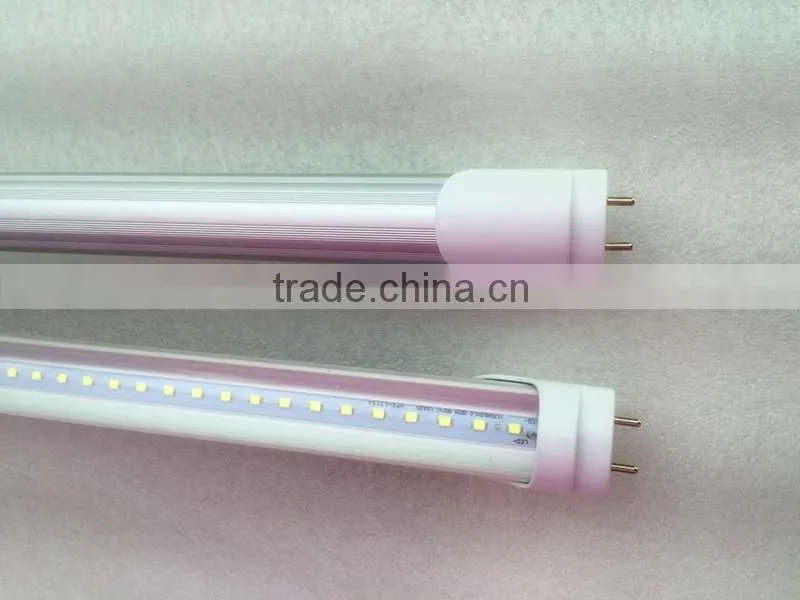

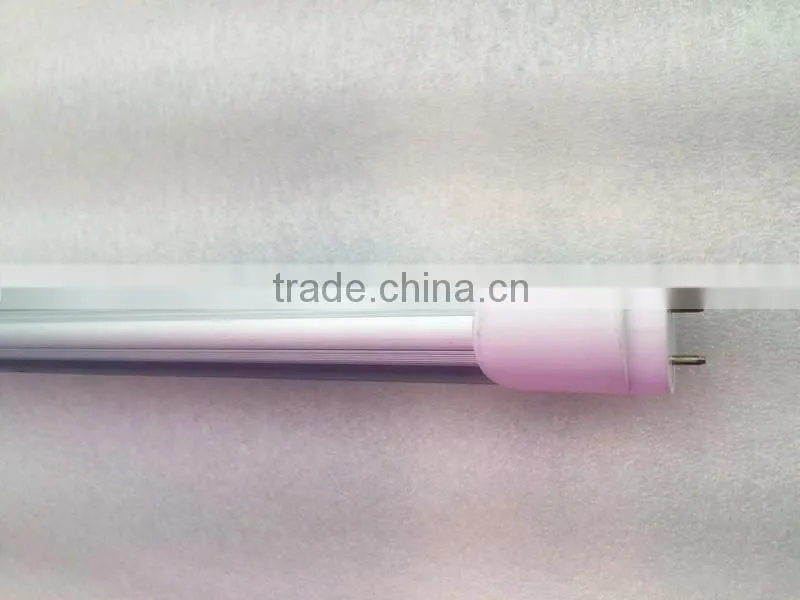

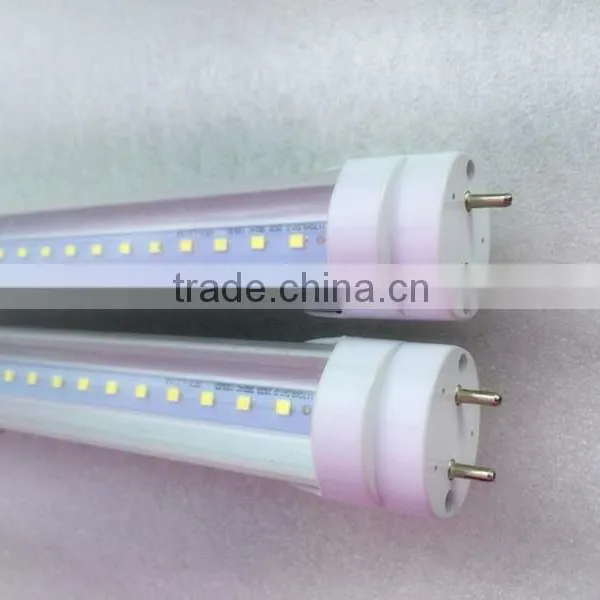

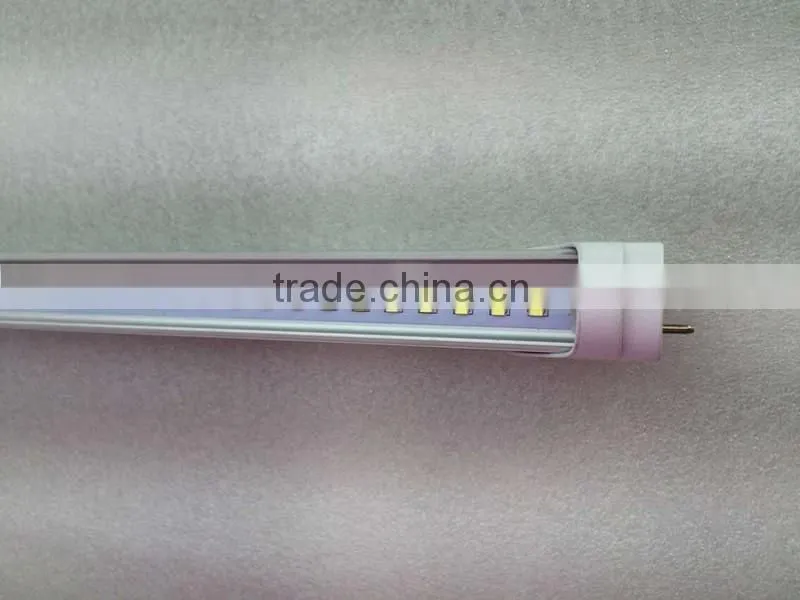

Pictures of of T8 led tube light :
Specifications of T8 led tube light :
| Item Number | WYP818-1200mm-22W | |
| Description | G13 led tube light(Integrated/Single pin/R17D available) |
|
| Input Voltage: | 85~265V ac | |
| Frequency Range | 50Hz~60Hz | |
| Driver type | Isolated drive | |
| Power Factor | > 0.95 | |
| LED Working Voltage | DC30~36V | |
| Application | showcase;office;hoetl;room; supermarket;school etc | |
| Color rending index | Ra>80 | |
| LED Consumption | 22W | |
| LED Luminous Efficiency | >100 lm/W(when clear cover) | |
| LED Initial Flux | CW: 2200lm | |
| Lamp Efficiency | > 90% | |
| Net weight | 350g/pc | |
| Beam Angle | 120degree | |
| Lens options | frosted/clear/Milky | |
| Warranty | 2 years | |
| Color Temperature | warm white: 3,000K~3,200K natural white: 4,000K~4,500K cool white: 6,000K~6,500K |
|
| Certificates | CE(EMC+LVD), RoHS,DLC | |
| Light Distribution | sysmmetric/ rectangle | |
| Junction Temperature | < 80 centigrade | |
| Operation Temperature | from -20 centigrade to + 50 centigrade | |
| IP Grade | IP44 | |
| Life Span | at least 50, 000 hours | |
| Size | 1214*26*26mm | |
| Housing Material | Aluminum | |
Production for T8 led tube light :
More durable than traditional lighting, long life-span last up to 50,000 hours.
1.Save more than 80% energy.
2.Environment friendly, no UV, no mercury and no phosphor.
3.No flicker, no noise.
4.Super bright light yet soft and uniform.
5.No maintenance required for the life of the unit.
6.CE RoHS TUV DLC approved.
7.Good quality and competitive price.

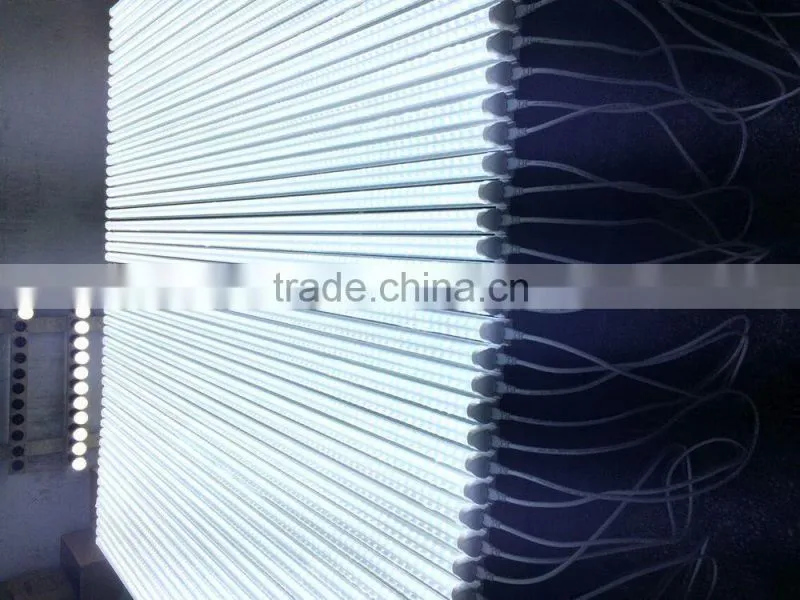

Test of T8 led tube light :
Features of T8 led tube light :
1. VDE certificate for 120cm 150cm
2. High lumen, high efficiency, above 3000 lumen at 28w-30w,more than 100 lm/w.
3. Great heat dissipation, working temperature rising is only 20°C.
4. Adopt super bright SMD3528/SMD5630 LEDS, high luminous efficiency, standard luminous efficiency and so on.
5. More than 50~60% power saved.
6. Environment friendly, no mercury, no UV, no noise, no flicker, eyes protection.
7. Rotatable end cap
8. Replaceable cover
9. Instant start, transient response, without delay, without damage to the frequent switching.
10. Built with special LED driver with constant current supply to ensure longer operating life and to minimize brightness decline due to over-driven.
11. Perfect housing: aluminum &PC, optional covers, transparent cover, striped cover and milky with anti-glare.
12. Anti-shock & anti-moisture.
13. Special design of structure : "P" and patented "V" shape, especially "V" model, Larger beam angle, perfect light distribution.
14. Lifespan>50000hrs
15. Warranty:3 years

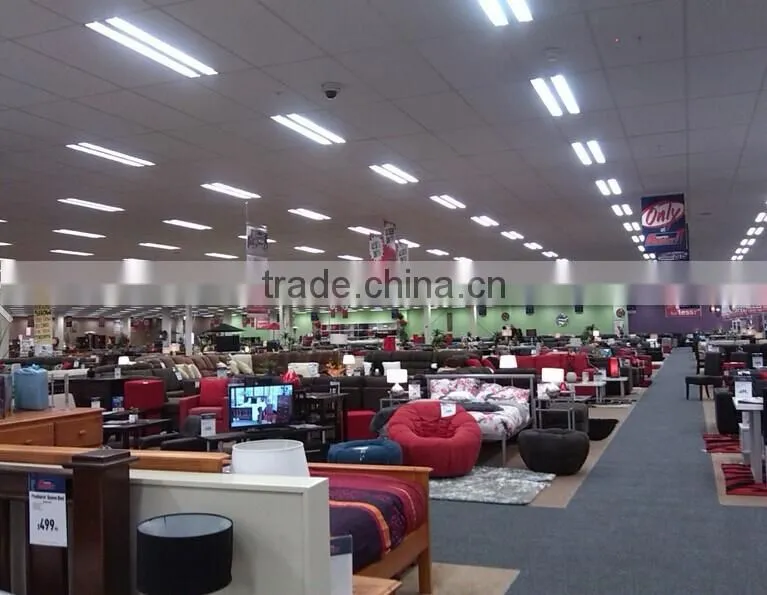

Applications of T8 led tube light :

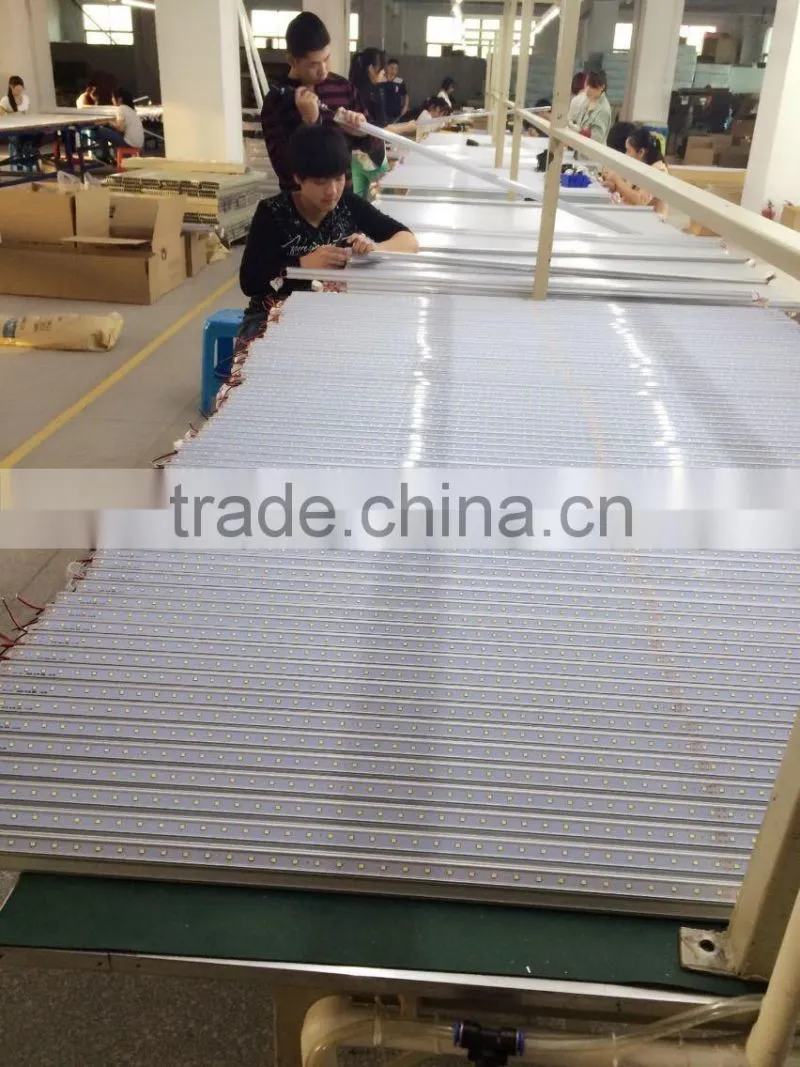

Production&Quality Control of led tube light :
1.QC in every production process
2.Great material for heat sink:
72Hrs for aging light soure,
72Hrs for aging IC,compacitor,and resistor
LED Cooler Door Light ,25pcs/box , 128*24*24cm/box
Trade Term:
1. Payment term : L/C, T/T in advance
2. Delivery: 5-7 days for sample order, 10-15 days for bulk order.
3. Shipping by sea, by air, by Express (DHL/UPS/FEDEX/EMS/TNT).
4. Shipping freight will be quoted when you have order.
5. Shipping port: Mainly Shenzhen, China Mainland. Depends on clients’ request
6. If you want special discount. Please let us know what quantity you can order. Bigger order will be better discount.
Our promises
1. All kinds of latest LED products can be provided with high quality based on reasonable profit
2. We mainly produce LED floodlight, LED high bay light, LED street light, LED canopy light, LED tube light, LED bulb, LED down light etc.
3. Technical assistance;
4. Good after-sales services;
5. Agents are welcomed;
We also make customised products, any question, don't hesitate to contact me!
Photo of Our Factory:
Shenzhen Victory Lighting is a manufacturer who committed to applying the latest light source, new techniques and new materials into light business. We provide a variety of moveable or fixed energy-saving lamps and lanterns by ourselves and offer the best and efficient services. Victory's products are used in areas ranging from electric power, railways, public securities, fire protection, police offices, metallurgies, coal mine, petrochemical industry, oil fields, army to other industries.
welcome friends from all over the world to our factories to visit and test the products.
FAQ
Q: What products you main business?
A: We Specializing in led tube light, led canopy light, led flood light, led street light, led high bay light, led ceiling light etc.
Q: What certificate you got already?
A: led flood light( CE ROHS certificate and LM-79 Report , UL is pending); led canopy light (CE ROHS certificate and LM-79 Report ); led street light(CE ROHS certificate); led tube light(CE ROHS DLC certificate); led ceiling light(CE ROHS certificate).
Q: How about your quality?
A: Victory Lighting use top quality material to make sure stable quality and enough brightness, we supply high cost performance products. Every product passed aging test well then delivery to every client.
Q: How long the wattanty?
A: We supply 2-5 years warranty. Once you find quality problem from our company during warranty period, please supply us pictures or video to confirm, if it's our quality problem, we will send you relacement, don't undertake shipping cost.
Q: How long for the delivery time?
A: For led flood light, led canopy light, led street light, led high bay light and led bulb delivery time within 7 working days after receive payment. For led tube light delivery time within 10 working days after receive payment. Bulk order depends on quantity.
Q: How to place an order?
A: After confirm all information with you, we will email you performa invoice, please make make payment through Bank Transfer, Paypal or Western Union and email us bank slip. We will finish production on time, and dispatch goods soon. We will tell you tracking no. and follow it every day till you recieve goods.
Q: How can I contact you?
A: Any question or inquiry, please email me or contact on me Skype directly. My Skype ID:chen.eva35
Welcome to your inquiry!
Shenzhen Victory Lighting Co.,Ltd.
Contact : Lynn Chen
Skype: chen.eva35
Mobile: +86 13922838649
Tel: +86 755 27926989
Available size:2ft/3ft/4ft/5ft/6ft/8ft
