Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > 5m Upright Genie Scissor Lift

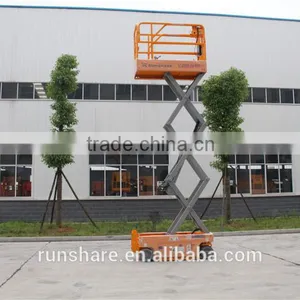

5m Upright Genie Scissor Lift

Name: 5m Upright Genie Scissor Lift
Brand: Runshare
SKU: 104935017

5m Upright Genie Scissor Lift thumbnail-1

5m Upright Genie Scissor Lift thumbnail-2

5m Upright Genie Scissor Lift thumbnail-3

US$ 10,000 - 20,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Hunan, China

Brand Name:

Runshare

Model Number:

GTJZ-05M

Contact Supplier Request Quote Chat Now

Hunan Runshare Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

main Chinese port as need

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hunan, China

Brand Name Runshare

Model Number GTJZ-05M

Lift Mechanism Scissor Lift

Lift Drive / Actuation Hydraulic

Power 24/3v/kw

Rated Loading Capacity 230kg

Min. Lifting Height 2.05m

Max. Lifting Height 6.5m

Table Size 1.7*0.76m

Overall Dimensions 1.86*0.76*2.05m

Weight 1350kgs

Certification CE/GOST/ISO/AS/SGS

Warranty 1 year

After-sales Service Provided Overseas service center available

Hunan Runshare Heavy Industry Co.,Ltd.

Best Service! Best Choice!

Product Specifications

Model	GTJZ05M
Working Height Maximum	6.5m
Platform Height Maximum	4.5m
Max platform occupancy	2
Lift capacity	230kg
Lift capacity-extension deck	120kg
Length(stowed)	1.86m
Width(stowed)	0.76m
Height(stowed)	2.05m
Height(guardrail fold stowed)	1.645m
Platform height minimum	0.91m
Platform measurement	*1.70.76m**
Length extension deck	0.9m
Ground clearance-center	85/20mm
Turing radius Minimum	0/1.7m
Travel speed(stowed)	3.2km/h
Travel speed(raised )	0.8km/h
Grade-ability	25%
Max. allowable slope	1.5/3
Tire	*305114 mm**
weight	1350kg
Lift motor	24/3v/kw
battery	*46/216V/Ah**
Charger	24/20-30V/A

Configuration

CONFIGURATION

DC motor --Bucher (USA)/ CB (China)

Hydraulic Pump--Bucher ( USA )/Parker (China)

Valve--Hydrofoss ( USA )

Brake--White (USA)/Dali (China)/Yiqun (China)

RE motor--White ( USA) / Dali (China)

Brake release pump--White (USA ) / Qiangtian (China)

Battery--US (USA) / Trojan ( USA )

Charger--Longsheng ( China )

Controller-DLT(USA)/ Ruitai /Zhongdian (China)

Hour meter--Curtis ( USA)/ Honeywell ( USA)

Core technology

Production capacity

Trade Shows

Certifications

Company Information

About Us

Runshare is the biggest manufacturer of aerial work platform in China. We can supply the telescopic boom, articulated boom and scissor platform from 5m to 44m.

ADD:Runshare industry park,Lingang new industrial Zone,Changsha, Hunan, China

Tel: 0086-18684738272

Contact person:Tina,Tan

SKYPE:fly02004721

Why Choose Us

1.Runshare is real manufacturer engaged in research, development, manufacturing, sale and service of aerial work equipment from 5m to 44m.
2. We could help customer choose the right model specially..
3. Main elements are used world famous brand.
4. Provide timely delivery,Sales engineers are ready to solve all problem.

5. Provide spare parts, worksite installation guidance and training operation.

Our Services

1.Presale service:Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.

2.In sale service:We provide free guidance of installation and debugging and free training of operation,care and maintenance.

3.After-sale service:One year warranty service of whole machine and lifetime maintenance; regularly markets visits and freeguidance of whole machine's maintenance and reparations.

4.Quick responses:we have a complete service network, hotline (86-731-84939476) services for 24 hours and assist you to solve the problem in a short time.

5.Parts supply:we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.

FAQ

1.Delievery Time?

From 1 week to 1 month after we receive the order.

2.payments?

T/T and L/C, other kinds, pls contact with us.

3.MOQ?

1 set

4.Trade term?

FOB/CIF to your nearest seaports.

5.Power source?

Battery or Diesel engine.
