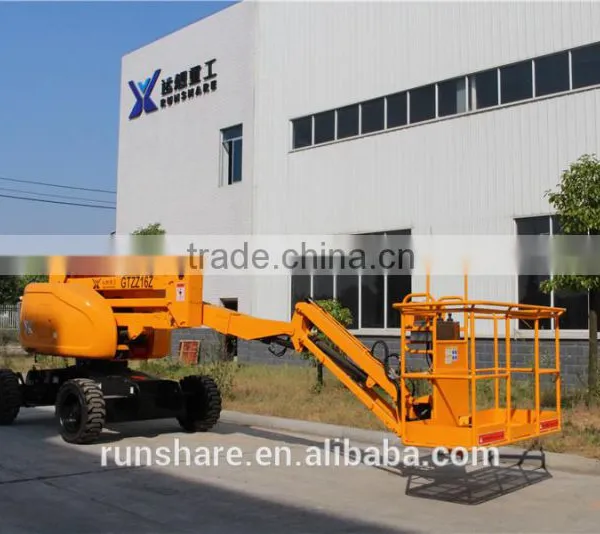

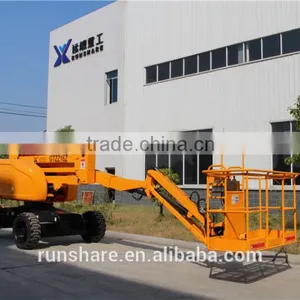

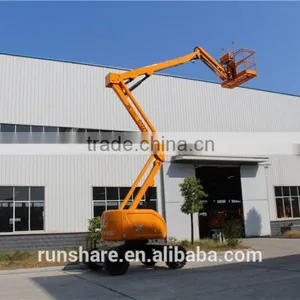

Help Center16m Aerial Boom Lift for Construction
Related Products
-
16m Self-propelled Raised Boom LiftUS$ 10,000 - 10,000MOQ: 1 Set -
16m Self-propelled Diesel Boom LiftUS$ 10,000 - 10,000MOQ: 1 Set
-
360 Continuous 22m Cheap Lift PlatformUS$ 10,000 - 100,000MOQ: 1 Set
-
20m Flexional Lift Table With Deutz EngineUS$ 10,000 - 100,000MOQ: 1 Set
-
20m Paint Remover MachineUS$ 10,000 - 100,000MOQ: 1 Set
Hunan Runshare Heavy Industry Co.,Ltd.
Best Service! Best Choice!
| Model | GTZZ-16Z | ||
| Working Height Maximum | 18m | ||
| Platform Height Maximum | 16m | ||
| Working radius maximum | 9.5m | ||
| Lift capacity | 230kg | ||
| Crossing height maximum | 7.75m | ||
| Length( stowed) | 6.8m | ||
| Width (stowed) | 2.29m | ||
| Height(stowed) | 2.38m | ||
| Wheel base | 2.2m | ||
| Ground clearance | 430mm | ||
| Platform measurement | 1.83*0.76*1.13m | ||
| Tuning radius (inside) | 3.0m | ||
| Tuning radius (outside) | 5.2m | ||
| Travel speed(stowed) |
6.3km/h(2WD) 4.2km/h(4WD) |
||
| Travel speed(raised or extended) | 1.1km/h | ||
| Grade ability | 30%(2WD);40%(4WD) | ||
| Solid tire | 33*12-20 | ||
| Swing speed | 0-0.8rpm | ||
| Turn table swing | 360 Continuous | ||
| Platform leveling | Automatic leveling | ||
| Platform rotation | ±80 | ||
| Fuel tank volume | 100L | ||
| Total weight | 7677kg(2WD),7877kg(4WD) | ||
| Control voltage | 12V | ||
| Drive &Steering mode | 4*2*2,4*4*2 | ||
| Engine |
DEUTZ D2011L03i Y(36.3kw/2600rpm) Yamaha(35.5kw/2200rpm) |
||
Configuration
| CONFIGURATION | |||
| Engine |
Yamaha from Japan; Deutz from Germany; |
||
| Variable pump |
Rexroth from German SAUER from USA |
||
| Gear pump | SALAMI from Italy | ||
| Travel motor |
Rexroth from German SAUER from USA |
||
| Travel reducer |
Rexroth from German OMONI from USA PMP from Italy |
||
| Hydraulic valve |
Hydroforce from USA Northman from China |
||
| Rotary motor: | HELAC from USA | ||
core technology
About Us
Runshare is the biggest manufacturer of aerial work platform in China. We can supply the telescopic boom, articulated boom and scissor platform from 5m to 44m.
Contact Us
ADD:Runshare industry park,Lingang new industrial Zone,Changsha, Hunan, China
Tel: 0086-18684738272
Contact person:Tina,Tan
SKYPE:fly02004721
Why Choose Us
1.Runshare is real manufacturer engaged in research, development, manufacturing, sale and service of aerial work equipment from 5m to 44m.
2.We could help customer choose the right model specially..
3.Main elements are used world famous brand.
4.Provide timely delivery,Sales engineers are ready to solve all problem.
5.Provide spare parts, worksite installation guidance and training operation.
1.Presale service:Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
2.In sale service:We provide free guidance of installation and debugging and free training of operation,care and maintenance.
3.After-sale service:One year warranty service of whole machine and lifetime maintenance; regularly markets visits and freeguidance of whole machine's maintenance and reparations.
4.Quick responses:we have a complete service network, hotline (86-731-84939476) services for 24 hours and assist you to solve the problem in a short time.
5.Parts supply:we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
1.Delievery Time?
From 1 week to 1 month after we receive the order.
2.payments?
T/T and L/C, other kinds, pls contact with us.
3.MOQ?
1 set
4.Trade term?
FOB/CIF to your nearest seaports.
5.Power source?
Battery or Diesel engine.
6.Drive motion?
2 wheel driving or 4 wheel driving.
7.Application field?
construction, shipyard, industrial, airport, municipal garden or others.
