Help Center5300kg 12m Cherry Picker Manufactuer
Related Products
-
Runshare 12m Skylift for RentalUS$ 10,000 - 200,000MOQ: 1 Set -
14M Vertical Lift 48V BatteryUS$ 10,000 - 200,000MOQ: 1 Set
-
6780kg 14m Aerial Work PlatformUS$ 10,000 - 200,000MOQ: 1 Set
-
Runshare 14M Skylift Replaces Genie LiftUS$ 10,000 - 200,000MOQ: 1 Set
-
Runshare 14m Battery ManliftUS$ 10,000 - 200,000MOQ: 1 Set
Hunan Runshare Heavy Industry Co.,Ltd.
Best Service! Best Choice!
Product Specifications

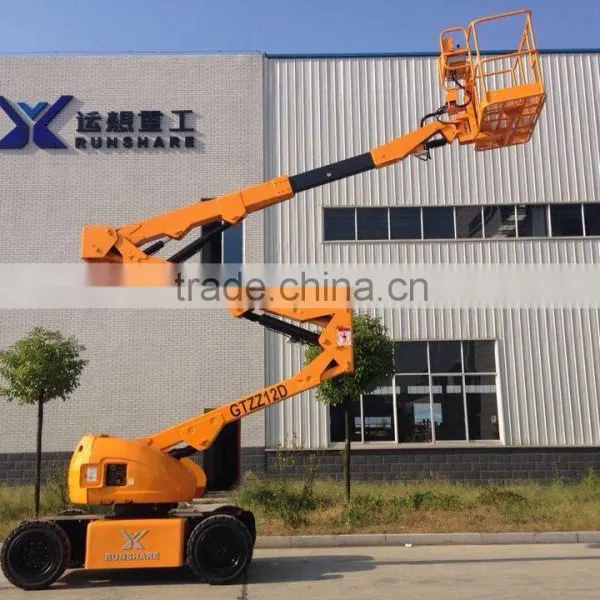

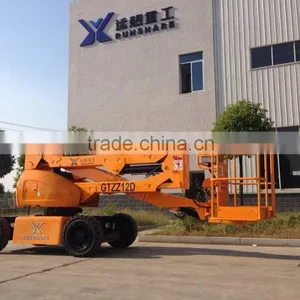

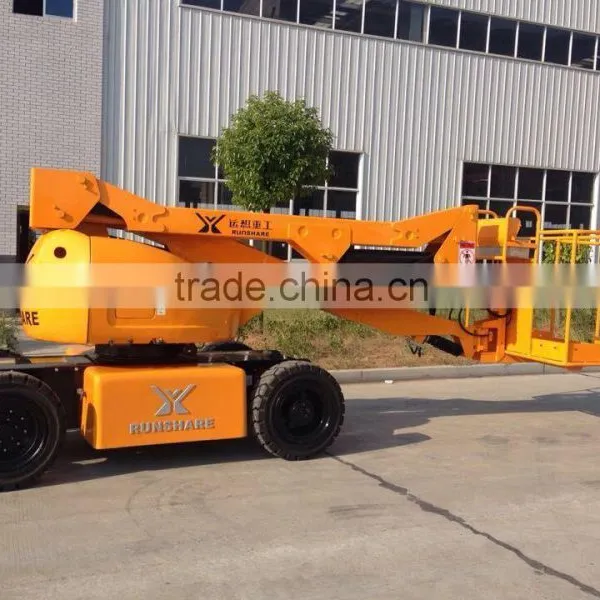

| Model | GTZZ12D | ||
| Working height maximum | 14m | ||
| Platform height maximum | 12m | ||
| Horizontal reach maximum | 8m | ||
| Crossing height maximum | 5m | ||
| Platform dimension | 1.1x0.65x1.13m | ||
| Length-stowed | 5.32m | ||
| Width | 1.75m | ||
| Height-stowed | 2m | ||
| Wheel Base | 2m | ||
| Ground clearance center | 0.2m | ||
| Lift capacity | 200kg | ||
| Turning radius | 2.16m | ||
| Turntable Swing | 355° | ||
| Speed of Turntable Swing | 0~0.8rpm | ||
| Leveling mode | Automatic | ||
| Platform rotation | 120° | ||
| Solid tire size: | 660*170 | ||
| Hydraulic oil tank capacity | 40L | ||
| Weight | 5300kg | ||
| Travel speed(stowed) | 3.2km/h | ||
| Travel speed(raised or extend ) | 0.8km/h | ||
| Grade ability | 25% | ||
| Drive and turn mode | 4×2×2 | ||
| Control voltage | 12V | ||
| Battery | 8X6/320 V/Ah | ||
| Charger | 48/40 V/A |
Configuration
| CONFIGURATION | |||
| Travel reducer | Dali from China | ||
| Travel motor | Dali from China | ||
| Battery | US from USA | ||
| Electromagnetism valve | Hydraforce from USA | ||
| Main control system | Cylindro from China | ||
| DC Motor Controller | Curtis from USA | ||
| Joystick | Danfoss from USA | ||
| Coulometer | Curtis from USA | ||
| Balance valve |
Rexroth from Germany, NEM from Italy, SANT from China |
||
Company Information
About Us
Runshare is the biggest manufacturer of aerial work platform in China. We can supply the telescopicboom, articulated boom and scissor platform from 5m to 44m.
Contact Us
ADD:Runshare industry park,Lingang new industrial Zone,Changsha, Hunan, China
Tel: 0086-18873007712
Contact person:Bryan,Yang
SKYPE:bryanyang2008
Why Choose Us
1.Runshare is real manufacturer engaged in research, development, manufacturing, sale and service of aerial work equipment from 4m to 44m.
2. We could help customer choose the right model specially..
3. Main elements are used world famous brand.
4. Provide timely delivery,Sales engineers are ready to solve all problem.
5. Provide spare parts, worksite installation guidance and training operation.
1.Presale service:Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
2.In sale service:We provide free guidance of installation and debugging and free training of operation,care and maintenance.
3.After-sale service:One year warranty service of whole machine and lifetime maintenance; regularly markets visits and freeguidance of whole machine's maintenance and reparations.
4.Quick responses:we have a complete service network, hotline (86-731-84939476) services for 24 hours and assist you to solve the problem in a short time.
5.Parts supply:we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
1.Delievery Time?
From 1 week to 1 month after we receive the order.
2.payments?
T/T and L/C, other kinds, pls contact with us.
3.MOQ?
1 set
4.Trade term?
FOB/CIF to your nearest seaports.
5.Power source?
Battery or Diesel engine.
6.Drive motion?
2 wheel driving or 4 wheel driving.
7.Application field?
construction, shipyard, industrial, airport, municipal garden or others.
