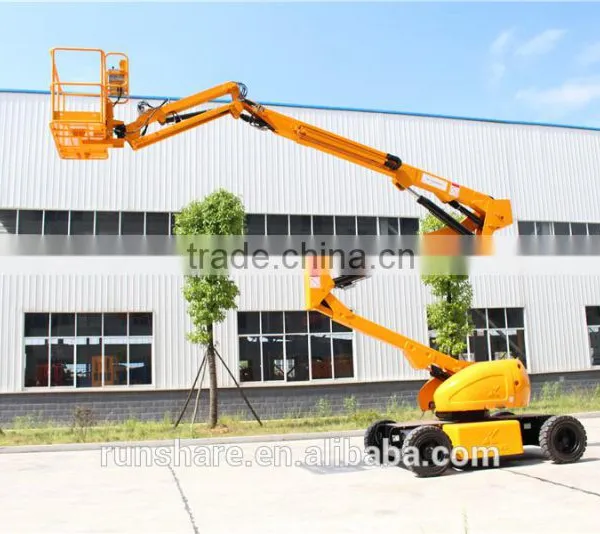

Help Center8550kg Weight 18m Aerial Superior Lift Platform
Related Products
-
18m Electrical Articulated Boom Lift TableUS$ 50,000 - 60,000MOQ: 1 Set -
High Quality 25m Aerial Work Platform for SaleUS$ 10,000 - 100,000MOQ: 1 Set
-
12months Warranty 18m Electrical Articulated Boom LiftUS$ 50,000 - 60,000MOQ: 1 Set
-
16m Gemel Type Aerial Work PlatformUS$ 10,000 - 200,000MOQ: 1 Set
-
16m Scaffoldings Aerial Work PlatformUS$ 10,000 - 200,000MOQ: 1 Set
Hunan Runshare Heavy Industry Co.,Ltd.
Best Service! Best Choice!
Product Specifications
| Model | GTZZ-18D | ||
| Working Height Maximum | 20m | ||
| Platform Height Maximum | 18m | ||
| Working radius maximum | 10.8m | ||
| Lift capacity | 230kg | ||
| Crossing height maximum | 9.2m | ||
| Length( stowed) | 8.1m | ||
| Width (stowed) | 2.38m | ||
| Height(stowed) | 2.38m | ||
| Wheel base | 2.6m | ||
| Ground clearance | 0.3m | ||
| Platform measurement | 1.53*0.76 | ||
| Tail swing | 0m | ||
| Turing radius Minimum | 5.2m | ||
| Travel speed(stowed) | 0.8km/h | ||
| Travel speed(raised or extended) | 5km/h | ||
| Grade ability | 25% | ||
| Solid tire | 33*12-20 | ||
| Swing speed | 0~0.8rpm | ||
| Turn table swing | 360°continuous | ||
| Platform leveling | Automatic | ||
| Platform rotation | 160° | ||
| Hydraulic tank volume | 70L | ||
| Drive and turn mode | 4*2*2 | ||
| Total weight | 8550kg | ||
| Control voltage | 24V | ||
| Travel electric motor | 6.5*2kw | ||
| Battery | 8*6/420V/Ah | ||
| Charger | 48/40 V/A |
Configuration
| CONFIGURATION | |||
| Travel reducer | OMONI from USA | ||
| Travel motor | SME from Italy | ||
| Travel motor controller | SME from Italy | ||
| Battery |
TROJAN from USA or US from USA |
||
| Electromagnetism valve | Hydraforce from USA | ||
| Main Controller | KSTECH from China | ||
| Joystick | Danfoss from USA | ||
| DC MOTOR | Keya from China | ||
| DC MOTOR Controller | Curtis from USA | ||
| Coulometer | Curtis from USA | ||
| Balance valve |
Rexroth from Germany NEM from Italy SANT from China |
||
Core technology
About Us
Runshare is the biggest manufacturer of aerial work platform in China. We can supply the telescopic boom, articulated boom and scissor platform from 5m to 44m.
Contact Us
ADD:Runshare industry park,Lingang new industrial Zone,Changsha, Hunan, China
Tel: 0086-18684738272
Contact person:Tina,Tan
SKYPE:fly02004721
Why Choose Us
1.Runshare is real manufacturer engaged in research, development, manufacturing, sale and service of aerial work equipment from 5m to 44m.
2.We could help customer choose the right model specially..
3.Main elements are used world famous brand.
4.Provide timely delivery,Sales engineers are ready to solve all problem.
5.Provide spare parts, worksite installation guidance and training operation.
1.Presale service:Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
2.In sale service:We provide free guidance of installation and debugging and free training of operation,care and maintenance.
3.After-sale service:One year warranty service of whole machine and lifetime maintenance; regularly markets visits and freeguidance of whole machine's maintenance and reparations.
4.Quick responses:we have a complete service network, hotline (86-731-84939476) services for 24 hours and assist you to solve the problem in a short time.
5.Parts supply:we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
1.Delievery Time?
From 1 week to 1 month after we receive the order.
2.payments?
T/T and L/C, other kinds, pls contact with us.
3.MOQ?
1 set
4.Trade term?
FOB/CIF to your nearest seaports.
5.Power source?
Battery or Diesel engine.
6.Drive motion?
2 wheel driving or 4 wheel driving.
7.Application field?
construction, shipyard, industrial, airport, municipal garden or others.
