Specifications
Best 30w fiber laser marking machine1.Germany IPG laser technology
2.Scanlab galvanometer
3.Electricity save

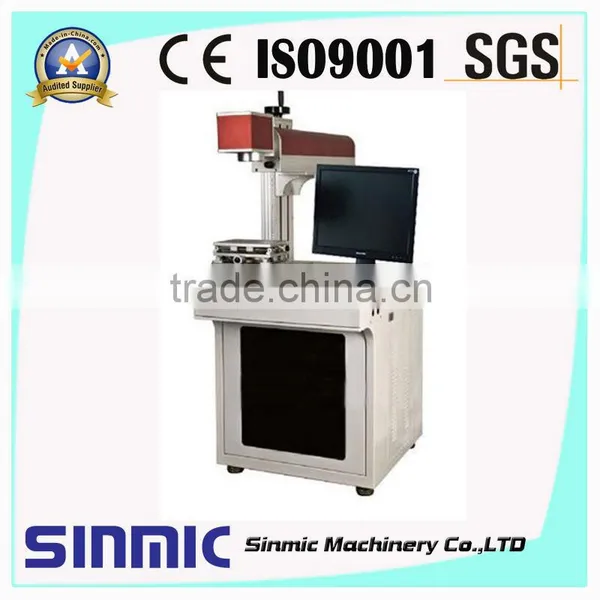

High speed 30w fiber laser marking machine
1. Feature of 30w fiber laser marking machine
1.fiber laser marking machine is the 3th-generation laser marking machine which is manufactured by the most advanced laser technology in current of the world.
2.The quality of laser beam is very good(near to the limit of diffraction,exporting TEM00 fundamental transverse mode, M2 near to 1,expanding angle of laser beam is only 1/4 of the diode laser marker),Therefore it is very suitable for delicate marking.
3.With high repeat frequency of the pulse,power output steadily,energy surge of single pulse is lower than 1%,BML-F can achieve high speed marking,and control the depth and shape of the facula .
4.The processing speed of BML-F is 2-3 times than the traditional marking machine.
5.Air cooling,the size of the machine is very small.
6.Long life,ultra-low power consumption,the conversion efficiency is more than 30%,the unit power of the machine is no more than 0.5kw!
7.With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about manual positioning.
2. Application material of 30w fiber laser marking machine
Fiber Laser Marking Machine apply to materials: metal and all kinds of nonmetal materials, high hardness alloy steel, oxide, electroplating vacuum plating, epoxy resin, printing ink, ABS, and other engineering plastic.
Fiber Laser Marking Machine apply for industry: Plastic keypad keys, components of digital product, electronic components, electrical appliances, jewelry, precision machinery, hardware accessories, glasses clocks and watches, qimo accessories, sanitary ware, communication products, medical devices, integrated circuit (IC), building materials, pipe materials, more suitable for high demand of .accuracy, speed and depth to the products.
3.Technical data:
Model |
S/L 10FI/20FI/30FI, |
Laser power |
10W/20W/30W |
Laser Wavelength |
1065±10nm |
Q-frequency |
20KHz~100KHz |
Divergence |
0.3mard |
Marking range |
100*100mm/200*200mm/300*300mm |
Minimum line width |
0.01mm |
Minimum character |
0.1mm |
Marking speed |
10000mm/s |
Marking depth |
0 ~0.5mm |
Engraving line speed |
≤7000mm/s |
Repeatability accuracy |
±0.001mm |
Beam quality |
M2:1.2~1.8 |
Marking Format |
Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency,etc. |
Graphic format supported |
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
working voltage |
220V±10%/50Hz/4A |
Unit power |
<0.5kw |
Use of the environment |
Clean and dust free or dust less |
Working condition:Humidity |
5%-75%,free of condensed water |
Laser module life |
>100000 hours |
Net weight |
125kg |
Packing size |
1810*660*13040mm |

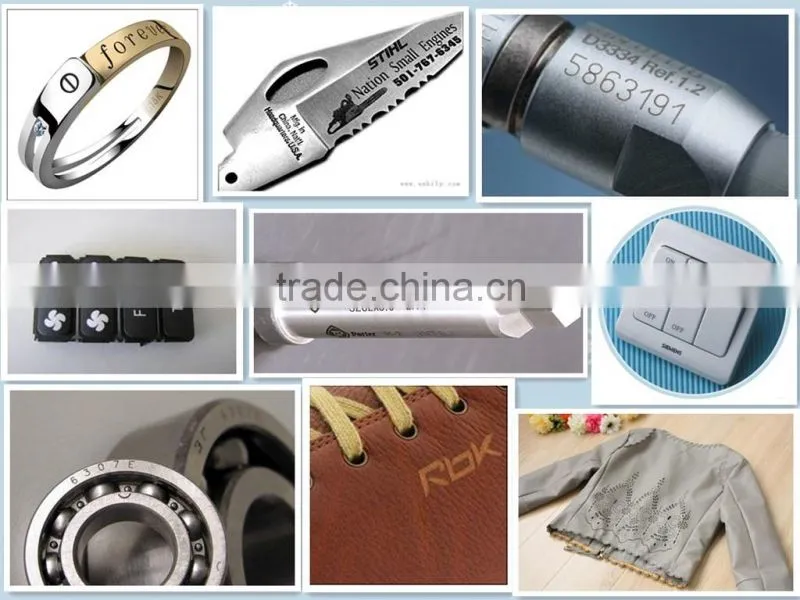

Samples show:
Machine parts:
Package & Delivery details:
Hot sale products:
Our factory:
After- Sale Service for fiber laser marking machine:
1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us.
and all of our machine with a 24 months quality guarantee period.
2> We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine.
We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
3> We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, Skype,telephone and fax.
4> Our engineer can make a door-to-door instruction training service at your local site.
If you have any other question or need please ask me .
