Sign instanbul 2015, we will be there on 10-13th September. If you will come, please visit us.

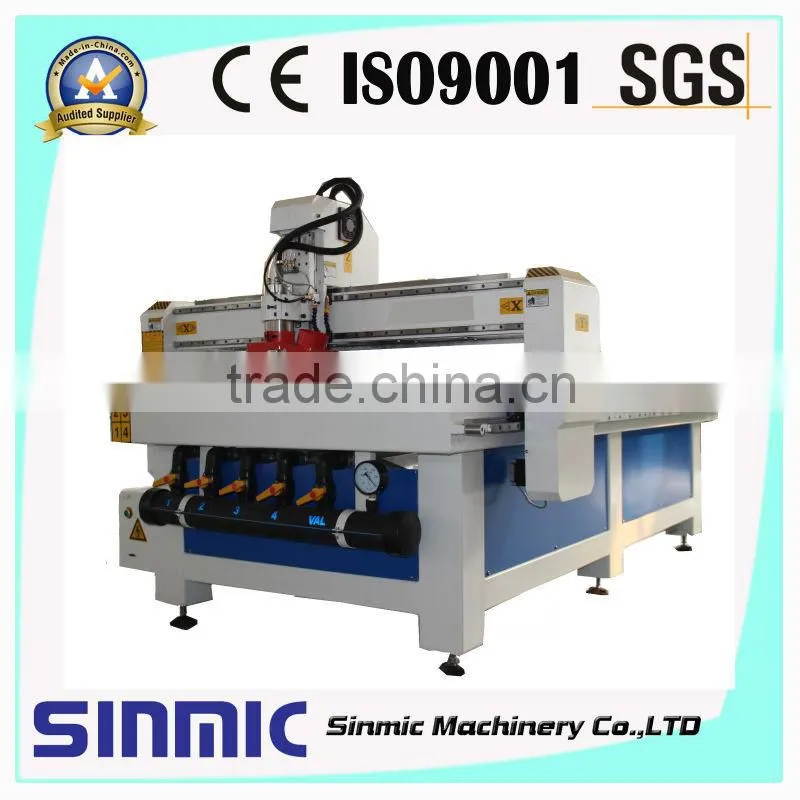

SINMIC advertise cnc router
1.Production description:
1.Integral frame, strong stiff, high intensity, non deformation under long time load.
2.Configured with constant power inverter driven system, spindle motor cooled by water, high cutting intensity, prolong lifetime of tools.
3.All axis adopt linear square guide rail, double row and four column ball slider, big bearing capacity, running smoothly.
4.Optimization of mechanical and electrical design, adopt most advanced professional controlling system and code format, processing with high speed and precision.
5.Automatic oil lubricating system, easy maintenance, prolong lifetime of transmitting parts
2.Application:
Woodworking: wood panel, three-dimensional wave board processing .screen, handicraft fan window processing. Cutting, engraving, routing, drilling on cabinet doors, solid wood door, complex wood door, Paint-free door.
Other Industry: make building models, wood mold, air wooden mold, propeller, automotive foam mold. Shaping three-dimensional surfaces such as violin, musical instruments and so on
Pattern carving, calligraphy tablet design and frame sculpture
3.Parameters:
| Number | Description | parameter |
| 1 | X,Y, Z working area | 1300*2500*250mm |
| 2 | Table size | 1330*3640mm |
| 3 | X, Y, Z travel positioning accuracy | ±0.03mm |
| 4 | X,Y, Z repositioning positioning accury | ±0.03mm |
| 5 | Table surface | Vacuum and T-slot combined |
| 6 | Frame | Steel tube structure |
| 7 | Drive system X-Y axis | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Drive system Z axis | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max power consumption | 4.5kw(without spindle) |
| 10 | Max velocity | 45000mm/min |
| 11 | Max working speed | 30000mm/min |
| 12 | Spindle power | 9kw |
| 13 | Spindle speed | 0-24000rmp |
| 14 | working motor | Servo Yaskawa |
| 15 | Working voltage | AC380V/50/60Hz,3PH |
| 16 | Command language | G code |
| 17 | Interface | USB |
| 18 | Operating system | Syntec control system |
| 19 | Flash memory | 256M |
| 20 | X-Y resolution | 0.03mm |
| 21 | Software | Type3UcancameV9 software (Option: Artcam software) |
| 22 | Running | Temperature:0 degree-45 degree |
| 23 | Paking size | 3750*2250*2100mm |
| 24 | Net weight | 1550KG |
| 25 | Gross weight | 1790KG |

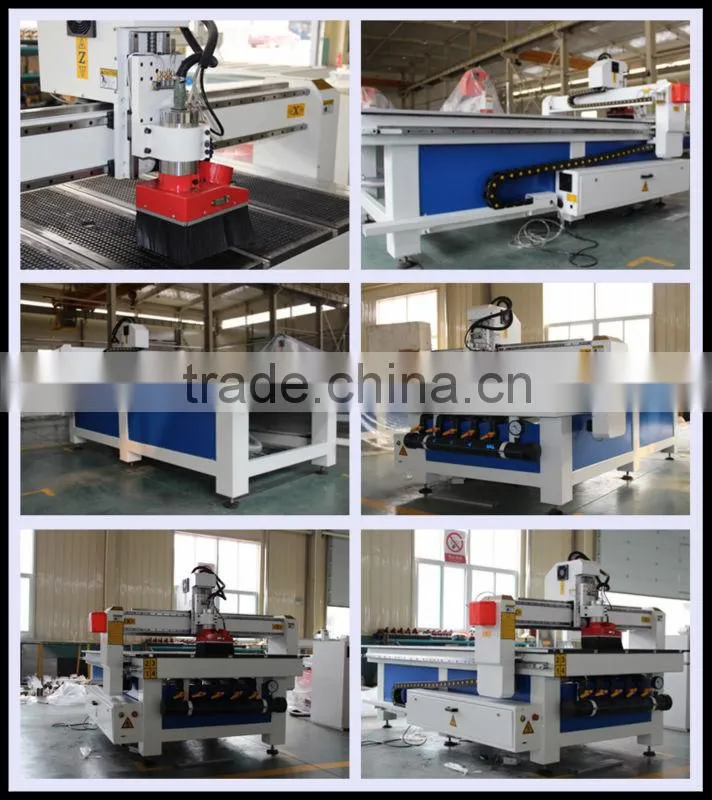

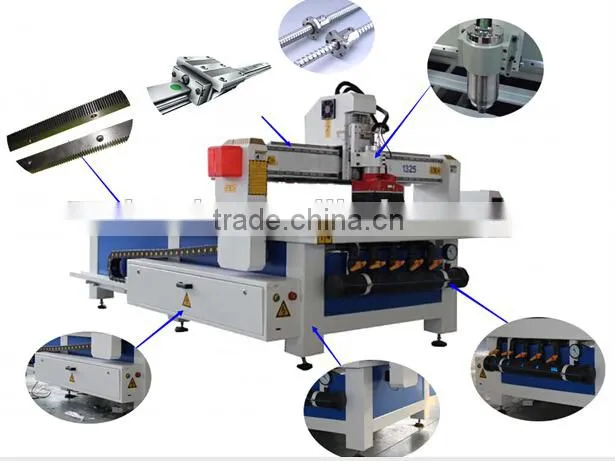

4.Machine details:
6.Factory&delivery:
7.Samples:
Sinmic Machinery was founded in 2005 as a machinery service company, primarily servicing, selling and installing CNC machinery including several brands of CNC routers.
Now Sinmic design and manufacture CNC routers and laser machine for many industries, enabling our customers to efficiently produce a wide range of products
8.FAQ:
9.After-sale service:
12 months for the whole machine.
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
Skype: alisa.sinmic, what'sapp/ mobile: 86 15054167386
